140F1039 DEVIREG 532

Category: Cold Room Spare Parts

140f1039 Devireg 532

Product Details

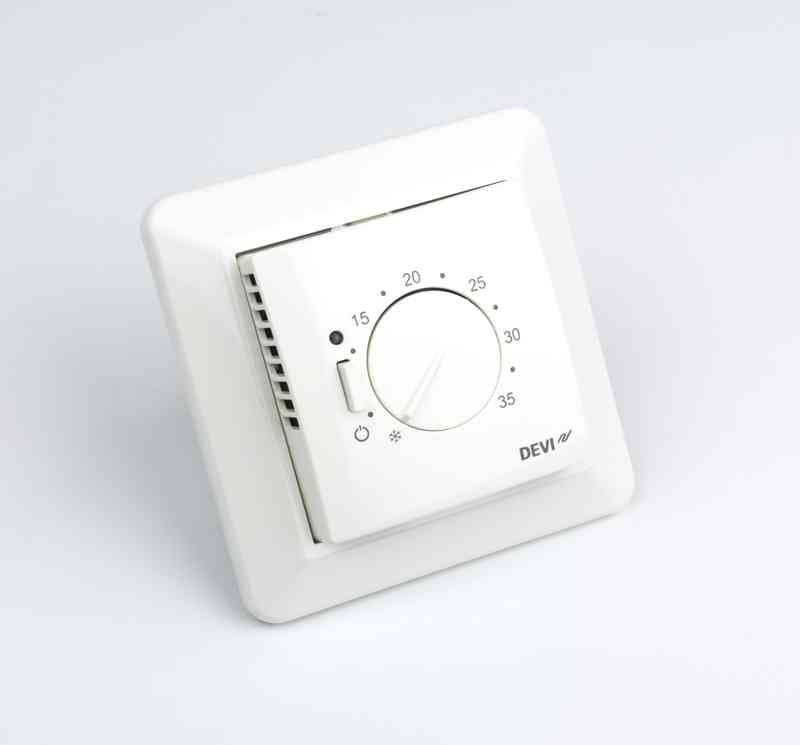

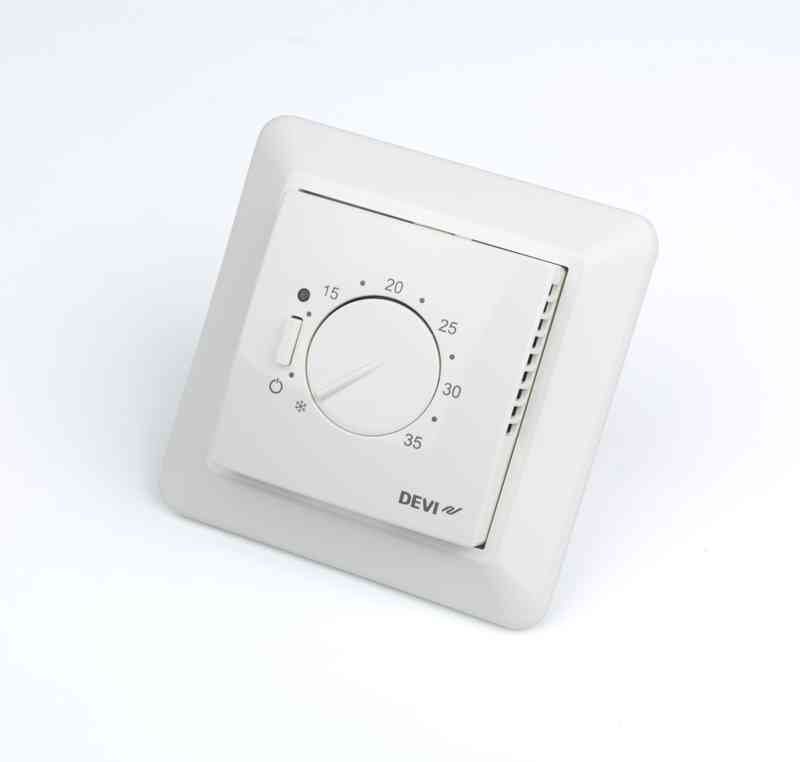

Thermostats, DEVIreg™ 532, JUSSI, Sensor type: Room + Floor, 15 A

140F1039

Temperature - floor [°C]: 20 - 50, Temperature - room [°C]: 5 - 35, Display type: No display, Application: Floor heating.

Product details :

Gross weight	0.232 Kg
Net weight	0.23 Kg
Volume	1.131 Liter
EAN	5703466209080
2-pole switch	No
Ambient temperature [°C] [max]	30 °C
Ambient temperature [°C] [min]	-10 °C
Application	Floor heating
Approval	CE
Ball pressure test temperature [°C]	75 °C
Certification company	NEMKO
Colour	White RAL 9010
Depth [mm]	36 mm
Description	DEVIreg™ 532, JUSSI
DIN mounting	No
Display (Yes/No)	No
Display type	No display
Element IP Class	31
Frost protection [°C]	5 °C
Height [mm]	85 mm
Hysteresis (+/-)	0.4
In scope of WEEE and contain batteries	No
Indicator type	LED
Inductive load	cos φ= 0.3 max 1A
Package depth [mm]	140 mm
Package height [mm]	85 mm
Package width [mm]	95 mm
Pollution degree	2
Product description	DEVIreg™ 532, JUSSI
Product group	Thermostats
REACH Candidate List substances	No
Regulation type	Hysteresis
Relay switch	2-pole
Resistive load max [A]	15 A
Scale Setting	5 - 35ºC
Sensor definition point [Ohm/°C]	15kΩ / 25°C
Sensor type	Room + Floor
Standby power consumption [W] [Max]	0.25 W
Storage temperature [°C] [Max]	65 °C
Storage temperature [°C] [Min]	-20 °C
Supply voltage [V] AC	230 V
Supply voltage [V] AC [max]	240 V
Supply voltage [V] AC [min]	220 V
Temperature - floor [°C] [Max]	50 °C
Temperature - floor [°C] [Min]	20 °C
Temperature - room [°C] [Max]	35 °C
Temperature - room [°C] [Min]	5 °C
Terminal cable size max [mm²]	2 x 2.5
Type	DEVIreg™ 53x series
UNSPSC CODE	41112209
Warranty [Year]	2
Warranty type	2-year product warranty
Width [mm]	85 mm
