140f1064 Devireg Touch

Product Details

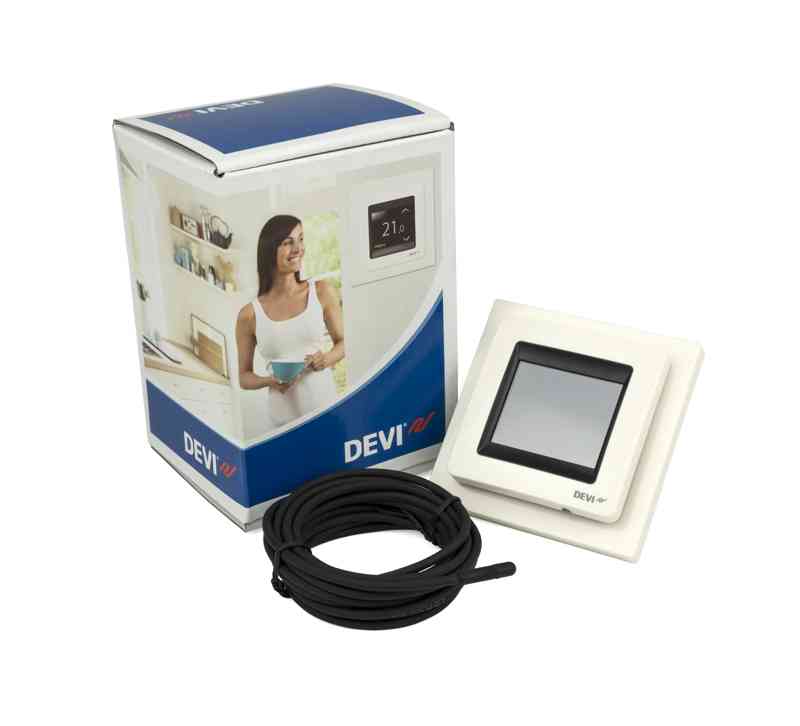

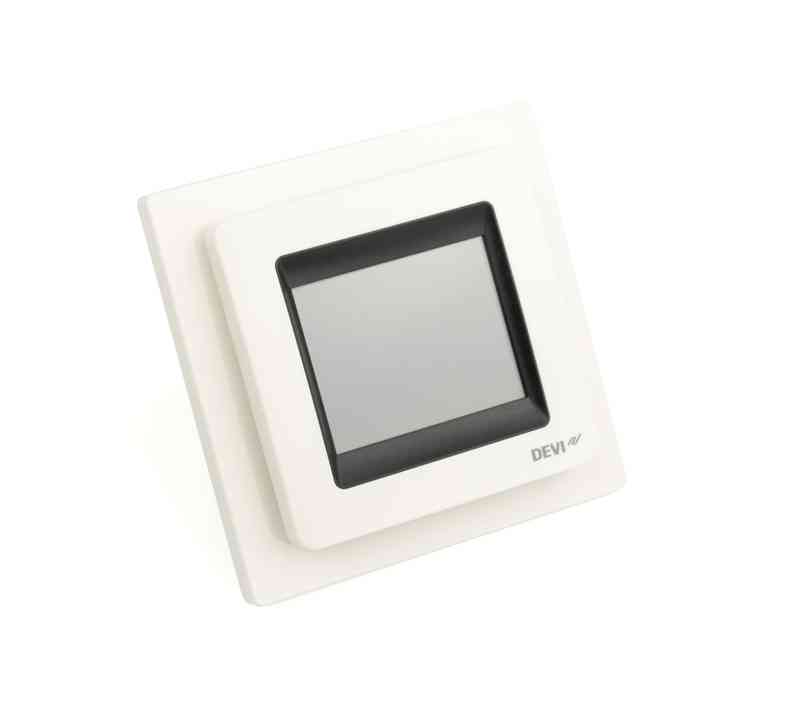

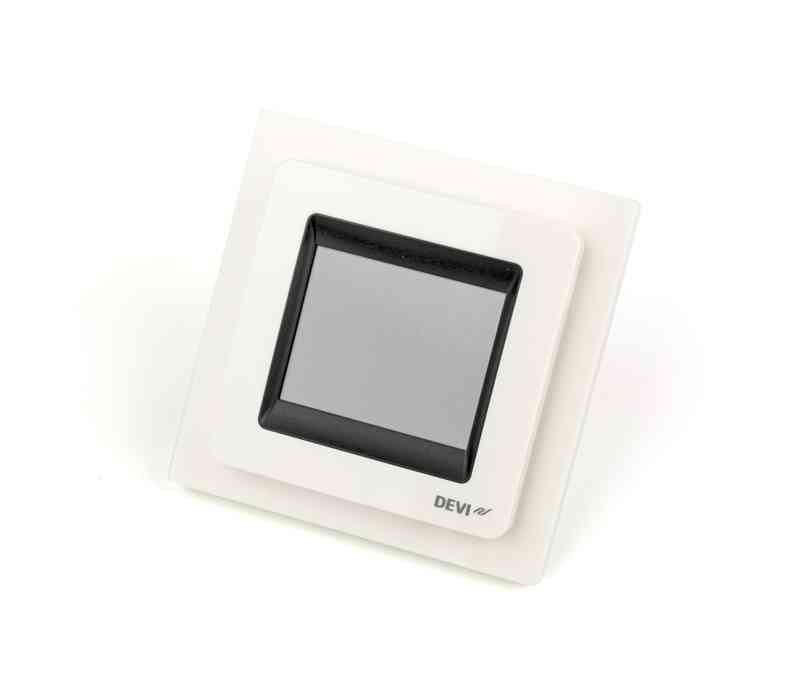

Thermostats, DEVIreg™ Touch Pure White, Sensor type: Room + Floor, 16 A

140F1064

Temperature - floor [°C]: 5 - 45, Temperature - room [°C]: 5 - 35, Display type: Touch screen, Application: Floor heating

Product details:

Gross weight0.242 Kg
Net weight0.24 Kg
Volume1.131 Liter
EAN5703466215135
1 Primary battery SUM weight Kg0
1 Primary battery weight Kg0
2-pole switchNo
Ambient temperature [°C] [max]30 °C
Ambient temperature [°C] [min]0 °C
ApplicationFloor heating
ApprovalUkrTEST
CE
Ball pressure test temperature [°C]75 °C
Battery backupYes
Battery qty1
Battery type or NameKnapcelle Manganese Lithium
Certification companyCE
EAC
Intertek Semko
UkrTEST
ColourWhite RAL 9010
Compatible foreign sensor typeYes
Compatible frame systemYes
Depth [mm]24 mm
DescriptionDEVIreg™ Touch Design Frame white
DIN mountingNo
Display (Yes/No)Yes
Display typeTouch screen
Element IP Class21
Frost protection [°C]5 °C
Height [mm]85 mm
In scope of WEEE and contain batteriesYes
Inductive loadcos φ= 0.3 max 1A
Package depth [mm]140 mm
Package height [mm]85 mm
Package width [mm]95 mm
Pollution degree2
Product descriptionDEVIreg™ Touch Pure White
Product groupThermostats
REACH Candidate List substancesNo
Regulation typePWM
Relay switch1-pole
Resistive load max [A]16 A
Sensor definition point [Ohm/°C]15kΩ / 25°C
Sensor typeRoom + Floor
Software classA
Standby power consumption [W] [Max]0.4 W
Storage temperature [°C] [Max]65 °C
Storage temperature [°C] [Min]-20 °C
Supply voltage [V] AC230 V
Supply voltage [V] AC [max]240 V
Supply voltage [V] AC [min]220 V
Temperature - floor [°C] [Max]45 °C
Temperature - floor [°C] [Min]5 °C
Temperature - room [°C] [Max]35 °C
Temperature - room [°C] [Min]5 °C
Temperature limiter [°C] [Max]45 °C
Temperature limiter [°C] [Min]5 °C
Temperature max. limiter [°C] [Max]35 °C
Temperature max. limiter [°C] [Min]20 °C
Temperature min. limiter [°C] [Max]35 °C
Temperature min. limiter [°C] [Min]10 °C
Terminal cable size max [mm²]2 x 2.5
Thermostat IP Class21
TypeDEVIreg™ Touch
UNSPSC CODE41112209
Warranty [Year]5
Warranty type5-year product warranty
Weight per battery0 g
Width [mm]85 mm
