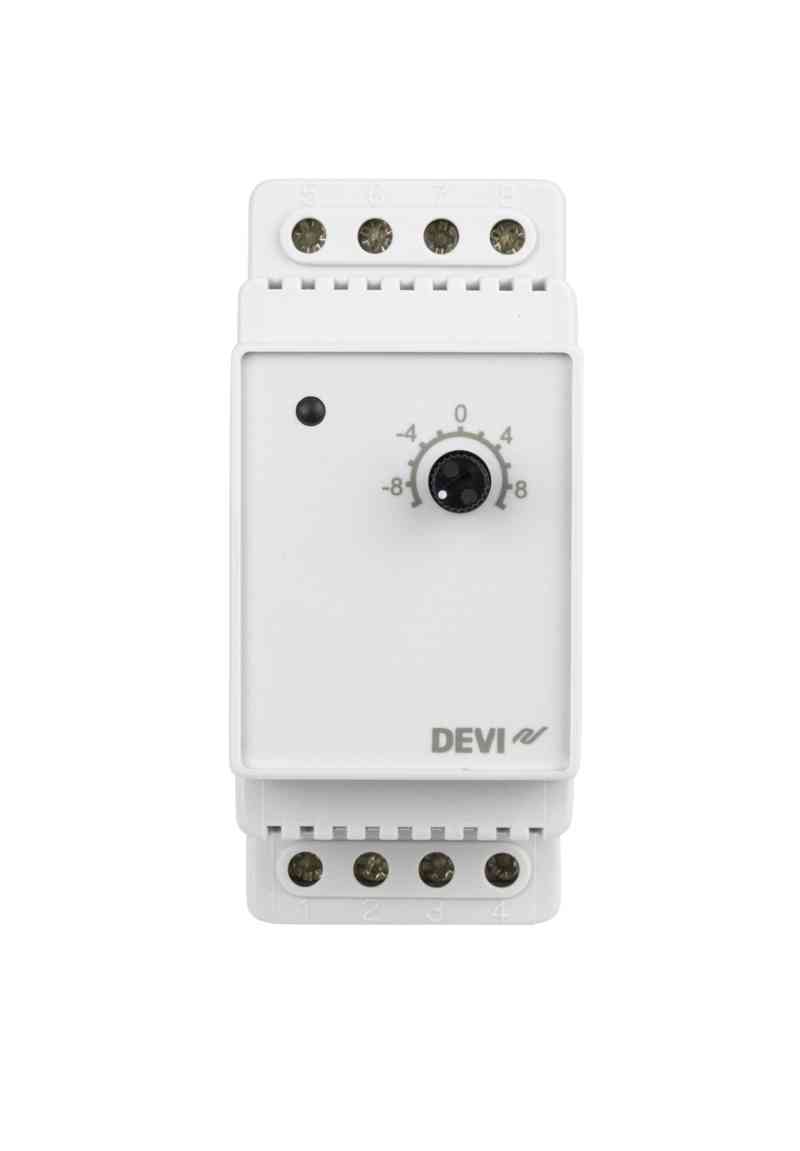

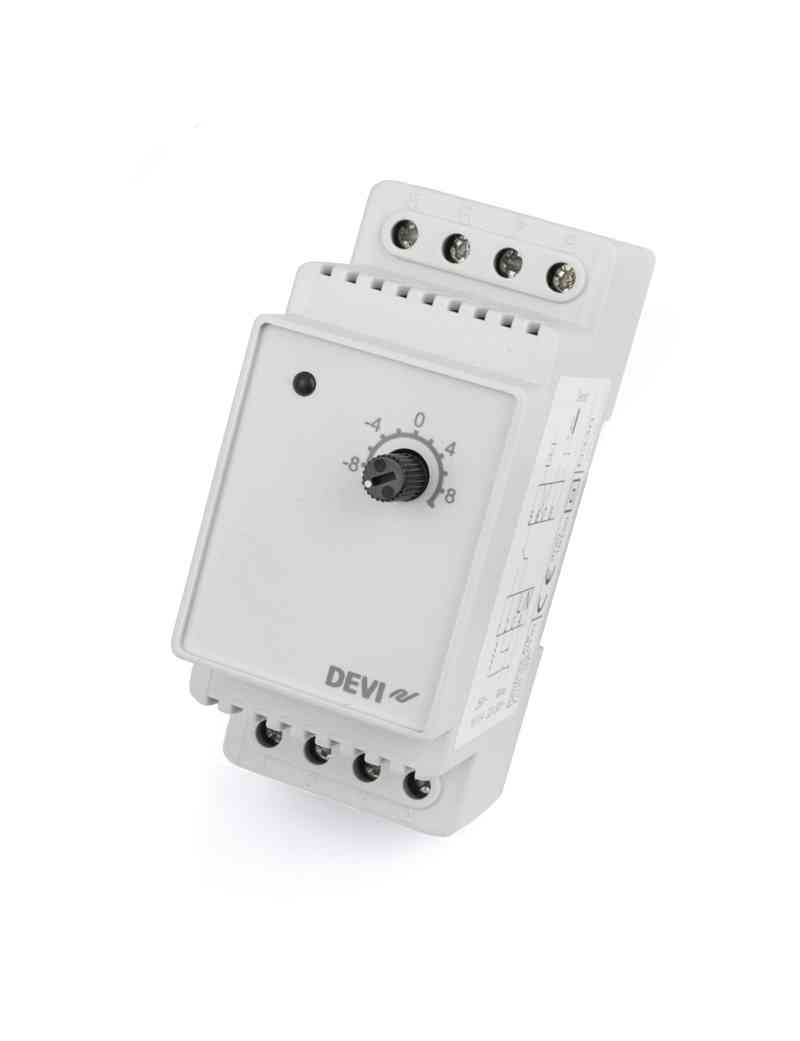

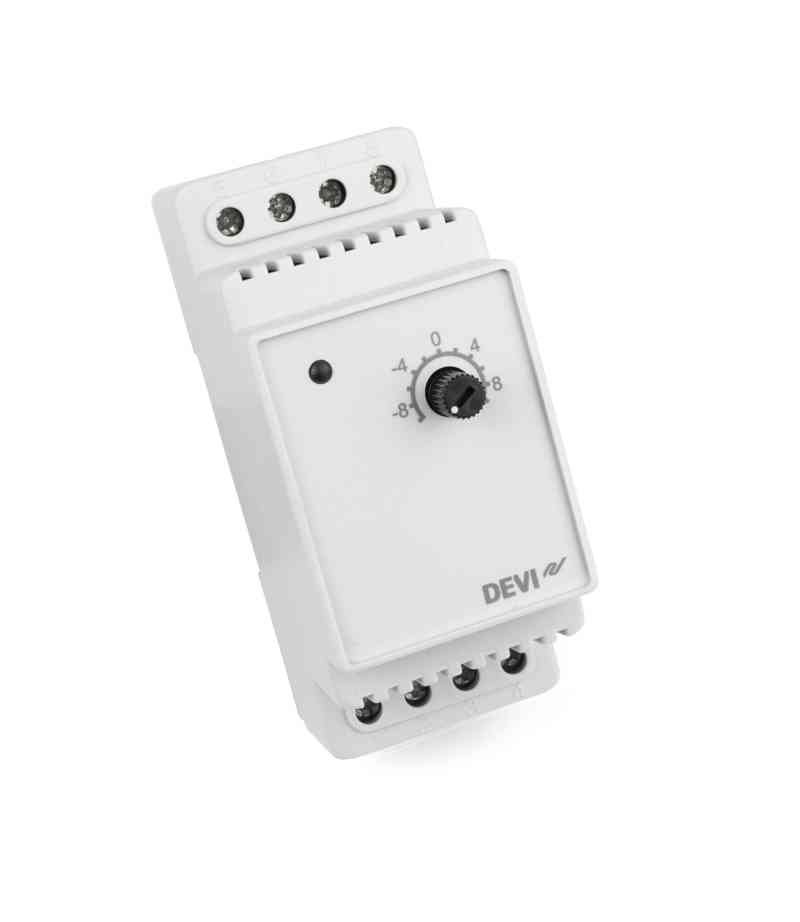

140f1070 Thermostat 330

Product Details

Thermostats, DEVIreg™ 330, Sensor type: Wire, 16 A

140F1070

Temperature setting range [°C]: -10 - 10, Display type: No display, Application: Asphalt ice and snow melting; Roof frost protection; Vineyard frost protection; Cold store; Ground ice and snow melting; Pipe / tank frost protection; Sport fields.

Product details :



Gross weight0.303 Kg
Net weight0.3 Kg
Volume1.131 Liter
EAN5703466209219
2-pole switchNo
Ambient temperature [°C] [max]50 °C
Ambient temperature [°C] [min]-10 °C
ApplicationAsphalt ice and snow melting
Cold store
Ground ice and snow melting
Pipe / tank frost protection
Roof frost protection
Sport fields
Vineyard frost protection
ApprovalCE
Ball pressure test temperature [°C]75 °C
Certification companyNEMKO
ColourWhite RAL 9010
Depth [mm]58 mm
DescriptionDEVIreg™ 330 -10+10°
DIN mountingYes
Display typeNo display
Element IP Class20
Height [mm]86 mm
Hysteresis (+/-)0.2
In scope of WEEE and contain batteriesNo
Indicator typeLED
Inductive loadcos φ= 0.3 max 1A
Package depth [mm]140 mm
Package height [mm]85 mm
Package width [mm]95 mm
Pollution degree2
Product descriptionDEVIreg™ 330
Product groupThermostats
REACH Candidate List substancesNo
Regulation typeHysteresis
Relay switch1-pole
Resistive load max [A]16 A
Scale Setting-10 +10ºC
Sensor definition point [Ohm/°C]15kΩ / 25°C
Sensor typeWire
Standby power consumption [W] [Max]0.25 W
Storage temperature [°C] [Max]65 °C
Storage temperature [°C] [Min]-20 °C
Supply voltage [V] AC230 V
Supply voltage [V] AC [max]240 V
Supply voltage [V] AC [min]220 V
Temperature setting range [°C] [Max]10 °C
Temperature setting range [°C] [Min]-10 °C
Terminal cable size max [mm²]2 x 2.5
TypeDEVIreg™ 330 series
UNSPSC CODE41112209
Warranty [Year]2
Warranty type2-year product warranty
Width [mm]36 mm
