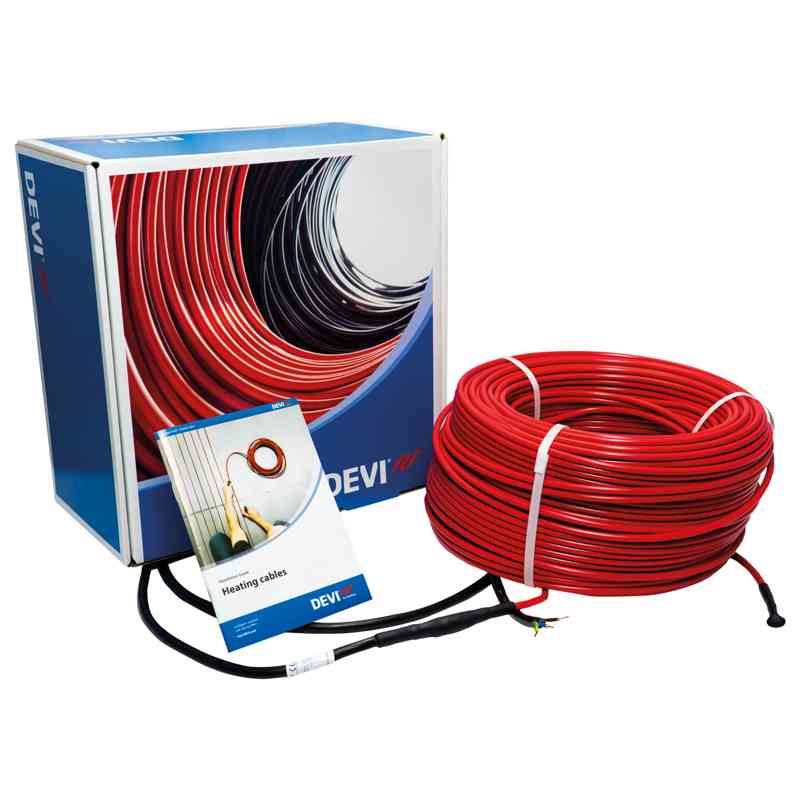

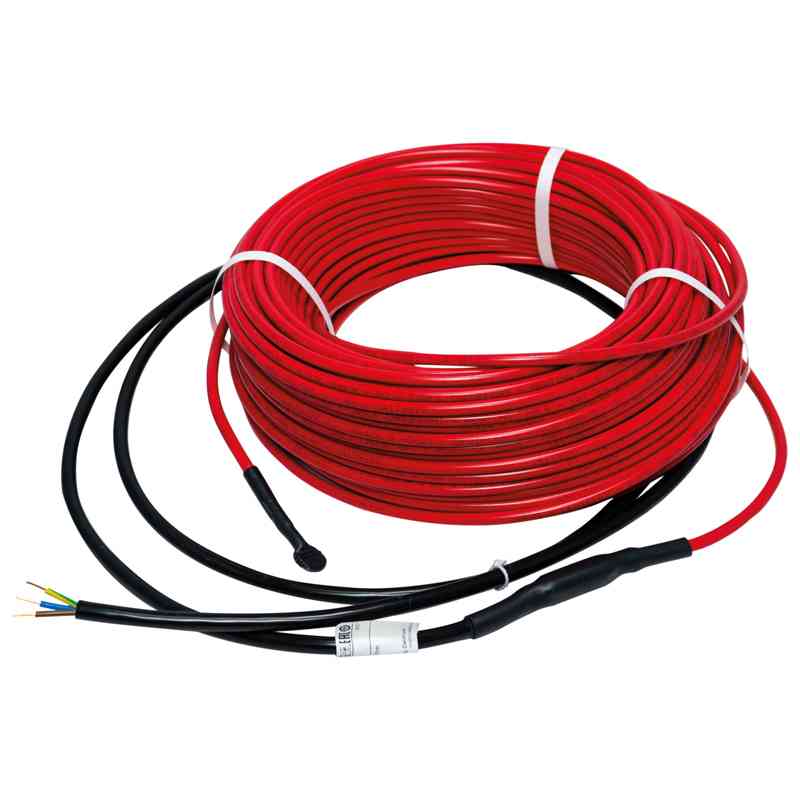

140f1242 Deviflex 18t 820w 230v 44m

Product Details

Heating Cables, DEVIflex™ 18T, 18 W/m, 44.00 m, Supply voltage [V] AC: 230

140F1242

Cable type: Twin conductor, Product version: Ready-made, Heating principle: Serial resistive, Application: Cold store; Pipe / tank frost protection; Sport fields; Floor heating.

Product details :



Gross weight3.199 Kg
Net weight3.167 Kg
Volume13.708 Liter
EAN5703466223789
ApplicationPipe / tank frost protection
Floor heating
Cold store
Sport fields
ApprovalCE
UkrTEST
EAC
Bending diameter [mm] [Min]42 mm
Cable diameter [mm]6.9 mm
Cable length [m]44 m
Cable on drumNo
Cable output [W/m]18 W/m
Cable resistance [Ohm]64.7
Cable screenAlufoil 100%
Cable typeTwin conductor
Certification companyIntertek Semko
UkrTEST
Cold leadYes
Cold lead conductor quantity3
Cold lead length [m]2.3 m
Cold lead quantity1
Cold lead size [mm²]1.5 mm²
Cold lead typeDTCL
Conductor insulationXLPE
Cut to lengthNo
Deformation strength [N]1500 N
DescriptionDEVIflex 18T 820W 230V 44m
Element IP ClassIPX7
Flame retardantYes
Heating output [W]820 W
Heating principleSerial resistive
In scope of WEEE and contain batteriesNo
Installation temperature [°C] [Min]-5 °C
Lead freeYes
Non operating temperature [°C] [Max]90 °C
Operating temperature [°C] [max]60 °C
Outer sheathPVC
Outer sheath colourRed
Package depth [mm]386 mm
Package height [mm]92 mm
Package width [mm]386 mm
Product groupHeating Cables
Product versionReady-made
Pulling strength [N]500 N
Set accessoriesNo
Supply voltage [V] AC230 V
TypeDEVIflex™ 18T
UNSPSC CODE26121601
UV ProtectedNo
Warranty [Year]20
Warranty type20-year full service warranty
