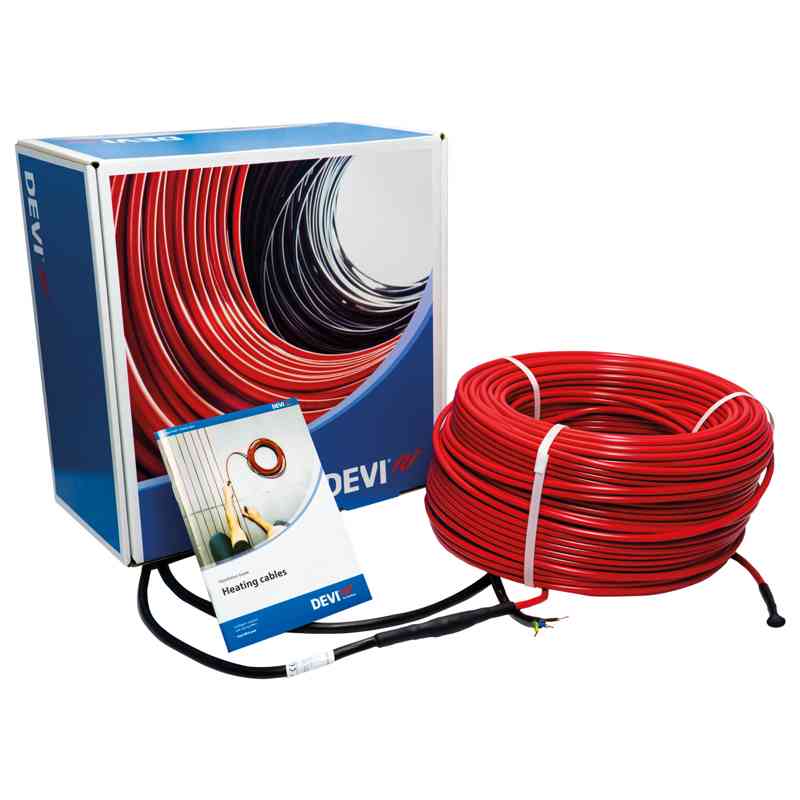

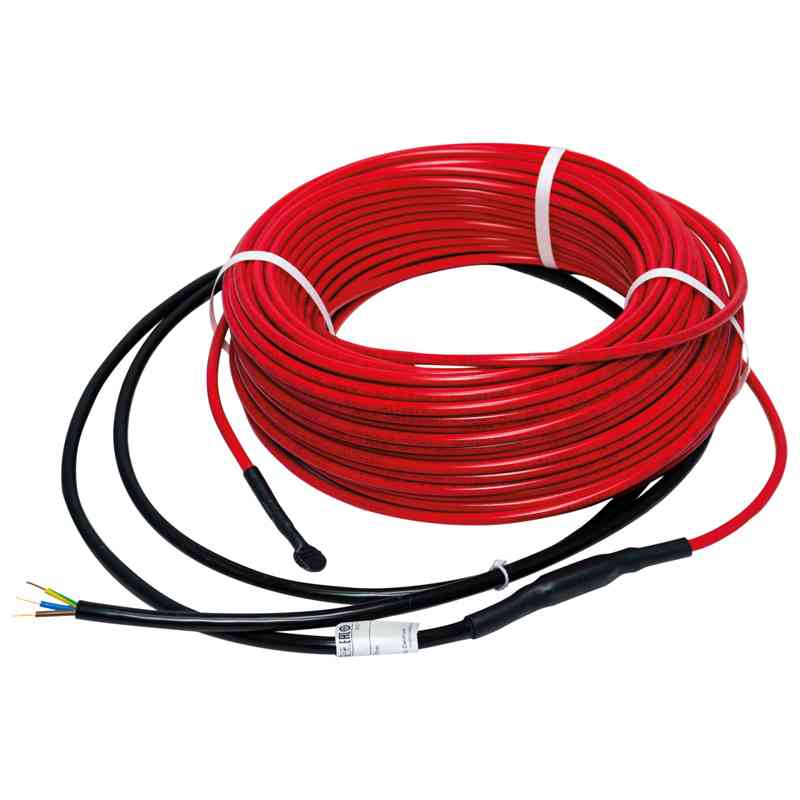

140F1246 DEVIFLEX 18T 1340W 230V 74M

Category: Cold Room Spare Parts

140f1246 Deviflex 18t 1340w 230v 74m

Product Details

Heating Cables, DEVIflex™ 18T, 18 W/m, 74.00 m, Supply voltage [V] AC: 230

140F1246

Cable type: Twin conductor, Product version: Ready-made, Heating principle: Serial resistive, Application: Cold store; Pipe / tank frost protection; Sport fields; Floor heating

Product details :

Gross weight	4.919 Kg
Net weight	4.87 Kg
Volume	21.157 Liter
EAN	5703466223826
Application	Pipe / tank frost protection Floor heating Cold store Sport fields
Approval	CE UkrTEST EAC
Bending diameter [mm] [Min]	42 mm
Cable diameter [mm]	6.9 mm
Cable length [m]	74 m
Cable on drum	No
Cable output [W/m]	18 W/m
Cable resistance [Ohm]	39.5
Cable screen	Alufoil 100%
Cable type	Twin conductor
Certification company	Intertek Semko UkrTEST
Cold lead	Yes
Cold lead conductor quantity	3
Cold lead length [m]	2.3 m
Cold lead quantity	1
Cold lead size [mm²]	1.5 mm²
Cold lead type	DTCL
Conductor insulation	XLPE
Cut to length	No
Deformation strength [N]	1500 N
Description	DEVIflex 18T 1340W 230V 74m
Element IP Class	IPX7
Flame retardant	Yes
Heating output [W]	1340 W
Heating principle	Serial resistive
In scope of WEEE and contain batteries	No
Installation temperature [°C] [Min]	-5 °C
Lead free	Yes
Non operating temperature [°C] [Max]	90 °C
Operating temperature [°C] [max]	60 °C
Outer sheath	PVC
Outer sheath colour	Red
Package depth [mm]	380 mm
Package height [mm]	120 mm
Package width [mm]	380 mm
Product group	Heating Cables
Product version	Ready-made
Pulling strength [N]	500 N
Set accessories	No
Supply voltage [V] AC	230 V
Type	DEVIflex™ 18T
UNSPSC CODE	26121601
UV Protected	No
Warranty [Year]	20
Warranty type	20-year full service warranty
