140f1248 Deviflex 18t 1625w 230v 90m

Product Details

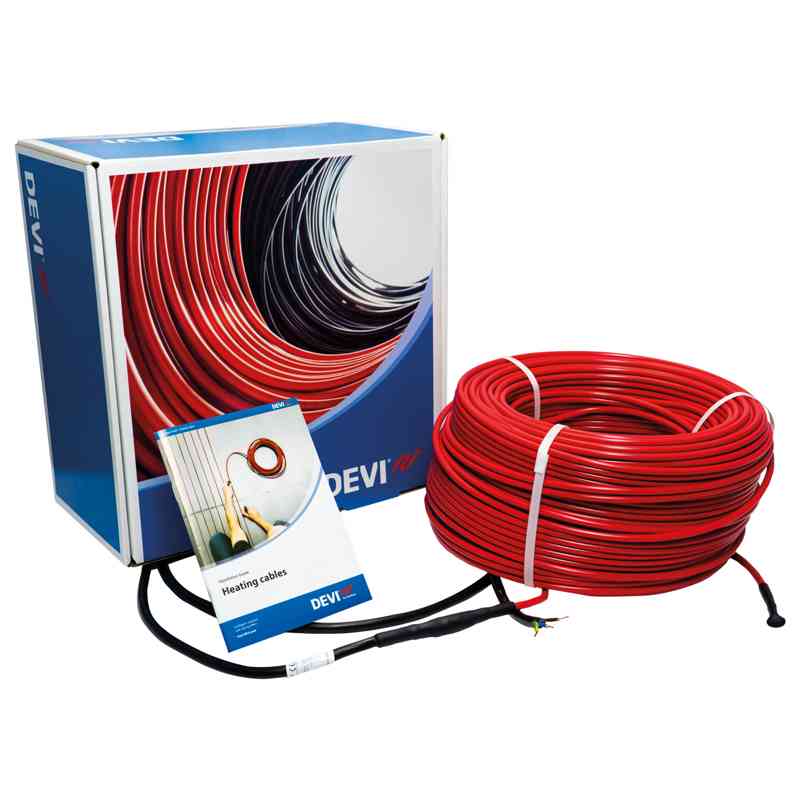

Heating Cables, DEVIflex™ 18T, 18 W/m, 90.00 m, Supply voltage [V] AC: 230

140F1248

Cable type: Twin conductor, Product version: Ready-made, Heating principle: Serial resistive, Application: Cold store; Pipe / tank frost protection; Sport fields; Floor heating

Product details :



Gross weight 5.717 Kg
Net weight 5.66 Kg
Volume 21.157 Liter
EAN 5703466223840
Application Pipe / tank frost protection
Floor heating
Cold store
Sport fields
Approval CE
UkrTEST
EAC
Bending diameter [mm] [Min] 42 mm
Cable diameter [mm]6.9 mm
Cable length [m]90 m
Cable on drumNo
Cable output [W/m]18 W/m
Cable resistance [Ohm]32.6
Cable screenAlufoil 100%
Cable typeTwin conductor
Certification companyIntertek Semko
UkrTEST
Cold leadYes
Cold lead conductor quantity3
Cold lead length [m]2.3 m
Cold lead quantity1
Cold lead size [mm²]1.5 mm²
Cold lead typeDTCL
Conductor insulationXLPE
Cut to lengthNo
Deformation strength [N]1500 N
DescriptionDEVIflex 18T 1625W 230V 90m
Element IP ClassIPX7
Flame retardantYes
Heating output [W]1625 W
Heating principleSerial resistive
In scope of WEEE and contain batteriesNo
Installation temperature [°C] [Min]-5 °C
Lead freeYes
Non operating temperature [°C] [Max]90 °C
Operating temperature [°C] [max]60 °C
Outer sheathPVC
Outer sheath colourRed
Package depth [mm]380 mm
Package height [mm]120 mm
Package width [mm]380 mm
Product groupHeating Cables
Product versionReady-made
Pulling strength [N]500 N
Set accessoriesNo
Supply voltage [V] AC230 V
TypeDEVIflex™ 18T
UNSPSC CODE26121601
UV ProtectedNo
Warranty [Year]20
Warranty type20-year full service warranty
