140f1252 Deviflex 18t 2775w 230v 155m

Category: Cold Room Spare Parts
140f1252 Deviflex 18t 2775w 230v 155m


Product Details

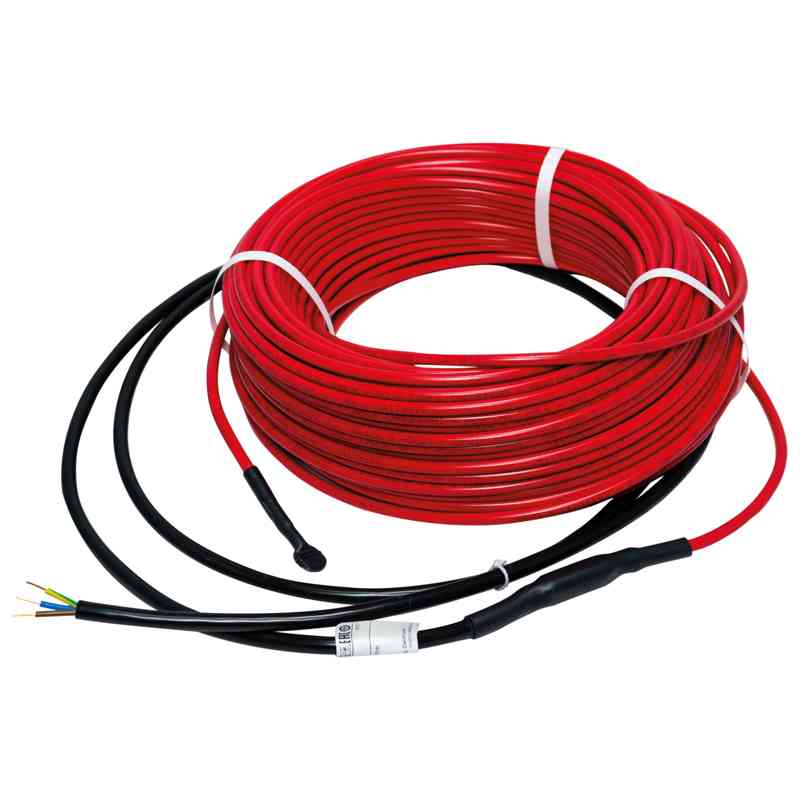

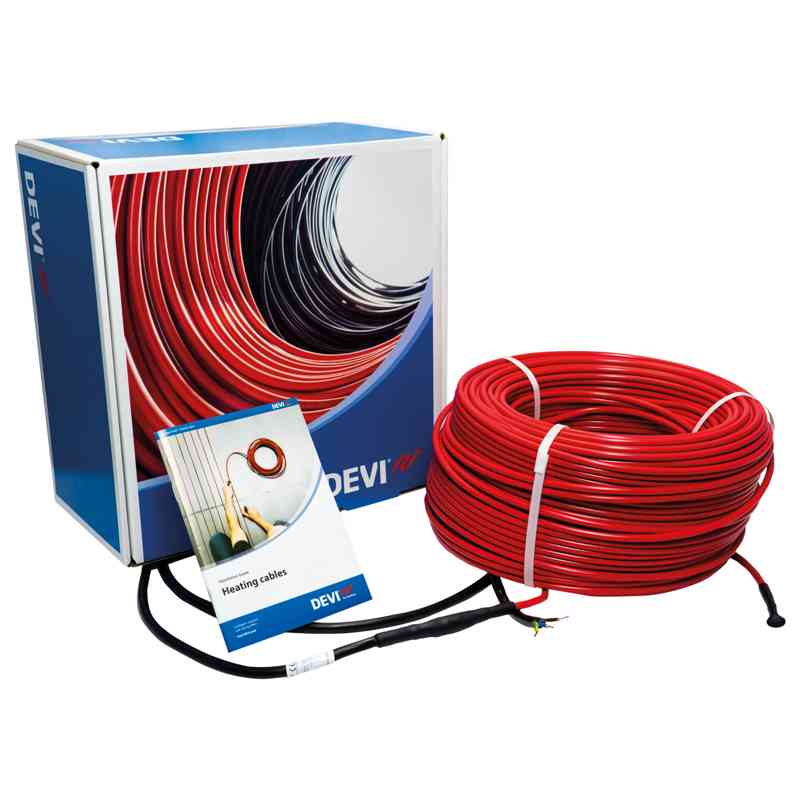

Heating Cables, DEVIflex™ 18T, 18 W/m, 155.00 m, Supply voltage [V] AC: 230

140F1252

Cable type: Twin conductor, Product version: Ready-made, Heating principle: Serial resistive, Application: Cold store; Pipe / tank frost protection; Sport fields; Floor heating

Product Details:

Gross weight :9.555 Kg
Net weight :9.46 Kg
Volume :30.842 Liter
EAN :5703466223888
Application :
  • Pipe / tank frost protection
  • Floor heating
  • Cold store
  • Sport fields
Approval :
  • CE
  • UkrTEST
  • EAC
Bending diameter [mm] [Min] :42 mm
Cable diameter [mm] :6.9 mm
Cable length [m] :155 m
Cable on drum :No
Cable output [W/m] :18 W/m
Cable resistance [Ohm] :19.1
Cable screen :Alufoil 100%
Cable type :Twin conductor
Certification company :Intertek Semko
UkrTEST
Cold lead :Yes
Cold lead conductor quantity :3
Cold lead length [m] :2.3 m
Cold lead quantity :1
Cold lead size [mm²] :2.5 mm²
Cold lead type :DTCL
Conductor insulation :XLPE
Cut to length :No
Deformation strength [N] :1500 N
Description :DEVIflex 18T 2775W 230V 155m
Element IP Class :IPX7
Flame retardant :Yes
Heating output [W] :2775 W
Heating principle :Serial resistive
In scope of WEEE and contain batteries :No
Installation temperature [°C] [Min] :                                              -5 °C
Lead free :Yes
Non operating temperature [°C] [Max] :                           90 °C
Operating temperature [°C] [max] :60 °C
Outer sheath :PVC
Outer sheath colour :Red
Package depth [mm] :386 mm
Package height [mm] :207 mm
Package width [mm] :386 mm
Product group :Heating Cables
Product version :Ready-made
Pulling strength [N] :500 N
Set accessories :No
Supply voltage [V] AC :230 V
Type :DEVIflex™ 18T
UNSPSC CODE :26121601
UV Protected :No
Warranty [Year] :20
Warranty type :20-year full service warranty
