Deviflex™ 10t Heating Cable 10t 131w 230v 15m

  1. Home
  2. Cold Room Spare Parts
  3. Floor Heating
  4. Deviflex™ 10t Heating Cable 10t 131w 230v 15m
Category: Cold Room Spare Parts

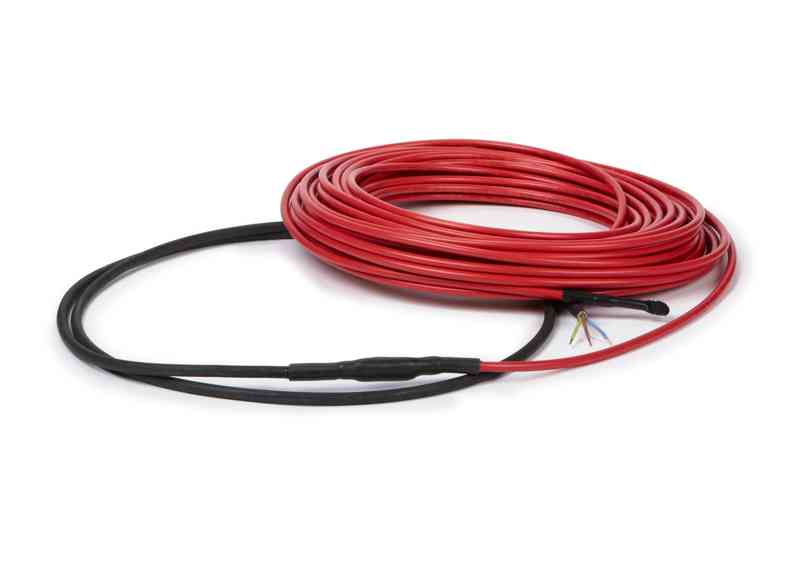

Deviflex™ 10t Heating Cable 10t 131w 230v 15m

Product Details

Product NameDEVIflex™ 10T
Gross Weight1.667 Kg
Net Weight1.65 Kg
Volume8.046 Liter
Description                 DEVIflex 10T 135W 230V 15m



BRANDS : DEVIflex™





Key Specifications:

SpecificationDetails
Heating Output10 W/m
Cable Length15.00 m
Supply Voltage (AC)230 V
Product VersionReady-made
Heating PrincipleSerial resistive
ApplicationCold store; Pipe/tank frost protection; Sport fields; Floor heating
Bending Diameter (Min)42 mm
Cable Diameter6.9 mm
Cable on DrumNo
Cable Output10 W/m
Cable Resistance403.5 Ohm
Cable ScreenAlufoil 100%
Certification CompanyIntertek Semko, UkrTEST
Cold LeadYes
Cold Lead Conductor Quantity3
Cold Lead Length2.3 m
Cold Lead Quantity1
Cold Lead Size (mm²)1.5 mm²
Cold Lead TypeDTCL
Conductor InsulationXLPE
Cut to LengthNo
Deformation Strength1500 N
Element IP ClassIPX7
Flame RetardantYes
In Scope of WEEE and Contain Batteries                    No
Installation Temperature (Min)-5 °C
Lead FreeYes
Non-Operating Temperature (Max)90 °C
Operating Temperature (Max)75 °C
Outer SheathPVC
Outer Sheath ColorRed
Package Depth (mm)386 mm
Package Height (mm)54 mm
Package Width (mm)386 mm
Product GroupHeating Cables
UNSPSC CODE26121601
UV ProtectedNo
Warranty (Year)20
Warranty Type20-year full service warranty




Additional Informations
  • Contact us for more information
    Our sales team will provide you with information and suggestion for selecting the right item.
