Deviflex™ 10t Heating Cable 10t 365w 230v 35m

  1. Home
  2. Cold Room Spare Parts
  3. Floor Heating
  4. Deviflex™ 10t Heating Cable 10t 365w 230v 35m
Category: Cold Room Spare Parts

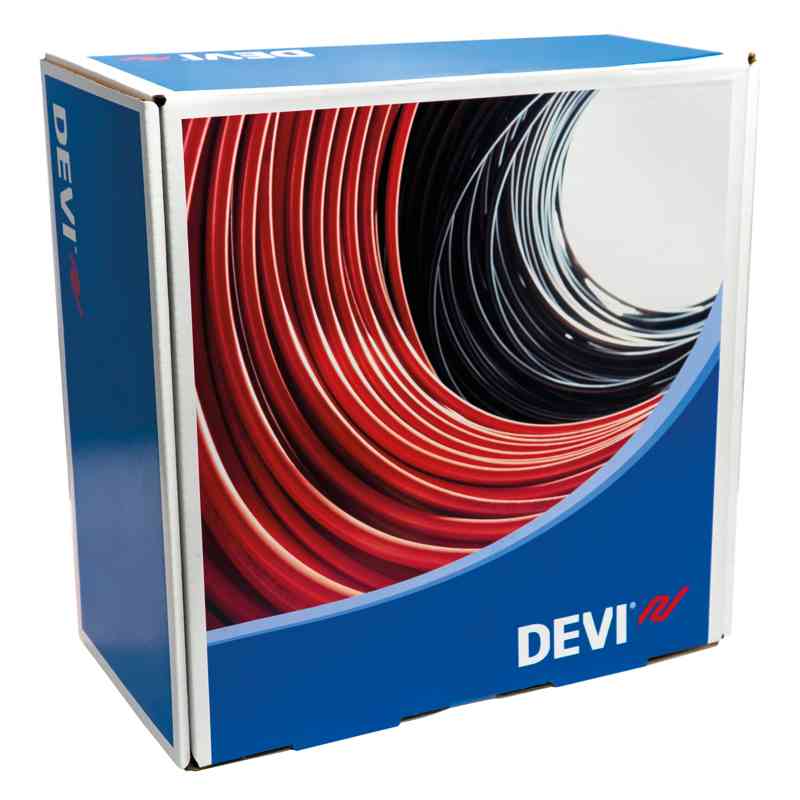

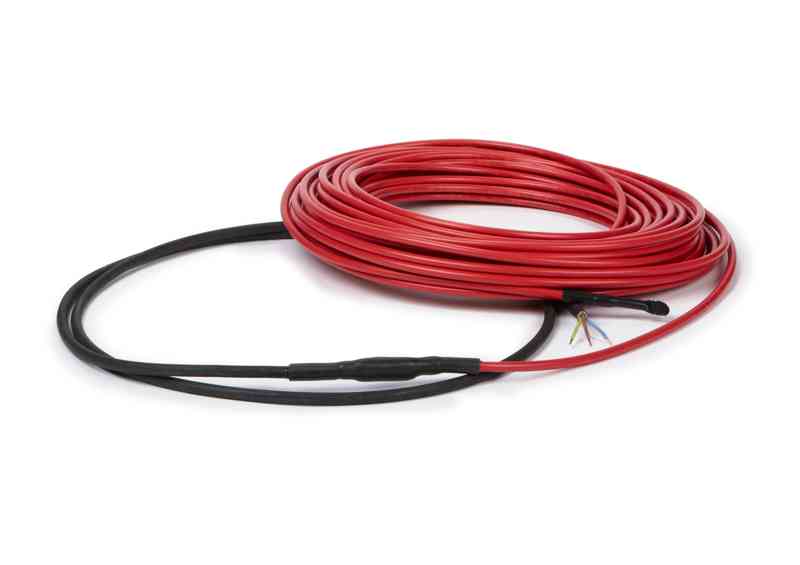

Deviflex™ 10t Heating Cable 10t 365w 230v 35m

Product Details

TypeDEVIflex™ 10T
Gross Weight2.949 Kg
Net Weight2.92 Kg
Volume                           13.708 Liter





BRANDS : DEVIflex™





Key Specifications:

SpecificationDetails
Product VersionReady-made
Heating PrincipleSerial Resistive
ApplicationCold Store; Pipe/Tank Frost Protection; Sport Fields; Floor Heating
Bending Diameter [Min]42 mm
Cable Diameter6.9 mm
Cable Length35 m
Cable on DrumNo
Cable Output [W/m]10 W/m
Cable Resistance [Ohm]145
Cable ScreenAlufoil 100%
Certification CompanyIntertek Semko, UkrTEST
Cold LeadYes
Cold Lead Conductor Qty3
Cold Lead Length [m]2.3 m
Cold Lead Qty1
Cold Lead Size [mm²]1.5 mm²
Cold Lead TypeDTCL
Conductor InsulationXLPE
Cut to LengthNo
Deformation Strength [N]1500 N
Element IP ClassIPX7
Flame RetardantYes
Heating Output [W]365 W
In Scope of WEEE and Contain Batteries                            No
Installation Temperature [Min]-5 °C
Lead FreeYes
Non-Operating Temperature [Max]90 °C
Operating Temperature [Max]75 °C
Outer SheathPVC
Outer Sheath ColorRed
Package Depth [mm]386 mm
Package Height [mm]92 mm
Package Width [mm]386 mm
Product GroupHeating Cables
Pulling Strength [N]500 N
Supply Voltage [V] AC230 V
UNSPSC Code26121601
UV ProtectedNo
Warranty [Year]20
Warranty Type20-year Full Service Warranty

DEVIflex™ 10T Heating Cables with a 20-year warranty, suitable for various applications, including pipe and tank frost protection, floor heating, cold stores, and sport fields.

Additional Informations
  • Contact us for more information.
    Our sales team will provide you with information and suggestion for selecting the right item.
