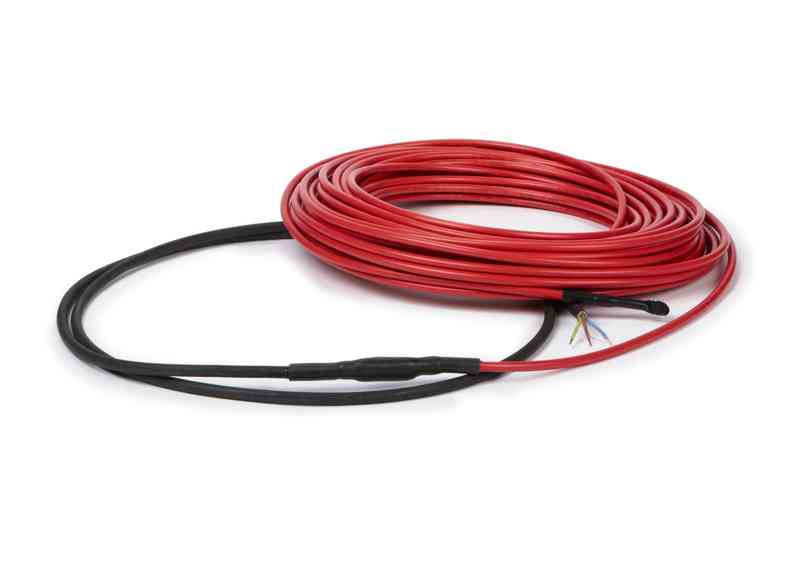

Deviflex™ 10t Heating Cable 1220w 230v 120m

Product Details

DEVIflex™ 10T Heating Cable, your solution for efficient temperature control. With an impressive 120m length and 10 W/m heating power at 230V AC, this ready-made cable suits various applications. Ideal for floor heating, pipe and tank frost protection, sport fields, and more. Crafted with a robust PVC outer sheath in striking red, it offers both durability and style. Plus, it comes with a reassuring 20-year full service warranty.

BRANDS : DEVIflex™







Key Specifications:

Product DetailsSpecification
Product versionReady-made
Heating principleSerial resistive
ApplicationCold store; Pipe / tank frost protection; Sport fields; Floor heating
Gross weight7.058 Kg
Net weight6.988 Kg
Volume21.157 Liter
ApplicationPipe / tank frost protection; Floor heating; Cold store; Sport fields
ApprovalCE; UkrTEST; EAC
Bending diameter [mm] [Min]42 mm
Cable diameter [mm]6.9 mm
Cable length [m]120 m
Cable on drumNo
Cable output [W/m]10 W/m
Cable resistance [Ohm]43.4 Ohm
Cable screenAlufoil 100%
Certification companyIntertek Semko; UkrTEST
Cold leadYes
Cold lead conductor quantity3
Cold lead length [m]2.3 m
Cold lead quantity1
Cold lead size [mm²]1.5 mm²
Cold lead typeDTCL
Conductor insulationXLPE
Cut to lengthNo
Deformation strength [N]1500 N
DescriptionDEVIflex 10T 1220W 230V 120m
Element IP ClassIPX7
Flame retardantYes
Heating output [W]1220 W
Heating principleSerial resistive
In scope of WEEE and contain batteries               No
Installation temperature [°C] [Min]-5 °C
Lead freeYes
Non-operating temperature [°C] [Max]90 °C
Operating temperature [°C] [max]75 °C
Outer sheathPVC
Outer sheath colorRed
Package depth [mm]380 mm
Package height [mm]120 mm
Package width [mm]380 mm
Product groupHeating Cables
Product versionReady-made
Pulling strength [N]500 N
Supply voltage [V] AC230 V
TypeDEVIflex™ 10T
UNSPSC CODE26121601
UV ProtectedNo
Warranty [Year]20
Warranty type20-year full service warranty



Additional Informations
  • Contact us for more information.
    Our sales team will provide you with information and suggestions for selecting the right item.
