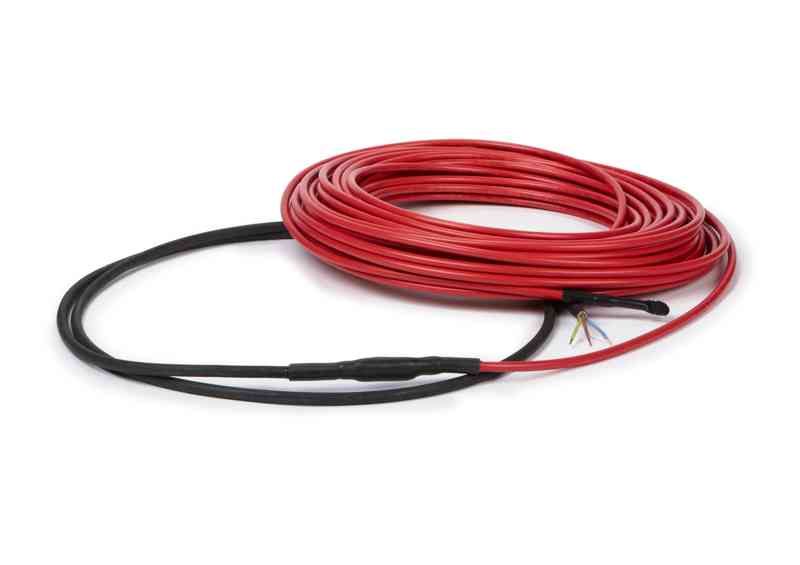

Deviflex™ 10t Heating Cable 1760w 230v 180m

Product Details

DEVIflex™ 10T Heating Cable, a robust solution with a substantial 180m length and 10 W/m heating capacity at 230V AC. This ready-made cable caters to a wide range of applications, including floor heating, pipe/tank frost protection, sport fields, and cold stores. Its sturdy PVC outer sheath in striking red guarantees both performance and visual appeal.

BRANDS : DEVIflex™







Key Specifications:

Product DetailsSpecification
Product versionReady-made
Heating principleSerial resistive
ApplicationCold store; Pipe / tank frost protection; Sport fields; Floor heating
Gross weight11.364 Kg
Net weight11.251 Kg
Volume30.842 Liter
ApplicationPipe / tank frost protection; Floor heating; Cold store; Sport fields
ApprovalCE; UkrTEST; EAC
Bending diameter [mm] [Min]42 mm
Cable diameter [mm]6.9 mm
Cable length [m]180 m
Cable on drumNo
Cable output [W/m]10 W/m
Cable resistance [Ohm]30.1 Ohm
Cable screenAlufoil 100%
Certification companyIntertek Semko; UkrTEST
Cold leadYes
Cold lead conductor quantity3
Cold lead length [m]2.3 m
Cold lead quantity1
Cold lead size [mm²]2.5 mm²
Cold lead typeDTCL
Conductor insulationXLPE
Cut to lengthNo
Deformation strength [N]                                            1500 N
DescriptionDEVIflex 10T 1760W 230V 180m
Element IP ClassIPX7
Flame retardantYes
Heating output [W]1760 W
Heating principleSerial resistive
In scope of WEEE and contain batteriesNo
Installation temperature [°C] [Min]-5 °C
Lead freeYes
Non-operating temperature [°C] [Max]90 °C
Operating temperature [°C] [max]75 °C
Outer sheathPVC
Outer sheath colorRed
Package depth [mm]386 mm
Package height [mm]207 mm
Package width [mm]386 mm
Product groupHeating Cables
Product versionReady-made
Pulling strength [N]500 N
Supply voltage [V] AC230 V
TypeDEVIflex™ 10T
UNSPSC CODE26121601
UV ProtectedNo
Warranty [Year]20
Warranty type20-year full service warranty



Additional Informations
  • Contact us for more information.
    Our sales team will provide you with information and suggestions for selecting the right item.
