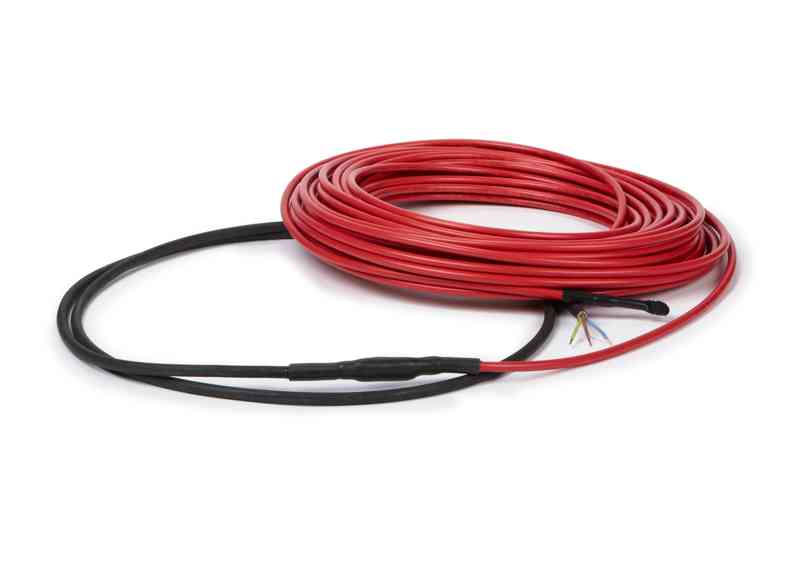

Deviflex™ 10t Heating Cable 60w 230v 6m

  1. Home
  2. Cold Room Spare Parts
  3. Floor Heating
  4. Deviflex™ 10t Heating Cable 60w 230v 6m
Category: Cold Room Spare Parts
Deviflex™ 10t Heating Cable 60w 230v 6m

Product Details

Product Name                 DEVIflex™ 10T
Gross Weight1.192 Kg
Net Weight1.18 Kg
Volume8.046 Liter
DescriptionDEVIflex 10T 60W 230V 6m





BRANDS : DEVIflex™





Key Specifications:

SpecificationDetails
Heating Output10 W/m
Cable Length6.00 m
Supply Voltage (AC)230 V
Product Version                                                                                              Ready-made
Heating PrincipleSerial resistive
Application

Cold store; Pipe/tank frost protection;

Sport fields; Floor heating

Bending Diameter (Min)42 mm
Cable Diameter6.9 mm
Cable on DrumNo
Cable Output10 W/m
Cable Resistance882 Ohm
Cable ScreenAlufoil 100%
Certification CompanyIntertek Semko, UkrTEST
Cold LeadYes
Cold Lead Conductor Quantity3
Cold Lead Length2.3 m
Cold Lead Quantity1
Cold Lead Size (mm²)1.5 mm²
Cold Lead TypeDTCL
Conductor InsulationXLPE
Cut to LengthNo
Deformation Strength1500 N
Element IP ClassIPX7
Flame RetardantYes
In Scope of WEEE and Contain BatteriesNo
Installation Temperature (Min)-5 °C
Lead FreeYes
Non-Operating Temperature (Max)90 °C
Operating Temperature (Max)75 °C
Outer SheathPVC
Outer Sheath ColorRed
Package Depth (mm)386 mm
Package Height (mm)54 mm
Package Width (mm)386 mm
Product GroupHeating Cables
UNSPSC CODE26121601
UV ProtectedNo
Warranty (Year)20
Warranty Type20-year full service warranty



Additional Informations
  • Contact us for more information
    Our sales team will provide you with information and suggestion for selecting the right item.
