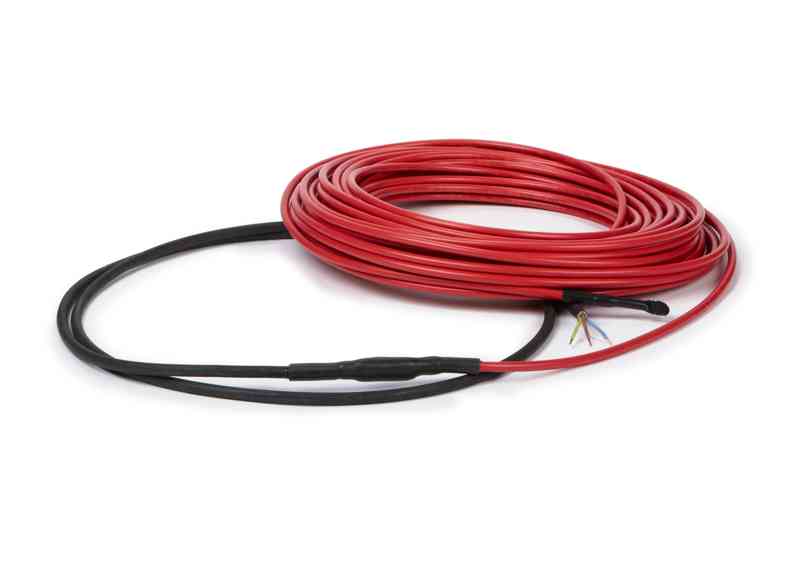

Deviflex™ 10t Heating Cable 695w 230v 70m

Category: Cold Room Spare Parts
Deviflex™ 10t Heating Cable 695w 230v 70m


Product Details

DEVIflex™ 10T Heating Cable, a top-tier solution designed for multiple applications such as cold stores, pipe and tank frost protection, sport fields, and efficient floor heating systems. This ready-made cable boasts a 70-meter length and operates at a supply voltage of 230V.

Crafted with precision, this cable features a serial resistive heating principle, ensuring reliable performance. It comes with a CE, UkrTEST, and EAC approval, attesting to its quality and safety. With a minimal bending diameter of 42mm and a cable diameter of 6.9mm, it's suitable for various installations.

The cable's insulation is made from XLPE, providing excellent durability and resilience. It boasts an IPX7 class for element protection and is flame retardant. Operating within a temperature range of -5°C to 75°C, it can handle challenging conditions.

Whether you need to maintain temperatures in cold storage or provide efficient floor heating, the DEVIflex™ 10T Heating Cable offers outstanding performance backed by a 20-year full service warranty.

BRANDS : DEVIflex™



Key Specifications:

Product DetailsSpecification
Product versionReady-made
Heating principleSerial resistive
ApplicationCold store; Pipe / tank frost protection; Sport fields; Floor heating
Gross weight4.575 Kg
Net weight4.53 Kg
Volume21.157 Liter
ApplicationPipe / tank frost protection; Floor heating; Cold store; Sport fields
ApprovalCE; UkrTEST; EAC
Bending diameter [mm] [Min]                                          42 mm
Cable diameter [mm]6.9 mm
Cable length [m]70 m
Cable on drumNo
Cable output [W/m]10 W/m
Cable resistance [Ohm]76.3
Cable screenAlufoil 100%
Certification companyIntertek Semko; UkrTEST
Cold leadYes
Cold lead conductor quantity3
Cold lead length [m]2.3 m
Cold lead quantity1
Cold lead size [mm²]1.5 mm²
Cold lead typeDTCL
Conductor insulationXLPE
Cut to lengthNo
Deformation strength [N]1500 N
DescriptionDEVIflex 10T 695W 230V 70m
Element IP ClassIPX7
Flame retardantYes
Heating output [W]695 W
Heating principleSerial resistive
In scope of WEEE and contain batteriesNo
Installation temperature [°C] [Min]-5 °C
Lead freeYes
Non-operating temperature [°C] [Max]90 °C
Operating temperature [°C] [max]75 °C
Outer sheathPVC
Outer sheath colorRed
Package depth [mm]380 mm
Package height [mm]120 mm
Package width [mm]380 mm
Product groupHeating Cables
Product versionReady-made
Pulling strength [N]500 N
REACH Candidate List substancesNo
Supply voltage [V] AC230 V
TypeDEVIflex™ 10T
UNSPSC CODE26121601
UV ProtectedNo
Warranty [Year]20
Warranty type20-year full service warranty







Additional Informations
  • Contact us for more information.
    Our sales team will provide you with information and suggestions for selecting the right item.
