Deviflex™ 10t Heating Cable 790w 230v 80m

Category: Cold Room Spare Parts

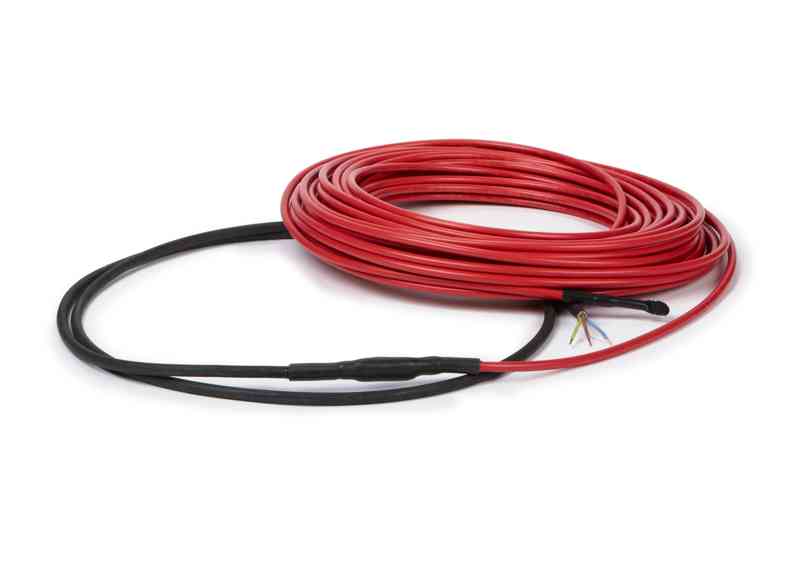

Deviflex™ 10t Heating Cable 790w 230v 80m


Product Details

DEVIflex™ 10T Heating Cable, a top-tier solution with an impressive 80-meter length, designed for a supply voltage of 230V. This high-quality cable is your ideal choice for a wide range of applications, including cold storage environments, pipe and tank frost protection, sport fields, and efficient floor heating systems.

With a serial resistive heating principle, this cable ensures consistent and reliable performance. It holds CE, UkrTEST, and EAC approvals, underscoring its quality and safety. Featuring a minimal bending diameter of 42mm and a cable diameter of 6.9mm, it's suitable for various installations.

Crafted with XLPE insulation, this cable exhibits excellent durability and resilience. It boasts an IPX7 class for element protection and is flame retardant. Operating within a temperature range of -5°C to 75°C, it can withstand challenging conditions.

Whether you need to maintain temperatures in cold stores or provide efficient floor heating, the DEVIflex™ 10T Heating Cable offers exceptional performance, all backed by a 20-year full service warranty.

BRANDS : DEVIflex™



Key Specifications:

SpecificationDetails
Product Size10 W/m, 80m Length
Supply Voltage [V] AC230
Product VersionReady-made
Heating PrincipleSerial resistive
ApplicationCold store, Pipe/tank frost protection, Sport fields, Floor heating
ApprovalCE, UkrTEST, EAC
Bending Diameter [mm] [Min]42 mm
Cable Diameter [mm]6.9 mm
Cable Length [m]80 m
Cable on DrumNo
Cable Output [W/m]10 W/m
Cable Resistance [Ohm]66.9
Cable ScreenAlufoil 100%
Certification CompanyIntertek Semko, UkrTEST
Cold LeadYes
Cold Lead Conductor Quantity3
Cold Lead Length [m]2.3 m
Cold Lead Quantity1
Cold Lead Size [mm²]1.5 mm²
Cold Lead TypeDTCL
Conductor InsulationXLPE
Cut to LengthNo
Deformation Strength [N]1500 N
DescriptionDEVIflex 10T 790W 230V 80m
Element IP Class                                                              IPX7
Flame RetardantYes
Heating Output [W]790 W
Heating PrincipleSerial resistive
In Scope of WEEE and Contain BatteriesNo
Installation Temperature [°C] [Min]-5 °C
Lead FreeYes
Non-Operating Temperature [°C] [Max]90 °C
Operating Temperature [°C] [Max]75 °C
Outer SheathPVC
Outer Sheath ColourRed
Package Depth [mm]380 mm
Package Height [mm]120 mm
Package Width [mm]380 mm
Product GroupHeating Cables
Product VersionReady-made
Pulling Strength [N]500 N
REACH Candidate List SubstancesNo
UNSPSC CODE26121601
UV ProtectedNo
Warranty [Year]20
Warranty Type20-year full service warranty







Additional Informations
  • Contact us for more information.
    Our sales team will provide you with information and suggestions for selecting the right item.
