Deviflex™ 18t Heating Cable 310w 230v 17.5m

Product Details

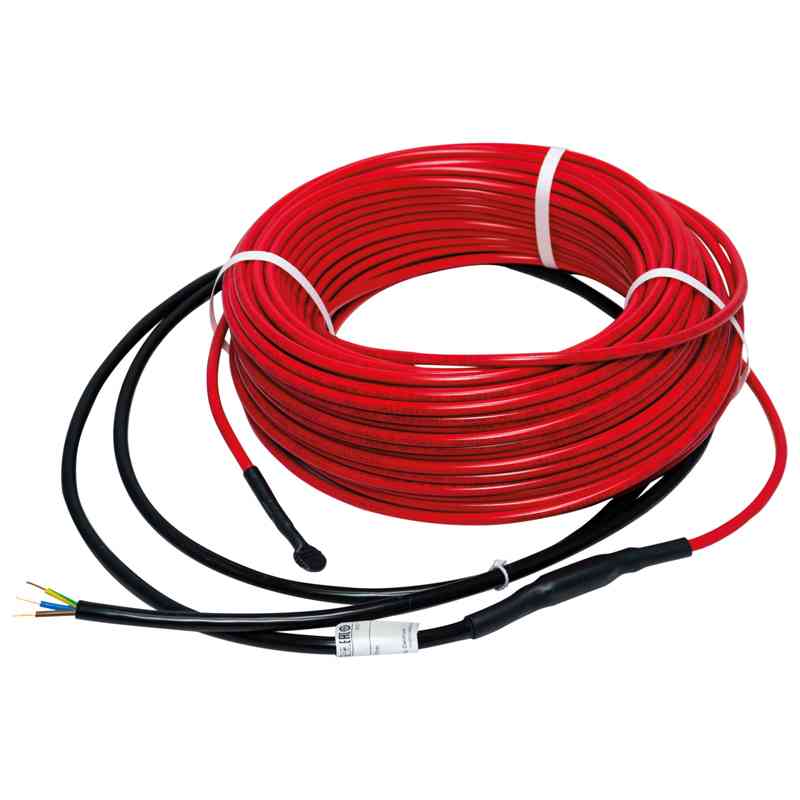

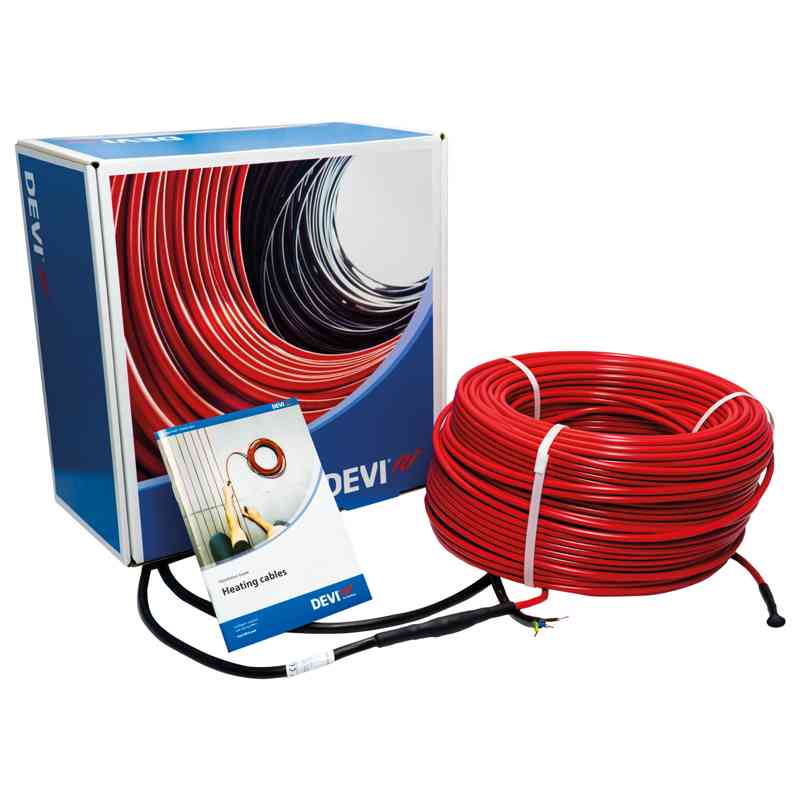

DEVIflex™ 18T Heating Cable, featuring an 18 W/m output and a generous 17.5m length, compatible with 230V AC. Ideal for various applications, including floor heating, pipe/tank frost protection, sport fields, and cold stores.

BRANDS : DEVIflex™











Key Specifications:

Product DetailsSpecification
Product versionReady-made
Heating principleSerial resistive
ApplicationCold store; Pipe / tank frost protection; Sport fields; Floor heating
Gross weight1.757 Kg
Net weight1.74 Kg
Volume8.046 Liter
ApplicationPipe / tank frost protection; Floor heating; Cold store; Sport fields
ApprovalCE; UkrTEST; EAC
Bending diameter [mm] [Min]                                  42 mm
Cable diameter [mm]6.9 mm
Cable length [m]17.5 m
Cable on drumNo
Cable output [W/m]18 W/m
Cable resistance [Ohm]171.2 Ohm
Cable screenAlufoil 100%
Certification companyIntertek Semko; UkrTEST
Cold leadYes
Cold lead conductor quantity3
Cold lead length [m]2.3 m
Cold lead quantity1
Cold lead size [mm²]1.5 mm²
Cold lead typeDTCL
Conductor insulationXLPE
Cut to lengthNo
Deformation strength [N]1500 N
DescriptionDEVIflex 18T 310W 230V 17.5m
Element IP ClassIPX7
Flame retardantYes
Heating output [W]310 W
Heating principleSerial resistive
In scope of WEEE and contain batteriesNo
Installation temperature [°C] [Min]-5 °C
Lead freeYes
Non-operating temperature [°C] [Max]90 °C
Operating temperature [°C] [max]60 °C
Outer sheathPVC
Outer sheath colorRed
Package depth [mm]386 mm
Package height [mm]54 mm
Package width [mm]386 mm
Product groupHeating Cables
Product versionReady-made
Pulling strength [N]500 N
Set accessoriesNo
Supply voltage [V] AC230 V
TypeDEVIflex™ 18T
UNSPSC CODE26121601
UV ProtectedNo
Warranty [Year]20
Warranty type20-year full service warranty



Additional Informations
  • Contact us for more information.
    Our sales team will provide you with information and suggestions for selecting the right item.
