Danfoss Compressor Mt160-4vi

  1. Home
  2. Cold Room Spare Parts
  3. Refrigeration Compressor
  4. Danfoss Compressor Mt160-4vi
Category: Cold Room Spare Parts

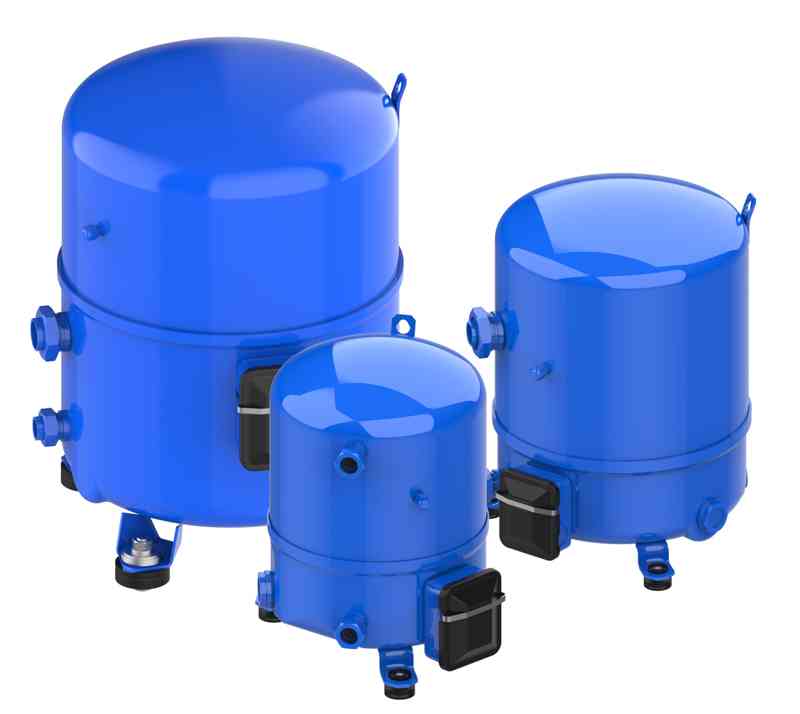

Danfoss Compressor Mt160-4vi

Product Details

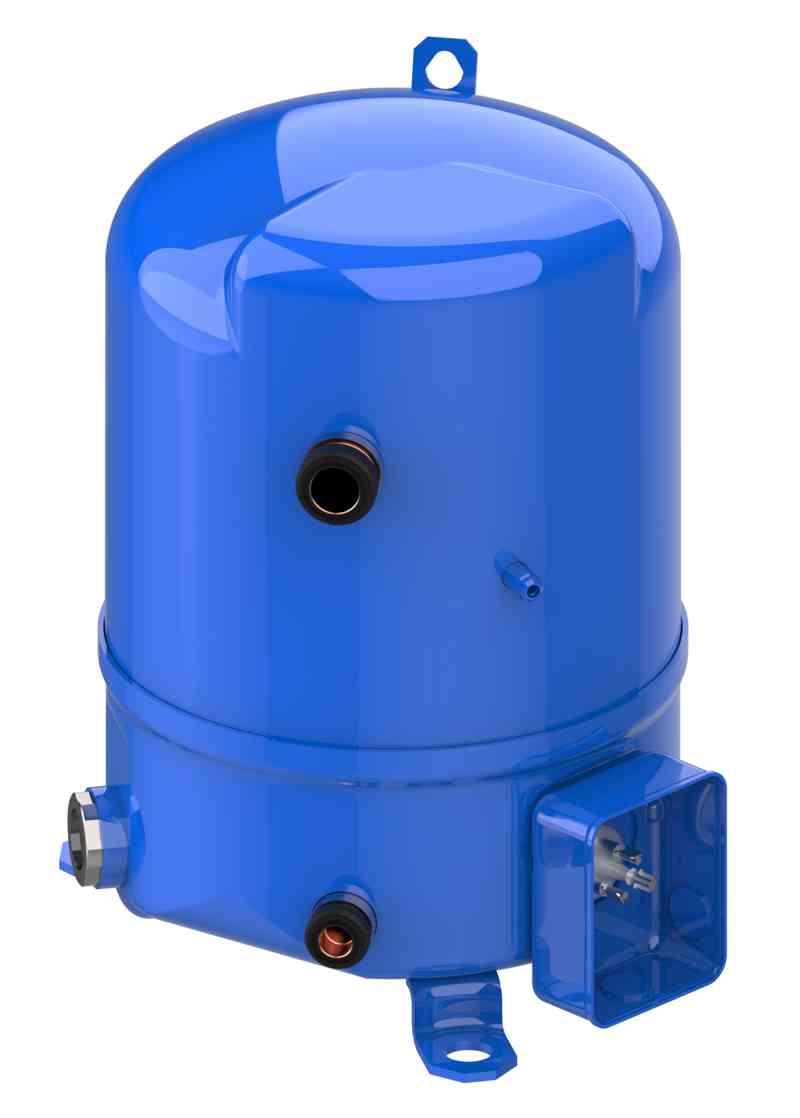

Reciprocating compressor, MT160HW4EVE

MT160-4VI

Refrigerants: R22, Segment usage: Refrigeration MT, Compressor power supply [V/Ph/Hz]: 400/3/50 460/3/60

Product Specifications:

Gross weight74.5 Kg
Net weight71 Kg
Volume100.75 Liter
EAN5702428839860
Approval standardCE
UL
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlue
Compressor power supply [V/Ph/Hz]400/3/50 460/3/60
Configuration codeSingle
Connection typeRotolock
Cylinder4
DescriptionMT160-4
Diameter [mm]352 mm
Discharge connection height [mm]125 mm
Discharge connection pipe size [in]3/4 in
Discharge connection size [in]1 1/4 in
Drawing number8504011e
EconomizerNo
Factory HP [bar]25 bar
Factory LP [bar]25 bar
FamilyMT
Fitting remark(shipped with rotolock version only)
Fitting sleeveODF
Fitting standardRotolock
Frequency [Hz]50/60
Gauge port HPNone
Gauge port LPSchrader
Generation codeD
Glass mountingThreaded
Glass torque [Nm]50 N-m
GP LP torque [Nm]15 N-m
High side max pressure (Ps)27.8 bar
High Side TS Max150 °C
High Side TS Min-35 °C
High Side Volume1.2 L
High value of nominal voltage at 50Hz [V]400 V
High value of nominal voltage at 60Hz [V]460 V
High value of voltage range at 50Hz [V]460 V
High value of voltage range at 60Hz [V]506 V
IP protection classIP54 (with cable gland)
Low side max pressure (Ps)18.4 bar
Low Side TS Max50 °C
Low Side TS Min-35 °C
Low Side Volume31 L
Low value of nominal voltage at 50Hz [V]380 V
Low value of nominal voltage at 60Hz [V]460 V
Low value of voltage range at 50Hz [V]340 V
Low value of voltage range at 60Hz [V]414 V
LRA130 A
MCC36 A
Model numberMT160HW4EVE
Motor protectionInternal overload protector
Mounting torque [Nm]50 N-m
Network power supply [V/Ph/Hz]380-415/3/50 460/3/60
Nominal cooling capacity 60 kBTU/h156.66 kBtu/h
Nominal cooling capacity at 50Hz35 kW
Nominal cooling capacity at 60Hz45.9 kW
Number of starts per hour [Max]12
Oil charge [L]3.9 L
Oil equalization3/8'' flare SAE
Oil equalization torque [Nm]30 N-m
Oil reference160P
Packaging height [mm]720 mm
Packaging length [mm]570 mm
Packaging weight [Kg]72 kg
Packaging width [mm]400 mm
Packing formatSingle pack
Packing quantity1
Phase3
Power connectionsScrew connectors 10-32 UNF x 9.5
Product groupHermetic compressors
Product Name DescriptionReciprocating compressor MT
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]10 kg
RefrigerantsR22
Relief valve30 bar/8 bar
Rotational speed at 50Hz [rpm]2900 rpm
Rotational speed at 60Hz [rpm]3500 rpm
SCIP dossier no.6971587b-85b6-4808-886d-274e8a9998d4
Segment usageRefrigeration MT
Shipped fittingsSuction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructionsInstallation instructions
Shipped mountingMounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oilInitial oil charge
Suction connection height [mm]233 mm
Suction connection material-
Suction connection pipe size [in]1 1/8 in
Suction connection size [in]1 3/4 in
Swept volume [cm3]271.55 cm³
TechnologyReciprocating
Test dif [bar] [Max]30 bar
Test HP [bar] [Max]30 bar
Test LP [bar] [Max]25 bar
Torque earth [Nm]3 N-m
Torque power [Nm]3 N-m
Total height [mm]540 mm
TypeMT160
Viscosity [cP]32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]1.15 Ohm
