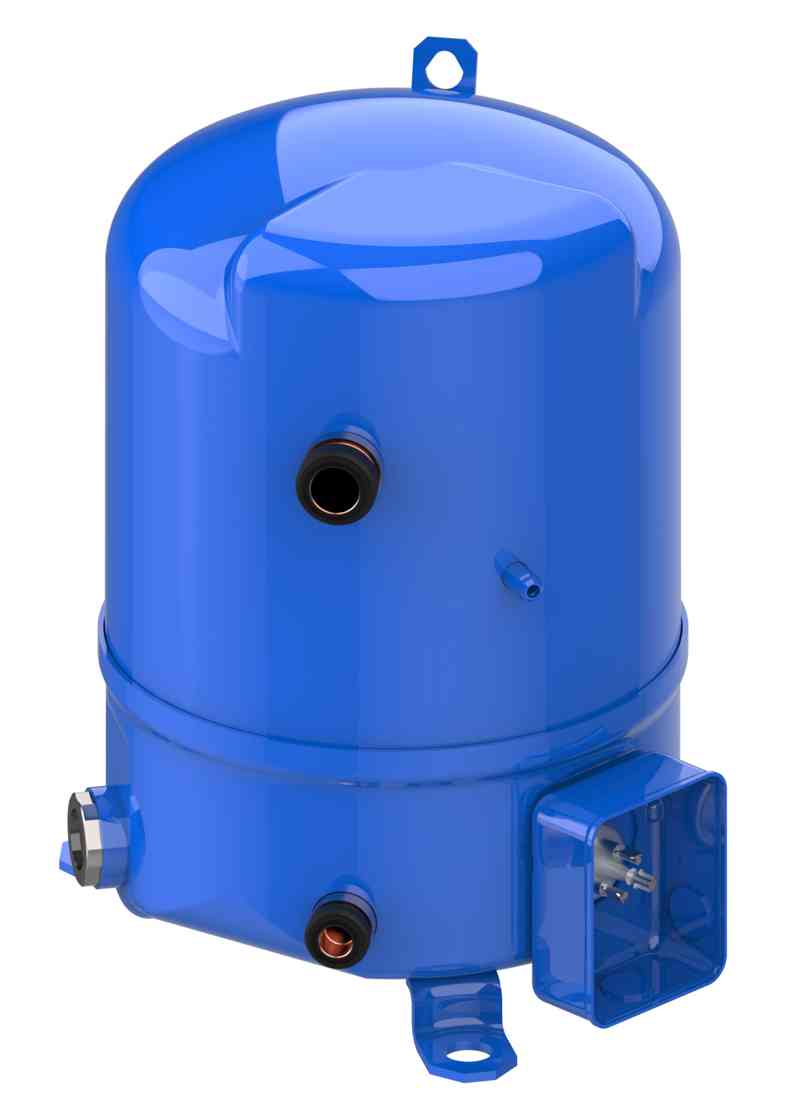

Danfoss Compressor Mt36-5vi

Product Details

Reciprocating compressor, MT36JG5CVE

MT36-5VI

Refrigerants: R22, Segment usage: Refrigeration MT, Compressor power supply [V/Ph/Hz]: 220-240/1/50

Product Specifications:

Gross weight27.88 Kg
Net weight26.005 Kg
Volume37.73 Liter
EAN5702428662253
Approval standardCCC
CE
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]4.23
Brand techniqueReciprocating compressor
Capacity controlFixed speed
Capacity of capacitor A25 µF
Capacity of capacitor B135 µF
Capacity of capacitor C10 µF
ColourBlue
Compressor power supply [V/Ph/Hz]220-240/1/50
Configuration codeSingle
Connection typeRotolock
Cylinder1
DescriptionMT036-5
Diameter [mm]224 mm
Discharge connection height [mm]68 mm
Discharge connection pipe size [in]1/2 in
Discharge connection size [in]1 in
Drawing number8501020e
EconomizerNo
Factory HP [bar]25 bar
Factory LP [bar]25 bar
FamilyMT
Fitting remark(shipped with rotolock version only)
Fitting sleeveODF
Fitting standardRotolock
Frequency [Hz]50
Gauge port HPNone
Gauge port LPSchrader
Generation codeC
Glass mountingThreaded
Glass torque [Nm]50 N-m
GP LP torque [Nm]15 N-m
High side max pressure (Ps)29.4 bar
High Side TS Max150 °C
High Side TS Min-35 °C
High Side Volume0.3 L
High value of nominal voltage at 50Hz [V]240 V
High value of voltage range at 50Hz [V]264 V
IP protection classIP55 (with cable gland)
Low side max pressure (Ps)18.4 bar
Low Side TS Max50 °C
Low Side TS Min-35 °C
Low Side Volume7.5 L
Low value of nominal voltage at 50Hz [V]220 V
Low value of voltage range at 50Hz [V]198 V
LRA60 A
Main winding resistance for single-phase compressors [Ohm]0.8
MCC22 A
Model numberMT36JG5CVE
Motor protectionInternal overload protector
Mounting torque [Nm]15 N-m
Network power supply [V/Ph/Hz]220-240/1/50 208-230/1/60
Nominal cooling capacity 60 kBTU/h37.88 kBtu/h
Nominal cooling capacity at 50Hz8.5 kW
Nominal cooling capacity at 60Hz11.1 kW
Number of starts per hour [Max]12
Oil charge [L]0.95 L
Oil equalization3/8'' flare SAE
Oil equalization torque [Nm]30 N-m
Oil reference160P
Packaging height [mm]385 mm
Packaging length [mm]330 mm
Packaging weight [Kg]27 kg
Packaging width [mm]295 mm
Packing formatSingle pack
Packing quantity1
Phase1
Power connectionsSpade
Product groupHermetic compressors
Product Name DescriptionReciprocating compressor MT
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]2.5 kg
RefrigerantsR22
Relief valveNone
Rotational speed at 50Hz [rpm]2900 rpm
SCIP dossier no.5a332c1b-1d1b-4998-8115-d0929877ecb4
Segment usageRefrigeration MT
Shipped fittingsSuction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructionsInstallation instructions
Shipped mountingMounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oilInitial oil charge
Suction connection height [mm]263 mm
Suction connection material-
Suction connection pipe size [in]5/8 in
Suction connection size [in]1 1/4 in
Swept volume [cm3]60.47 cm³
TechnologyReciprocating
Test dif [bar] [Max]30 bar
Test HP [bar] [Max]30 bar
Test LP [bar] [Max]25 bar
Torque earth [Nm]3 N-m
Torque power [Nm]3 N-m
Total height [mm]356 mm
TypeMT036
Viscosity [cP]32 cP
Voltage of capacitor A [V]440 V
Voltage of capacitor B [V]330 V
Voltage of capacitor C [V]440 V
