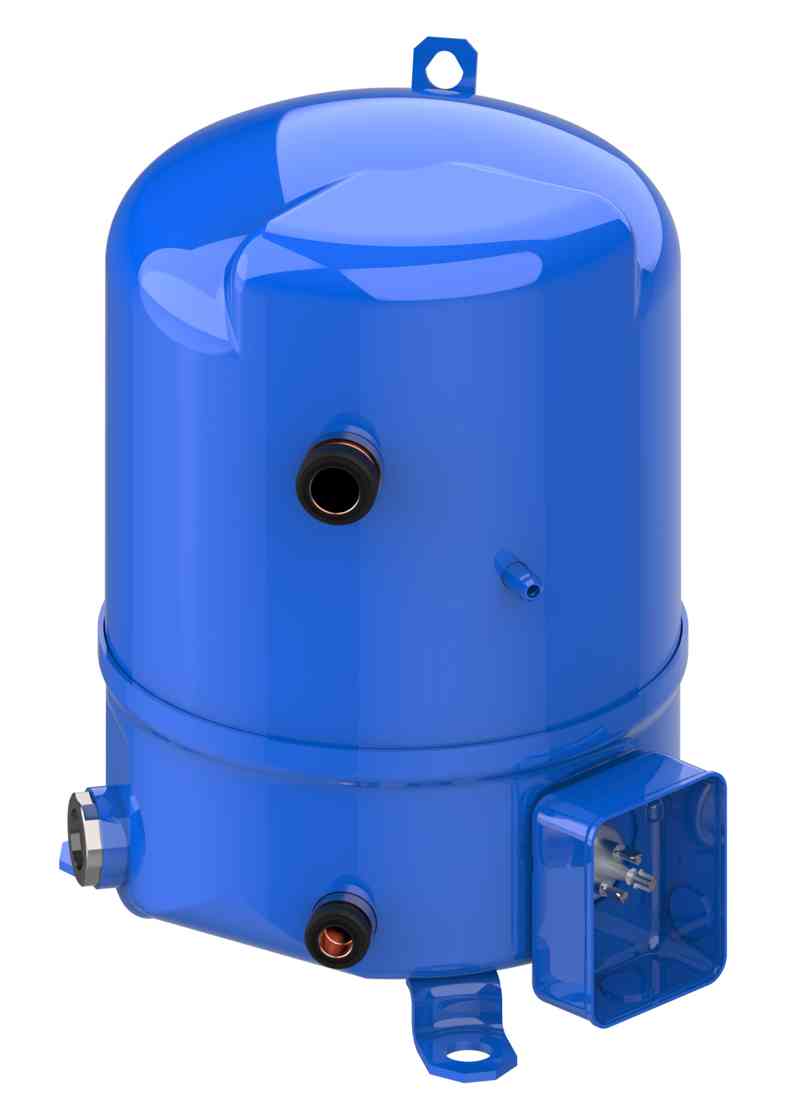

Danfoss Compressor Mt64-4vi

Product Details

Reciprocating compressor, MT64HM4DVE

MT64-4VI

Refrigerants: R22, Segment usage: Refrigeration MT, Compressor power supply [V/Ph/Hz]: 400/3/50 460/3/60

Gross weight42.2 Kg
Net weight39.7 Kg
Volume61.54 Liter
EAN5702428839563
Approval standardCCC
CE
UL
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlue
Compressor power supply [V/Ph/Hz]400/3/50 460/3/60
Configuration codeSingle
Connection typeRotolock
Cylinder2
DescriptionMT064-4
Diameter [mm]288 mm
Discharge connection height [mm]74 mm
Discharge connection pipe size [in]3/4 in
Discharge connection size [in]1 1/4 in
Drawing number8502012g
EconomizerNo
Factory HP [bar]25 bar
Factory LP [bar]25 bar
FamilyMT
Fitting remark(shipped with rotolock version only)
Fitting sleeveODF
Fitting standardRotolock
Frequency [Hz]50/60
Gauge port HPNone
Gauge port LPSchrader
Generation codeE
Glass mountingThreaded
Glass torque [Nm]50 N-m
GP LP torque [Nm]15 N-m
High side max pressure (Ps)27.8 bar
High Side TS Max150 °C
High Side TS Min-35 °C
High Side Volume0.6 L
High value of nominal voltage at 50Hz [V]400 V
High value of nominal voltage at 60Hz [V]460 V
High value of voltage range at 50Hz [V]460 V
High value of voltage range at 60Hz [V]506 V
IP protection classIP55 (with cable gland)
Low side max pressure (Ps)18.4 bar
Low Side TS Max50 °C
Low Side TS Min-35 °C
Low Side Volume16.5 L
Low value of nominal voltage at 50Hz [V]380 V
Low value of nominal voltage at 60Hz [V]460 V
Low value of voltage range at 50Hz [V]340 V
Low value of voltage range at 60Hz [V]414 V
LRA64 A
MCC14 A
Model numberMT64HM4DVE
Motor protectionInternal overload protector
Mounting torque [Nm]15 N-m
Network power supply [V/Ph/Hz]380-415/3/50 460/3/60
Nominal cooling capacity 60 kBTU/h64.51 kBtu/h
Nominal cooling capacity at 50Hz14.4 kW
Nominal cooling capacity at 60Hz18.9 kW
Number of starts per hour [Max]12
Oil charge [L]1.8 L
Oil equalization3/8'' flare SAE
Oil equalization torque [Nm]30 N-m
Oil reference160P
Packaging height [mm]455 mm
Packaging length [mm]395 mm
Packaging weight [Kg]40 kg
Packaging width [mm]365 mm
Packing formatSingle pack
Packing quantity1
Phase3
Power connectionsSpade
Product groupHermetic compressors
Product Name DescriptionReciprocating compressor MT
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]5 kg
RefrigerantsR22
Relief valve30 bar/8 bar
Rotational speed at 50Hz [rpm]2900 rpm
Rotational speed at 60Hz [rpm]3500 rpm
SCIP dossier no.9b3fb119-9852-486a-92dd-53aa9c96fd3b
Segment usageRefrigeration MT
Shipped fittingsSuction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructionsInstallation instructions
Shipped mountingMounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oilInitial oil charge
Suction connection height [mm]265 mm
Suction connection material-
Suction connection pipe size [in]7/8 in
Suction connection size [in]1 3/4 in
Swept volume [cm3]107.71 cm³
TechnologyReciprocating
Test dif [bar] [Max]30 bar
Test HP [bar] [Max]30 bar
Test LP [bar] [Max]25 bar
Torque earth [Nm]3 N-m
Torque power [Nm]3 N-m
Total height [mm]413 mm
TypeMT064
Viscosity [cP]32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]2.44 Ohm
