Danfoss Filter Drier Flare - Dcl032 1/4"

Product Details

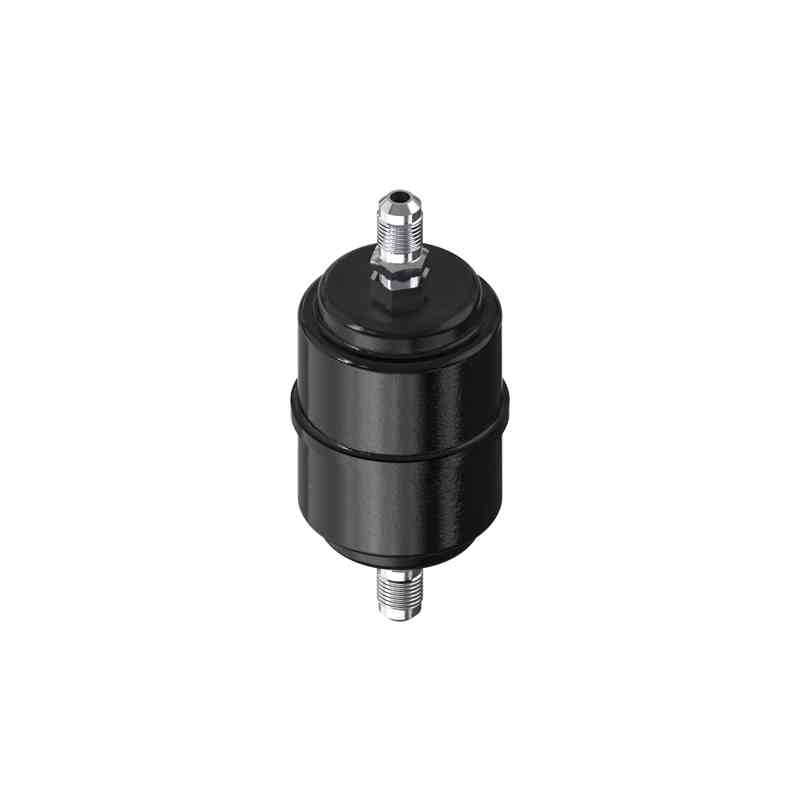

Danfoss Filter Drier Flare - DCL032 1/4"

Hermetic filter drier, DCL, 03 cu.in., Steel

023Z500091

Inlet connection type: Flare, Outlet connection type: Flare, Core Size code: 03 cu.in.

SpecificationDetails
Gross Weight0.206 Kg
Net Weight0.17 Kg
Volume                                                                 0.323 Liter
Activated Alum/Molecular Sieve [%]20% / 80%
Acid Capacity [g]0.53 g
Acid Capacity [oz]0.019 oz



BRANDS : DANFOSS

SpecificationDetails
ApprovalUL
Body MaterialSteel
BracketNo
BrandELIMINATOR
Connection MaterialSteel
CoreSolid Core
Core Size Code03 cu.in.
Drying Cap [Drops of Water] at 24°CR134a: 76
Drying Cap [Drops of Water] at 52°CR134a: 69
Flow Capacity [kW]R134a: 5.8
Flow Capacity [TR]R134a: 1.6
Flow Direction IndicatorLabel Printed 1-Way Arrow
Fluid Group2
In Scope of WEEE and Contain BatteriesNo
Inlet 1 Connection Size [in]1/4 in
Inlet Connection Size [mm]6 mm
Inlet Connection TypeFlare
LiqCap Cond (ARI 710-2009) [SI]

Delta p=0.07bar

tliq=30°C

tvap=-15°C

LiqCap Cond (ARI 710-2009) [IMP]

Delta p=1psi

tliq=86°F

tvap=5°F

Lubricants CompatibilityOil-Free Applications
Max. Working Pressure [bar]46 bar
Max. Working Pressure [psig]667 psig
Net Volume [fl. oz US]1.72 Fluid Ounce US
Net Volume [l]0.051 L
Oil-Free Refrigerants

R1234ze(E)

R134a

R513A

R515A

Outlet 1 Connection Size [in]1/4 in
Outlet Connection Size [mm]6 mm
Outlet Connection TypeFlare
Packing FormatMulti Pack
PED CategoryArt. 4, Par. 3
Product AccessoriesGeneric Accessories
Product DescriptionLiquid Line Filter Drier
Product GroupFilter Driers
Product Name DescriptionHermetic Filter Drier
Quantity per Packing Format32 pc
RefrigerantsR1234yf, R125, R134a, R22/R407C, R23, R290, R32, R404A, R407A, R407F, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454B ,R455A, R507A, R513A, R600, R1234ze(E), R1233zd(E), R407H, R454A, R454C, R463A, R515B, R516A
ServiceableNo
Shell Volume [fl. oz US]2.44 Fluid Ounce US
Shell Volume [l]0.07 L
Solid Core Surface [cm2]59 cm²
Solid Core Surface [in2]9.1 in²
Solid Core Volume [cm3]21 cm³
Solid Core Volume [in3]1.3 in³
Temperature Range [°C] [max]70 °C
Temperature Range [°C] [min]-40 °C
Temperature Range [°F] [max]160 °F
Temperature Range [°F] [min]-40 °F
TypeDCL
Type DesignationDCL 032
UL Approval File NameSA6398
UL Approved RefrigerantsR125, R134a, R22, R23, R404A, R407A, R407C, R407F, R410A, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R507A, R513A
