Product Details

Situations:

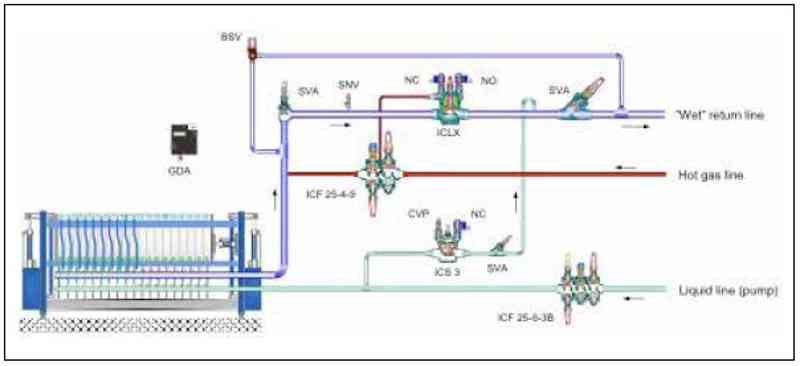

• A valve combination for a fl ooded evaporator operating on/off from a thermostat and with hot gas defrost is required. Pipe dimension is 25 mm, and there is a demand for butt weld DIN connections. It is a request to have 4 sideports for external connectors.

Solutions:

• For this application ICF 20-6-3, code number 027L3020 is recommended.

Situations:

• On the same evaporator a hot gas valve to inject the gas into is needed. Pipe dimension is 32 mm, and there is a demand for butt weld DIN connections. It is a request to have 2 sideports for external connectors.

Solutions:

• For this application ICF 25-4-9, is recommended.
