Product Details

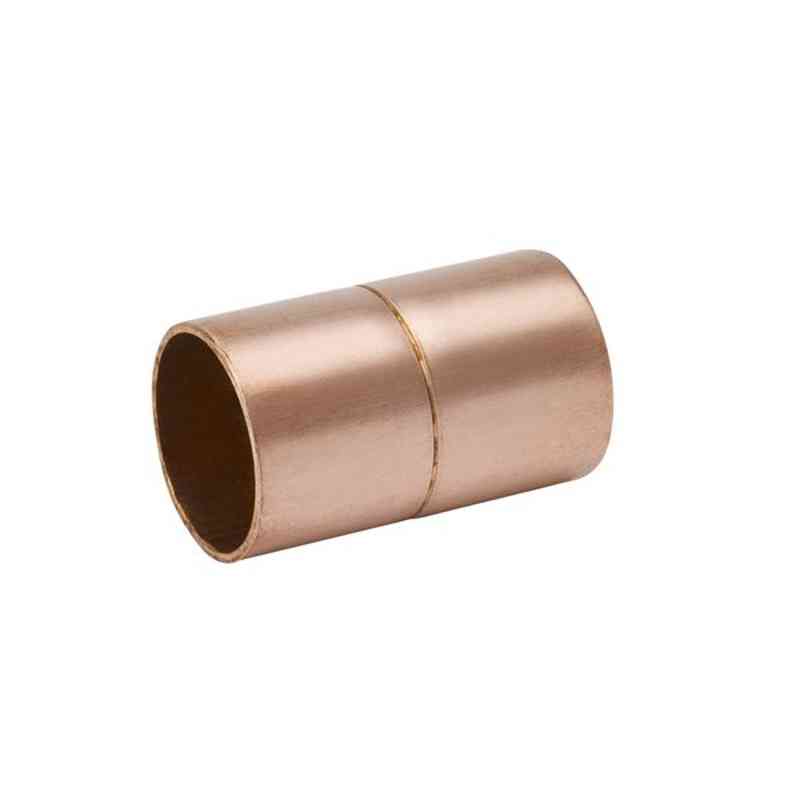

Mueller Copper Fitting Coupling 2-1/8" OD

• For use in above-ground potable water supply systems
• Constructed of high-grade copper or bronze materials
• Made to applicable ASME standards B16.15, B16.18, B16.22, B16.24, B16.50, B1.20.1
• Wrot fittings meet NSF 61G

Description:

• Coupling Fitting
• Type Rolled Stop, Straight
• Size A 2-1/8 Inch
• Size B 2-1/8 Inch
• End Connection Female Soldered x Female Soldered
• Material UNS C12200 Copper
• Material Specification ASTM B75
• Process Wrot
• Pressure Rating 700 PSI at 250 Deg F
• Application Potable Water Supply System, HVAC System
• Applicable Standard UL (Canada and US), ASME B16.15/B16.18/B16.22/B16.24/B16.50/B1.20.1, MSS SP-104, NSF/ANSI 61G
