Product Details

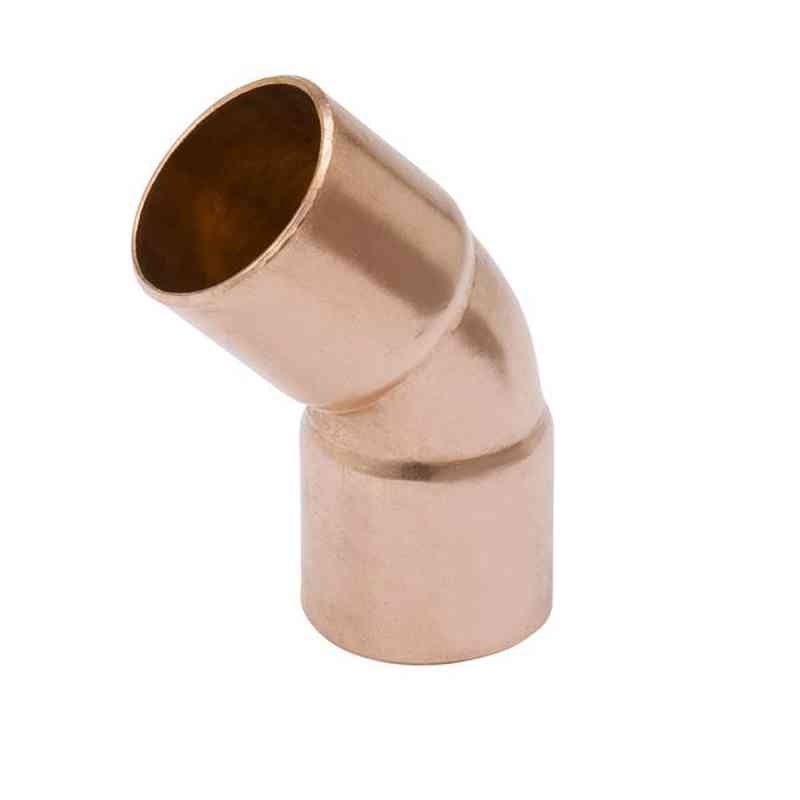

45 ELBOW 7/8" O.D. COPPER CXC W 03034V

• For use in above-ground potable water supply systems
• Constructed of high-grade copper or bronze materials
• Made to applicable ASME standards B16.15, B16.18, B16.22, B16.24, B16.50, B1.20.1
• Wrot fittings meet NSF 61G

Details:

• Elbow Fitting
• Angle 45 Degree
• Size A 7/8 Inch
• Size B 7/8 Inch
• End Connection Female Soldered x Female Soldered
• Material UNS C12200 Copper
• Material Specification ASTM B75
• Process Wrot
• Pressure Rating 700 PSI
• Temperature Rating 250 Deg F
• Application Potable Water Supply System, HVACR
• Applicable Standard UL (Canada and US), ASME B16.15/B16.18/B16.22/B16.24/B16.50/B1.20.1, MSS SP-104, NSF 61G
• Lead-Free
• End Size 3/4 Inch
• Lead-Free
• Made in USA

Specifications:
