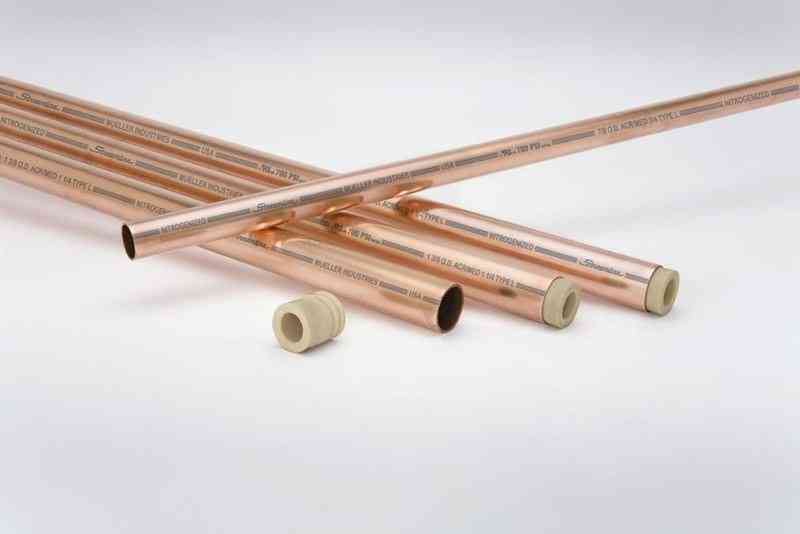

Mueller Copper Pipe 3/4"X20' Nitrogen Ac 05020'Usa
Product Details
AC05020, AIR CONDITIONING REFRIDGERATION (ACR ), 3/4" OD X 20'
Mueller Copper Tube provides the strength, precision, and cleanliness needed for the demanding conditions of HVAC and refrigeration applications. Preferred through the industry, our products have set the benchmark for HVACR copper tube. Mueller ACR Copper Tube is pressurized with nitrogen to provide maximum protection against the formation of harmful oxides normally formed during brazing operations. The reduction of these oxides greatly reduces system contamination.
- For use in HVACR applications
- Made to applicable ASTM standards B280
- UL Rated to 700 PSI (select sizes)
- Made in the USA
Specifications:
Type | ACR |
|---|---|
Standards | ASTM B280 UNS C12200 |
Weight | 0.362 lb |
Material | C12200 |
Item Size | 3/4" OD x 20' |
Dimensions:
Plumbing (Nominal) Size | 5/8 |
|---|---|
HVACR (OD) Size | 3/4 |
Length | 20 ft |
Details:
Style | 420 |
|---|---|
Type | 4070 |
Qty Pcs / Bag | 20 |
Master Qty Pcs / Box | 200 |
Lift Qty | 5200 |
Mueller Description 1 | 3/4 OD X 20 C/D CHARGED |
Mueller Description 2 | TYPE ACR (HARD) |
