Rubber Insulation Tube

Category: Refrigeration Unit
Rubber Insulation Tube


Product Details

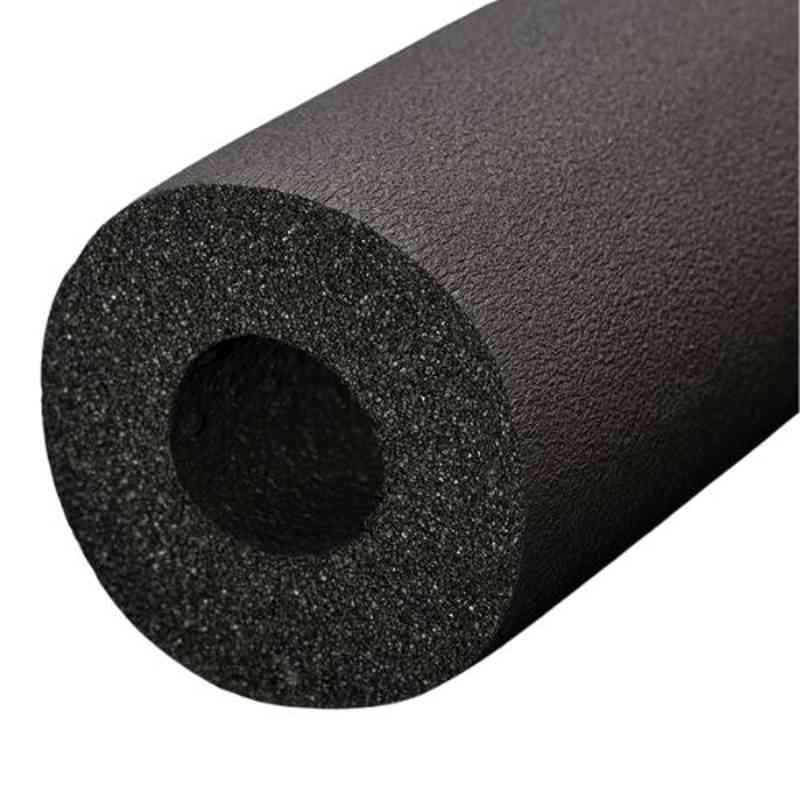

K-FLEX INSUL-TUBE

Introducing K-FLEX INSUL-TUBE, a highly flexible elastomeric foam insulation engineered from NBR/PVC with a closed-cell structure. This advanced insulation solution not only demonstrates its environmental commitment by eliminating CFCs, HFCs, HCFCs, PBDEs, formaldehyde, and fibers, but it also incorporates an EPA-registered antimicrobial agent, providing enhanced protection against mold, fungi, and bacterial growth. Moreover, K-FLEX INSUL-TUBE has earned the prestigious UL GREENGUARD Gold Certification, a testament to its low VOC emissions. Its vital physical properties have also received validation from Factory Mutual, ensuring its reliability and performance.



Sizes Available :

  1. 3/8"(10mm) x 3/4" Thickness, 2mtr ST' UAE
  2. 1/2"((12)13mm) x 3/4" Thickness, 2mtr ST 'UAE
  3. 5/8"((15)16mm) x 3/4" Thickness, 2mtr ST 'UAE
  4. 7/8"(22mm) x 3/4" Thickness, 2mtr ST ' UAE
  5. 1.1/8"(28mm) x 3/4" Thickness, 2mtr ST ' UAE
  6. 1.3/8"(35mm) x 3/4" Thickness, 2mtr ST ' UAE
  7. 1.5/8"(42mm) x 3/4" Thickness, 2mtr ST ' UAE
  8. 2.1/8"(54mm) x 3/4" Thickness, 2mtr ST 'UAE
  9. 2.3/8"(60mm) x 3/4" Thickness, 2mtr ST 'UAE
  10. 2.5/8"(65mm)x 1/4" Thickness, 2mtr ST 'UAE



Specifications:

SpecificationDetails
MaterialNBR/PVC
StructureClosed-Cell
Environmentally ConsciousCFCs, HFCs, HCFCs, PBDEs, Formaldehyde, and Fibers-Free
Antimicrobial AgentEPA-Registered
UL GREENGUARD Gold CertifiedYes
Flame Spread / Smoke Development<25/50 (ASTM E84)
Hot Surface PerformanceNo Cracking or Delamination (ASTM C411)
Operating Temperature Range-297°F* (-183°C) to +220°F (+104°C)** (ASTM C534)
Thermal Conductivity (75°F Mean Temp)        0.245 (0.0353) (ASTM C 177)
UV / Weather ResistancePass (QUV Chamber Test)
Density3-6 Lb/Ft3 (ASTM D 1667)
Water Vapor Permeability (Dry Cup)<0.01 Perm-In (ASTM E96)



Additional Informations
  • Contact us for more information.
    Our sales team will provide you with information and suggestions for selecting the right item.
We provide all types of Cold Room spare parts and Vehicle Refrigeration spare parts.
