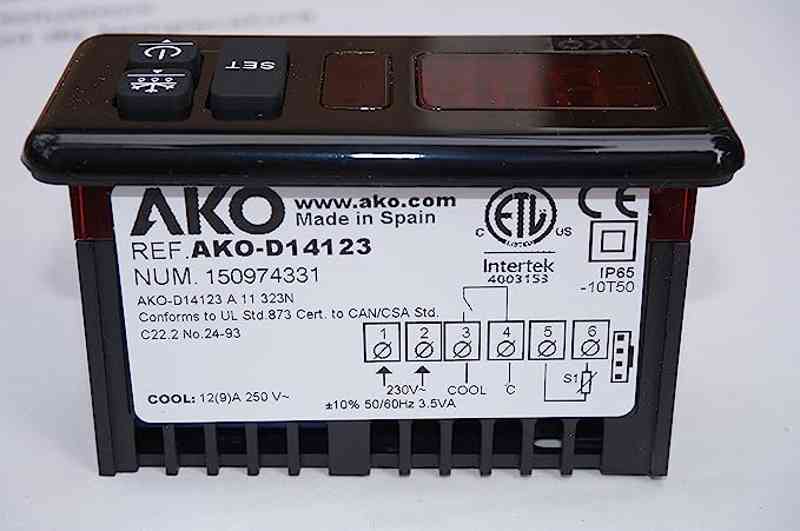

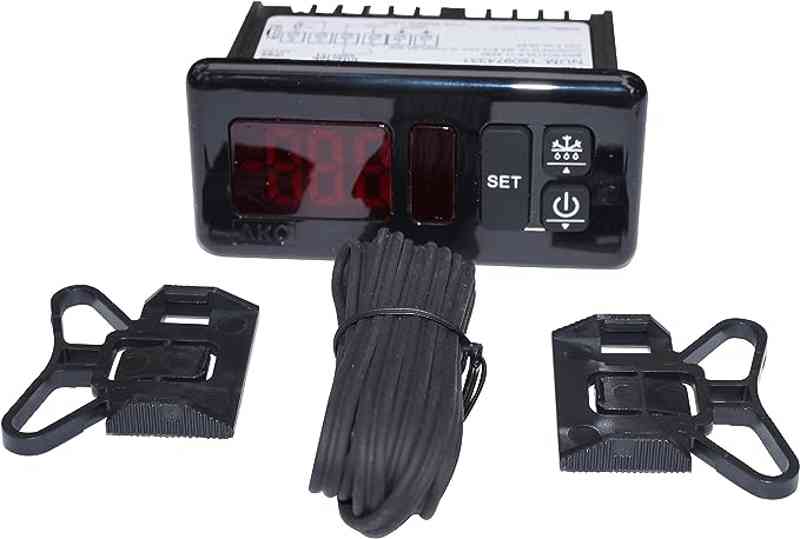

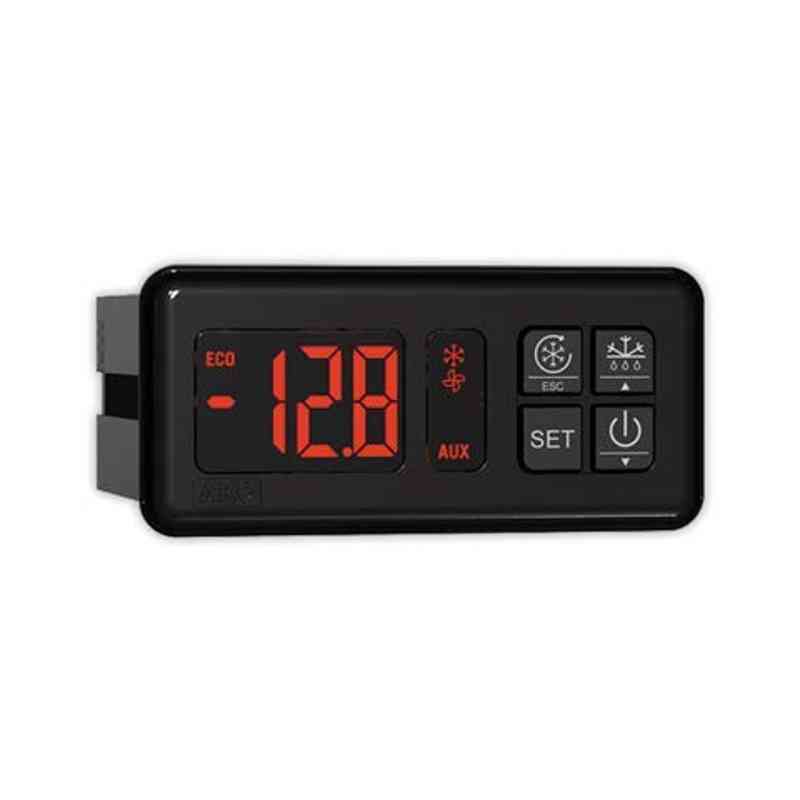

AKO D14123 Control Panel All-Purpose Commercial Mounting Refrigeration Thermostat

Product Details:

• AKO-D14123 is a digital 1-relay refrigeration control/thermostat with a single set point for temperature control in heating, cooling, or refrigeration control applications.
• AKO controller thermostats can replace all mechanical and digital thermostats for all refrigeration equipment with no limit on equipment size.
• Possible password protection for configuration.
• Range from -50ºC to +150 ºC, 1 relay output, panel mounting.
• Display and control in °C and °F with decimal points.
• Standard 34 x 76mm front panel mounting with IP65 gasket. Its bright display makes for easy reading.
• For refrigeration control applications the AKO-D14123 has off-cycle defrosting.
• It is used for Food Display Cases, Incubators, Walk-In Coolers.
• Compressor Control Temperature/Alarm/Defrost Switch Type SPDT.
• Switch Action 1 Opens on Rise 1 Closes on Rise Control Range (F) -58 Degrees to 302 Degrees Height (In.) 1-1/2 Width (In.).
• 3-7/64 Depth (In.) 2-13/32 Voltage 12/24 16A AC1 12 AC3 9 n/a NPT.
• IP65 Enclosure Refrigeration and Temperature Control UL Listed.

BRANDS : AKO
