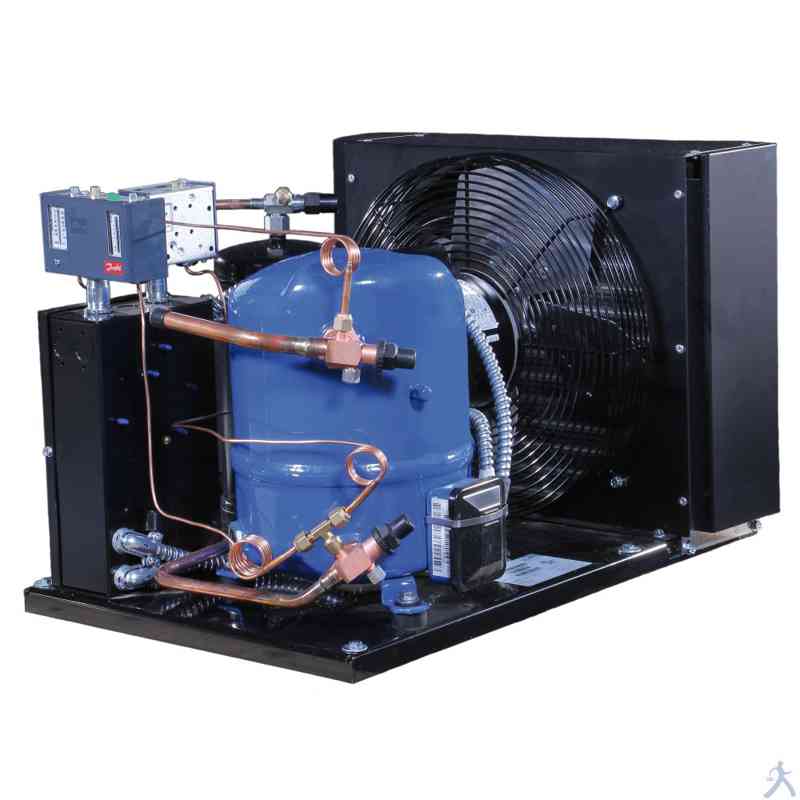

2 Hp Danfoss Condensing Unit
Product Details
2 HP DANFOSS CONDENSING UNIT
Designed for specific applications
High ambient coil designs
Quality components selected for longer life and reduced warranty costs
Includes: WF version includes: Electrical box, receiver, dual pressure control, fan cycling control, dual fan units larger than 3 HP use KPU fan cycling control, filter drier, sight glass, solenoid valve with coil.
Product Specifications:
| Specification | Details |
|---|---|
| Gross weight | 69 Kg |
| Net weight | 61.5 Kg |
| Volume | 363.63 Liter |
| Air flow @ 50Hz [m³/h] | 2000 m³/h |
| Applications | MBP |
BRANDS : DANFOSS
| Specification | Details |
|---|---|
| Compressor model | MT028-5 |
| Compressor power supply [V] | 230/1/50 |
| Condenser type | D4 |
| Description | OP-MCMD048MTA02G |
| Electrical code | G |
| Family | Optyma™ |
| Fan blade size [mm] | 350 mm |
| Fan current @ 50Hz [A] | 0.58 A |
| Fan current @ 60Hz [A] | 0.83 A |
| Fan power consumption @ 50Hz [W] | 130 W |
| Fan power consumption @ 60Hz [W] | 190 W |
| Fan power supply [V/Ph/Hz] | 230/1/50 |
| Fan voltage @ 50Hz (max) [V] [Max] | 230 V |
| Fan voltage @ 50Hz (max) [V] [Min] | 230 V |
| Frequency [Hz] | 50 Hz |
| High value of nominal voltage at 60Hz [V] | 230 V |
| In scope of WEEE and contain batteries | No |
| Length [mm] | 650 mm |
| Liquid line connection [in] | 1/2 in |
| Low value of voltage range at 60Hz [V] | 230 V |
| MCC | 20 A |
| Model number | OP-MCMD048MTA02G |
| No. of phases (compressor) | 1 |
| No. of phases (fan) | 1 |
| Number of fans | 1 |
| Phase | 1 |
| Product group | Condensing Units |
| Product Name Description | Bare unit |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Receiver approval | CE |
| Refrigerants | R22 |
| Region | Africa Europe Middle East |
| RLA | 14.3 A |
| Segment usage | Medium Back Pressure |
| Sound power @ 50Hz [db(A)] | 75 dBA |
| Speed Platform | Fixed-speed |
| Suction connection size [in] | 1/2 in |
| Technology | Reciprocating |
| Total height [mm] | 605 mm |
| Type | Optyma™ A02 |
| Version | A02 |
| Volt 50Hz Nom Max [V] | 230 V |
| Volt 60Hz Nom Max [V] | 230 V |
| Voltage 50Hz [V] | 230 V |
| Voltage 50Hz [V] [Max] | 230 V |
| Width [mm] | 630 mm |
