Danfoss Shut Off Valve Flare - 3/8"

  1. Home
  2. Refrigeration Unit
  3. Refrigeration Unit Accessories
  4. Danfoss Shut Off Valve Flare - 3/8"
Category: Refrigeration Unit
Danfoss Shut Off Valve Flare - 3/8"

Product Details

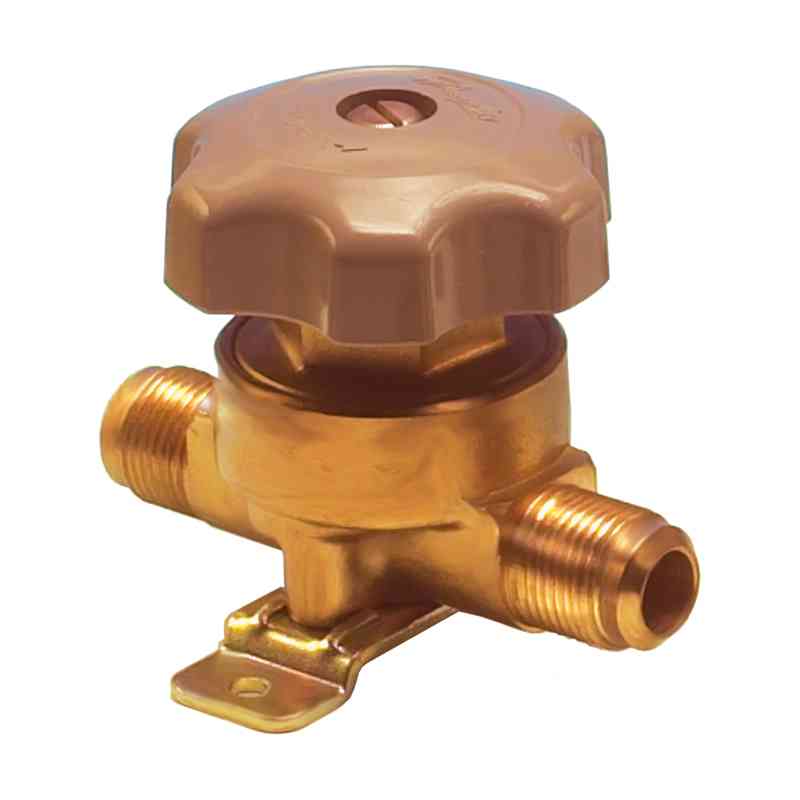

Danfoss Shut Off Valve Flare - 3/8"

Shut-off diaphragm valve, BML 10

009G0127

Inlet connection type: Flare, Outlet connection type: Flare, Inlet size [in]: 3/8 in, Outlet size [in]: 3/8 in



Specification                     Details
Gross Weight0.316 Kg
Net Weight0.286 Kg
Volume0.704 Liter
Approval

C UL US LISTED

EAC

LLC CDC TYSK

Body MaterialBrass



BRANDS : DANFOSS



SpecificationDetails
Connection MaterialBrass
Cv Value [gal/min]0.97 gal/min
DirectionStraightway
EquipmentHandwheel
Flow Direction IndicatorEmbossed 1-way arrow
Fluid Group

1

2

In Scope of WEEE and Contain BatteriesNo
Inlet Connection TypeFlare
Inlet Size [in]3/8 in
Kv Value [m³/h]0.84 m³/h
Lubricants Compatibility                                                           Oil-free applications
Max. Test Pressure [bar]36.4 bar
Max. Test Pressure [psig]528 psig
Max. Working Pressure [bar]28 bar
Max. Working Pressure [psig]406 psig
Oil-Free RefrigerantsR134a, R513A, R515B
Outlet Connection TypeFlare
Outlet Size [in]3/8 in
Packing FormatMulti pack
PED CategoryArt. 4, par. 3
Product AccessoriesBM/GBC valve accessories
Product GroupShut-off and regulating valves
Product Name DescriptionShut-off diaphragm valve
Quantity per Packing Format20 pc
REACH Candidate List SubstancesLead (CAS no. 7439-92-1)
RefrigerantsR134a, R22/R407C, R450A, R513A, R407H, R449B, R515B, R1234yf, R516A, R404A/R507A
SCIP Dossier No.39a55314-7dd3-4133-963f-63cfcc6269ba
ServiceableBM/GBC valve spare parts
Temperature Range [°C] (Max)100 °C
Temperature Range [°C] (Min)-55 °C
Temperature Range [°F] (Max)212 °F
Temperature Range [°F] (Min)-67 °F
TypeBML 10
UL Approval File NameREFRIGERANT VALVE 53R0
UL Approved RefrigerantsR134a, R22, R404A, R407C, R407H, R449B, R507A, R513A, R515B
Working Range [bar] (Max)21 bar
Working Range [bar] (Min)-1 bar
Working Range [psig] (Max)304 psig
Working Range [psig] (Min)-14 psig



Additional Informations
  • Contact us for more information
    Our sales team will provide you with information and suggestion for selecting the right item.
