Danfoss Sight Glass Flare - Sgi 12 1/2"

Product Details

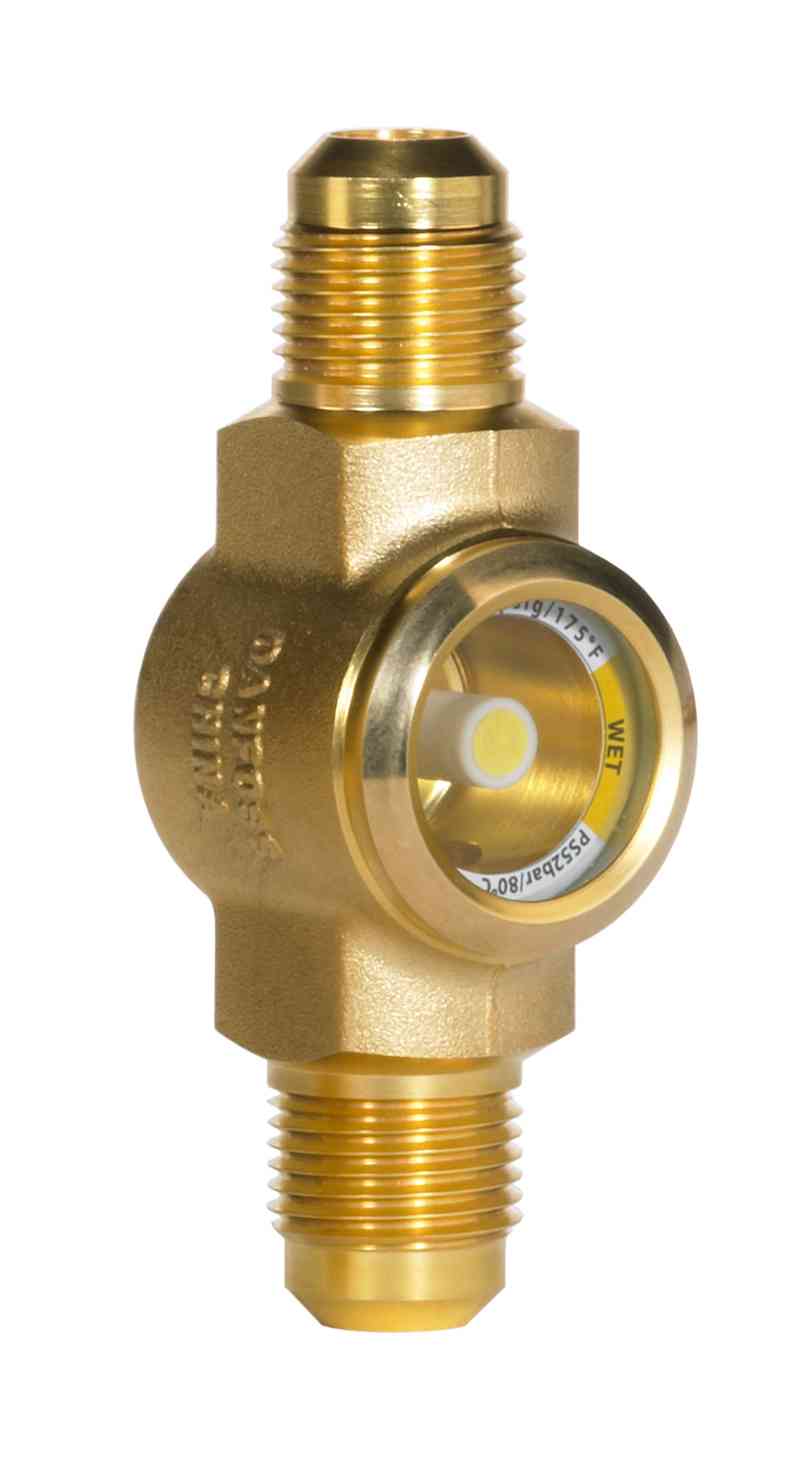

Danfoss Sight Glass Flare - SGI 12 1/2"

SGP 12 N, Sight glass, Flare, 12.00 mm, Flare, 12.00 mm

014L0163

Inlet connection type: Flare, Inlet size [mm]: 12.00, Outlet connection type: Flare, Outlet size [mm]: 12.00

SpecificationDetails
Gross Weight0.224 Kg
Net Weight0.207 Kg
Volume0.148 Liter
Approval File NameREF. LIQUID INDICATOR 76H4
Approval

C UL US LISTED

EAC

Body MaterialBrass



BRANDS : DANFOSS

SpecificationDetails
Connection MaterialBrass
Green: Max Moisture Concentration @25°CR134a: 30 ppm, R22: 30 ppm, R404A: 20 ppm, R407A: 29 ppm, R407C: 30 ppm, R407F: 30 ppm, R410A: 66 ppm, R448A: 28 ppm, R449A: 29 ppm, R450A: 23 ppm, R452A: 20 ppm, R513A: 22 ppm, R507A: 15 ppm.
Green: Max Moisture Concentration @43°CR134a: 45 ppm, R22: 50 ppm, R404A: 25 ppm, R407A: 48 ppm, R407C: 60 ppm, R407F: 60 ppm, R410A: 135 ppm, R448A: 70 ppm, R449A: 53 ppm, R450A: 46 ppm, R452A: 30 ppm, R513A: 22 ppm, R507A: 30 ppm.
In Scope of WEEE and Contain BatteriesNo
Inlet Connection TypeFlare
Inlet Internal/ExternalExternal
Inlet Size [in]1/2 in
Inlet Size [mm]12 mm
Lubricants CompatibilityOil-free applications
Max. Working Pressure [bar]52 bar
Max. Working Pressure [psig]754 psig
Moisture IndicatorN indicator
Oil-Free RefrigerantsR1234ze(E), R134a, R513A, R515B
Outlet Connection TypeFlare
Outlet Internal/ExternalExternal
Outlet Size [in]1/2 in
Outlet Size [mm]12 mm
Packing FormatMulti pack
Product AccessoriesGeneric accessories
Product GroupSight glasses
Product Name DescriptionSight glass
Quantity per Packing Format25 pc
REACH Candidate List Substances

Lead (CAS no. 7439-92-1)

Cobalt dichloride (CAS no. 7646-79-9)

Refrigerants                                                                                                                R134a, R22, R404A, R407A, R407C, R407F, R410A, R448A, R449A, R450A, R452A, R513A, R1233zd(E), R407H, R515B, R744, R463A, R1234yf, R1234ze(E), R32, R452B, R454B, R454C, R455A, R507A.
SCIP Dossier No.323c7b85-ff73-43cd-8fce-a44eabbf5297
ServiceableNo
Temperature Range [°C] (Max)80 °C
Temperature Range [°C] (Min)-50 °C
Temperature Range [°F] (Max)175 °F
Temperature Range [°F] (Min)-58 °F
TypeSGP 12 N
UL Approval File NameREF. LIQUID INDICATOR 76H4
UL Approved RefrigerantsR1233zd(E), R134a, R22, R404A, R407A, R407C, R407F, R407H, R410A, R448A, R449A, R450A, R452A, R463A, R507A, R513A, R515B, R744.
Yellow: Min Moisture Concentration @25°CR134a: 100 ppm, R22: 120 ppm, R404A: 70 ppm, R407A: 115 ppm, R407C: 140 ppm, R410A: 266 ppm, R448A: 110 ppm, R449A: 105 ppm, R450A: 148 ppm, R452A: 79 ppm, R513A: 75 ppm, R407F: 168 ppm, R507A: 60 ppm.
Yellow: Min Moisture Concentration @43°CR134a: 170 ppm, R404A: 100 ppm, R407C: 225 ppm, R507A: 110 ppm, R22: 200 ppm, R407A: 192 ppm, R407F: 240 ppm, R410A: 540 ppm, R448A: 227 ppm, R449A: 200 ppm, R450A: 245 ppm, R452A: 143 ppm, R513A: 123 ppm.

Additional Informations
  • Contact us for more information.
    Our sales team will provide you with information and suggestions for selecting the right item.
