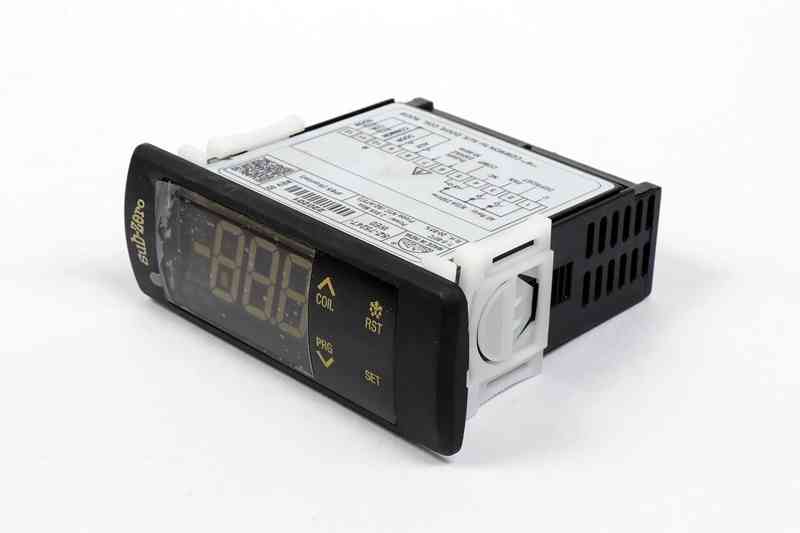

Subzero Sz-7524t Touch Sensitive Temperature Controller

Product Details

SMALL COLD ROOMS/FREEZERS SZ-7524-T

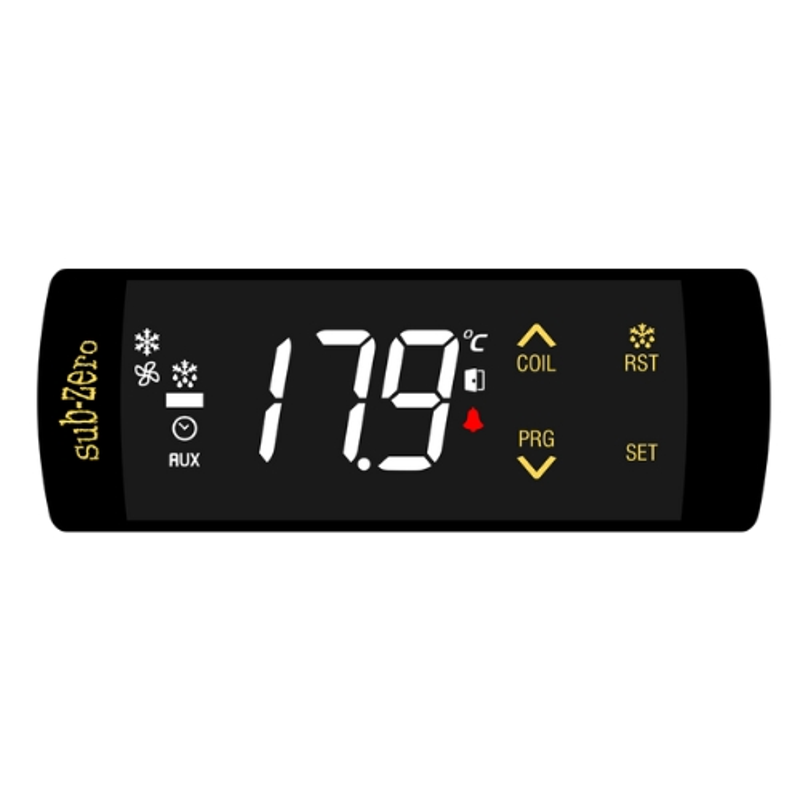

  • 3 X 17mm 7-segment display & 10 LEDs for Indication.

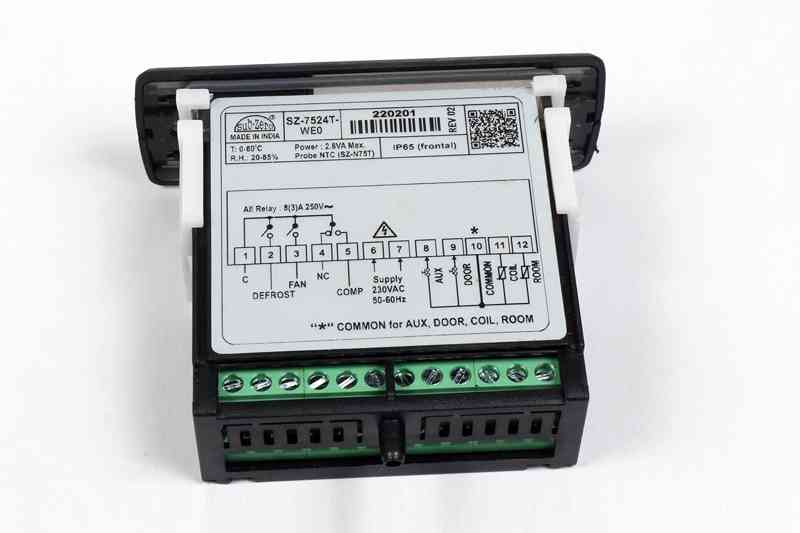

  • Relay output: Compressor + Defrost + Evap. Fan.
  • Compressor protection algorithm.
  • Auto/Man defrosting facility (Time/ Temp based).



BRANDS : SUB-ZERO



SpecificationDetails
Display7 Segment Display, 3 x 17mm

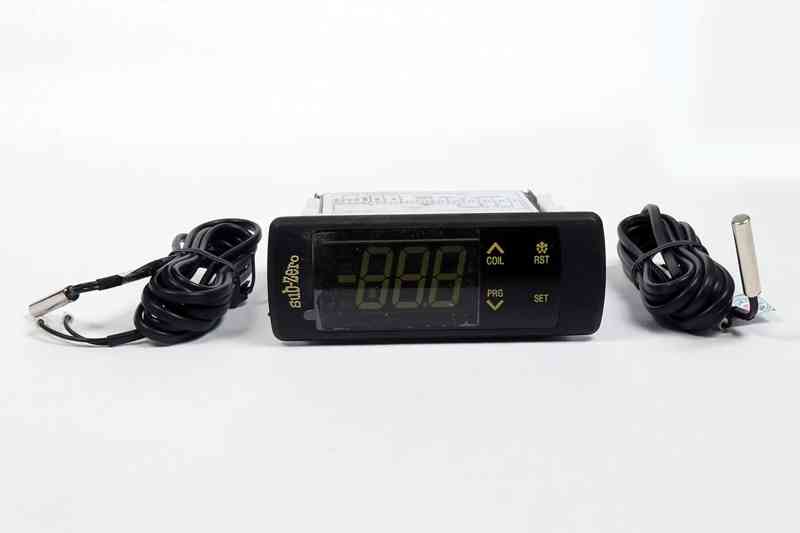

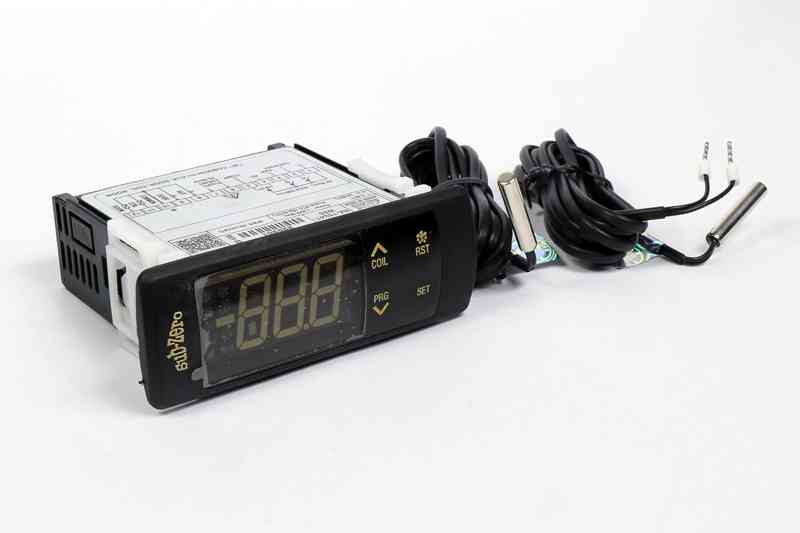

Probe InputsNTC, Defrost (Coil)
Relay OutputsCompressor : 8(3)A
Defrost : 8(3)A
Power Input230VAC +/-10%,50-60HZ
Temperature Range-40.0°C to +50.0°C
Size94 x 35.3mm
Measuring Range-50°C TO 50°C
Storage Temperature-20°C TO 70°C
Operating Temperature5°C TO 50°C
Probe Tolerance+/- 0.3°C AT 25°C
Mounting TypePanel Mount, Panel Cutout : 71 x 29mm
ApplicationFreezers, Cold Rooms, Small Cold Rooms, Refrigerated Tables

Additional Informations
  • Contact us for more information.
    Our sales team will provide you with information and suggestion for selecting the right item.
