Castel Solenoid Valve Flare 1/4"

  1. Home
  2. Refrigeration Unit
  3. Refrigeration Unit Accessories
  4. Castel Solenoid Valve Flare 1/4"
Category: Refrigeration Unit

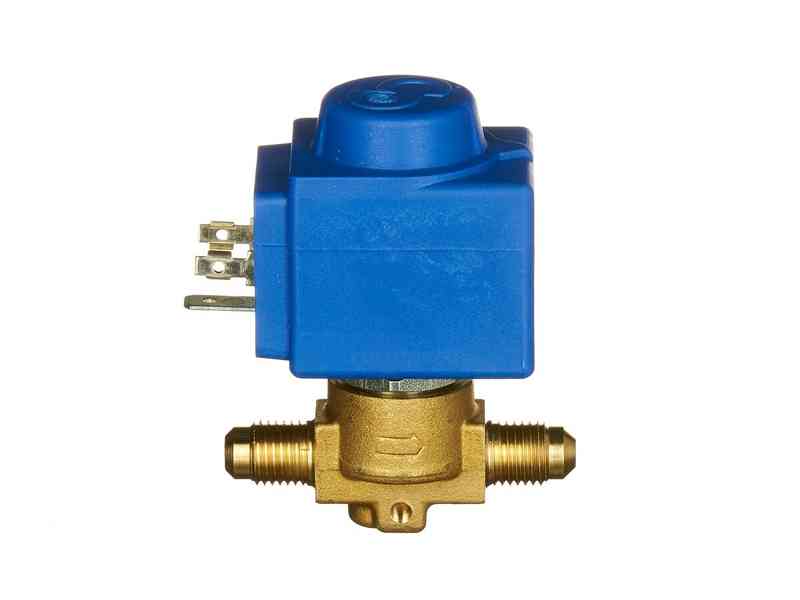

Castel Solenoid Valve Flare 1/4"

Product Details

Solenoid valves are designed for installation on commercial refrigeration systems and commercial and industrial air conditioning systems employing HCFC and HFC Refrigerants.

Product use :

Accessories for use with the following ASHRAE 34:2019 refrigerants, Class A1:

  • HCFC (R22)
  • HFC (R134a, R404A, R407C, R410A, R507)
  • HFO (R1234ze)
  • HFO + HFC (R448A, R449A, R450A, R452A, R513A, R515A, R515B)

These valves are sold in both the version without the coil (S suffix) and the version with the coil (A6 suffix for coils at 220 VAC and A7 suffix for coils at 240 VAC).

BRANDS : CASTEL

Product Specifications:

Operating principleDirect acting
Coil Type (1)HF2HF3HF4HM2HM3HM4CM2
Connections SAE Flare1/4"
Kv [m³/h]0,175
PS [bar]45
TS [°C] min.-35
TS [°C] max.+110
Connection Size (Male Flare)1/4"
Port Size2.5 mm
Items Sold Separately2711275 - Castel Junction Box
Inclusions240V Coil
Refrigerant TypeR22, R134a, R404A, R407C, R410A, R507, R1234ZE, R448A, R449A, R450A, R452A, R513A
Kv Factor0.175 m3/h
Maximum Opening Differential Pressure2100 kPa
Minimum Opening Differential Pressure0 kPa
Maximum Working Pressure4500 kPa
Temperature Range-35 to 110 deg C



Additional Informations
  • Contact us for more information.
    Our sales team will provide you with information and suggestion for selecting the right item.
