Danfoss Coil 220v

Product Details

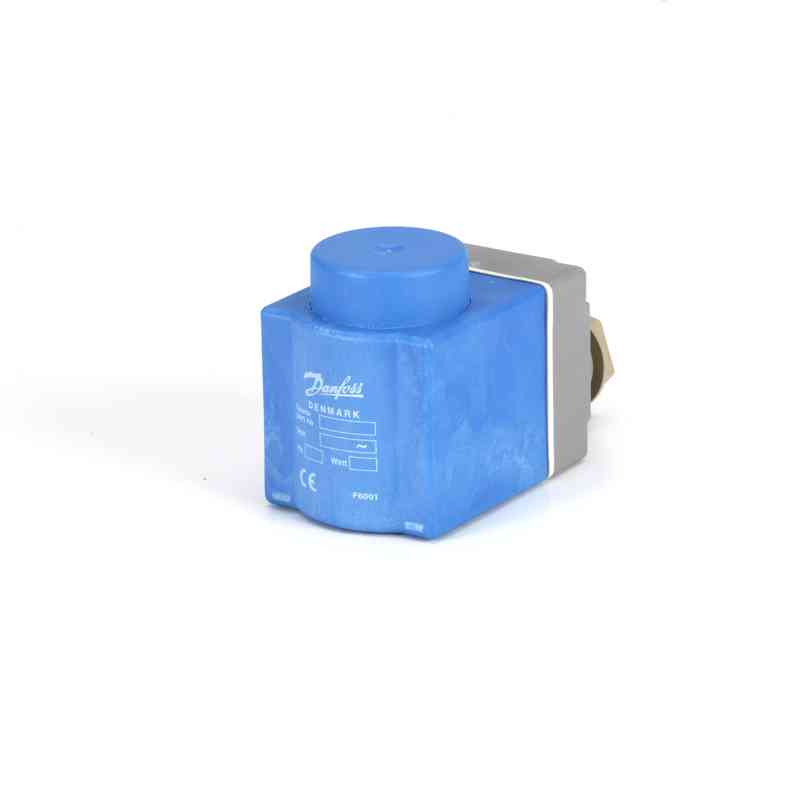

Solenoid coil, BE230CS, Terminal box, Supply voltage [V] AC: 220 - 230, Multi pack

018F6732

Electrical connection: Terminal box, Supply voltage [V] AC: 220 - 230, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP67

Product Specifications:

SpecificationDetails
Gross weight0.34 Kg
Net weight0.311 Kg
Volume0.31 Liter
TypeBE230CS
Type designationBE230CS
Actuator size13.5 mm



BRANDS : DANFOSS




SpecificationDetails
Ambient temperature range [°C] [max]50 °C
Ambient temperature range [°C] [min]-40 °C
Ambient temperature range [°F] [Max]120 °F
Ambient temperature range [°F] [Min]-40 °F
ApprovalLLC CDC TYSK
CE
EAC
UKCA
Cable diameter [mm] [Max]11 mm
Cable diameter [mm] [Min]6 mm
Coil connectionConnection box
Coil design standardVDE 0580
Coil fasteningClip-on
Coil winding insulation classClass H to IEC 85
ColourBlue
ComplianceEN 60730-1
Conductor area [mm2]0.75 - 1.5 mm2
Duty ratingContinuous
Electrical connectionTerminal box
Electrical connection sizePg 13.5
Enclosure rating IPIP67
Frequency [Hz]50/60 Hz
Identical product018F8732
Packing formatMulti pack
Parts Program nameEV210B
EV212B
EV220B 15 - 50
EV220B 6 - 22
EV220B 65 - 100
EV222B
EV224B
EV227B
EV250B
EV251B
Power consumption 50Hz [VA]31 VA
Power consumption 60Hz [VA]24 VA
Power consumption [W] 50Hz17 W
Power consumption [W] 60Hz14 W
Product AccessoriesSolenoid coil accessories
Product GroupSolenoid valves
Product Name DescriptionSolenoid coil
Quantity per packing format32 pc
REACH Candidate List substances 0.1Lead (CAS no. 7439-92-1)
Rel. Humidity [% RH] [Max]100 %
Rel. Humidity [% RH] [min]0 %
SCIP dossier no.23785618-b379-4da7-a913-ecd40c8fae6d
SCIP dossier product nameSolenoid coils
ServiceableNo
Spare part number018F6193
Supply voltage 50Hz Max [V]230 V
Supply voltage 50Hz Min [V]220 V
Supply voltage 60Hz Max [V]230 V
Supply voltage 60Hz Min [V]220 V
Supply voltage [V] AC [max]230 V
Supply voltage [V] AC [min]220 V



Additional Informations
  • Contact us for more information
    Our sales team will provide you with information and suggestion for selecting the right item.
