Danfoss Expansion Valve Ten2 R134a
Product Details

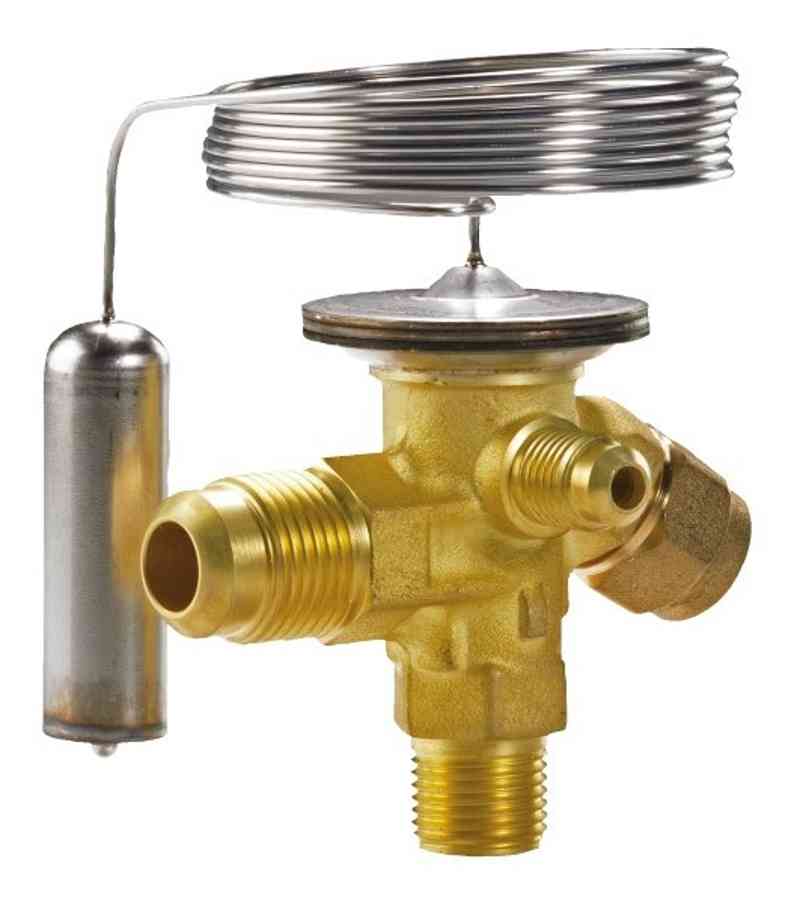

Thermostatic expansion valve, TE 2, R134a/R513A
068Z3348
Temperature range [°C]: -40 - 10, Pressure equalization: Externally equalized
Key Specifications:
| Product Name | Thermostatic Expansion Valve |
|---|---|
| Approval | EAC, LLC CDC TYSK |
| Body Material | Brass |
| Capillary Tube Length [in] | 59 in |
| Capillary Tube Length [mm] | 1500 mm |
| Connection Material | Brass |
| Direction | Angleway |
| Equalization Connection Type | Flare |
BRANDS : DANFOSS
| Specification | Details |
|---|---|
| Equalization Size [in] | 1/4 in |
| Flow Direction | Bi-flow with orifice 01-05 |
| Flow Direction Indicator | Embossed 1-way arrow |
| Fluid Group | 2 |
| Identical Product | 068Z3543 |
| In Scope of WEEE and Contain Batteries | No |
| Inlet Connection Type | Flare |
| Inlet Size [in] | 3/8 in |
| Max. Working Pressure [bar] | 34 bar |
| Max. Working Pressure [psig] | 500 psig |
| Outlet Connection Type | Flare |
| Outlet Size [in] | 1/2 in |
| Packing Format | Multi-pack |
| Parts Included | Bulb strap |
| Parts Program Name | T2/TE2 |
| PED Category | Art. 4, par. 3 |
| Pressure Equalization | Externally equalized |
| Product Accessories | TXV accessories |
| Product Group | Expansion valves |
| Product Name Description | Thermostatic expansion valve |
| Quantity per Packing Format | 20 pc |
| Rated Cap. Cond. Range N [IMP] | OS=10.8 ºF tcond=100 ºF tevap=40 ºF tliq=98 ºF |
| Rated Cap. Cond. Range N [SI] | OS=6K tcond=38 ºC tevap=4.4 ºC tliq=37 ºC |
| REACH Candidate List Substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a/R513A |
| SCIP Dossier No. | 6450ee16-252d-49df-8f77-4136a47bb857 |
| SCIP Dossier Product Name | T2/TE2 |
| Serviceable | TXV spare parts |
| Static Superheat (SS) [°C] | 4 °C |
| Static Superheat (SS) [°F] | 7.2 °F |
| Superheat Setting | Adjustable |
| Temperature Range [°C] [Max] | 10 °C |
| Temperature Range [°C] [Min] | -40 °C |
| Temperature Range [°F] [Max] | 50 °F |
| Temperature Range [°F] [Min] | -40 °F |
| Type | TE 2" |
