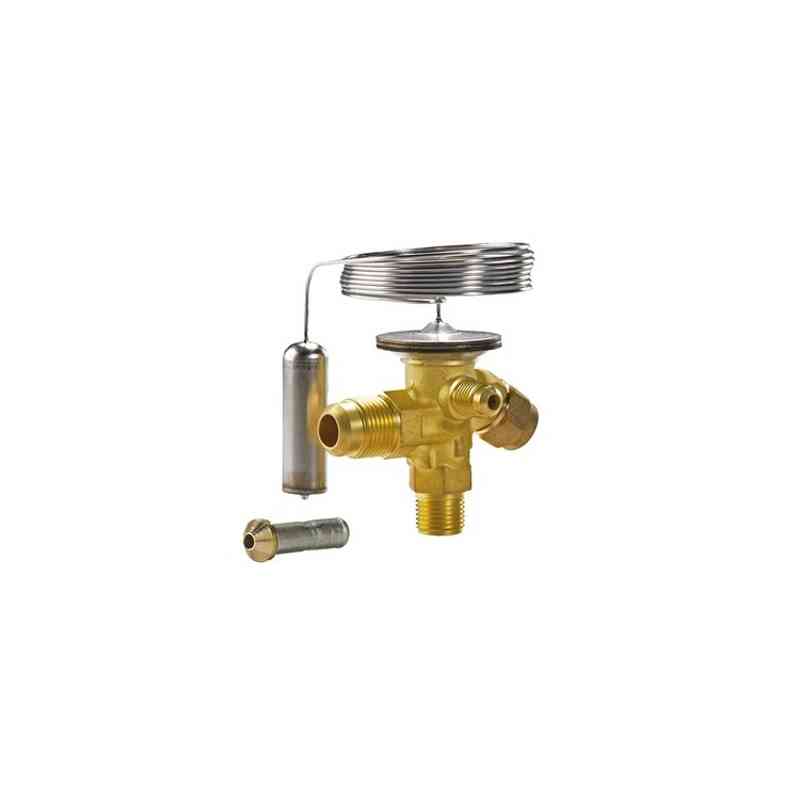

Danfoss Expansion Valve Tes2 R404

Product Details

Thermostatic expansion valve, TE 2, R404A/R507A

068Z3403

Temperature range [°C]: -40 - 10, Pressure equalization: Externally equalized

Product NameThermostatic Expansion Valve
ApprovalEAC, LLC CDC TYSK
Body MaterialBrass
Capillary Tube Length [in]59 in
Capillary Tube Length [mm]1500 mm
Connection MaterialBrass

BRANDS : DANFOSS

Key Specifications:

SpecificationDetails
DirectionAngleway
Equalization Connection TypeFlare
Equalization Size [in]1/4 in
Flow DirectionBi-flow with orifice 01-05
Flow Direction IndicatorEmbossed 1-way arrow
Fluid Group2
Identical Product068Z3555
In Scope of WEEE and Contain BatteriesNo
Inlet Connection TypeFlare
Inlet Size [in]3/8 in
Max. Working Pressure [bar]34 bar
Max. Working Pressure [psig]500 psig
Outlet Connection TypeFlare
Outlet Size [in]1/2 in
Packing FormatMulti-pack
Parts IncludedBulb strap
Parts Program NameT2/TE2
PED CategoryArt. 4, par. 3
Pressure EqualizationExternally equalized
Product AccessoriesTXV accessories
Product GroupExpansion valves
Product Name DescriptionThermostatic expansion valve
Quantity per Packing Format20 pc
Rated Cap. Cond. Range N [IMP]OS=10.8 ºF tcond=100 ºF tevap=40 ºF tliq=98 ºF
Rated Cap. Cond. Range N [SI]OS=6K tcond=38 ºC tevap=4.4 ºC tliq=37 ºC
REACH Candidate List SubstancesLead (CAS no. 7439-92-1)
RefrigerantsR404A/R507A
SCIP Dossier No.6450ee16-252d-49df-8f77-4136a47bb857
SCIP Dossier Product NameT2/TE2
ServiceableTXV spare parts
Static Superheat (SS) [°C]4 °C
Static Superheat (SS) [°F]7.2 °F
Superheat SettingAdjustable
Temperature Range [°C] [Max]10 °C
Temperature Range [°C] [Min]-40 °C
Temperature Range [°F] [Max]50 °F
Temperature Range [°F] [Min]-40 °F
TypeTE 2"

Additional Informations
  • Contact us for more information.
    Our sales team will provide you with information and suggestions for selecting the right item.
