Product Details

Application:

• Under floor Fridge Chambers systems
• Pipe and tank systems
• Heating systems for wood flooring

BRANDS : DANFOSS

Key Specifications:

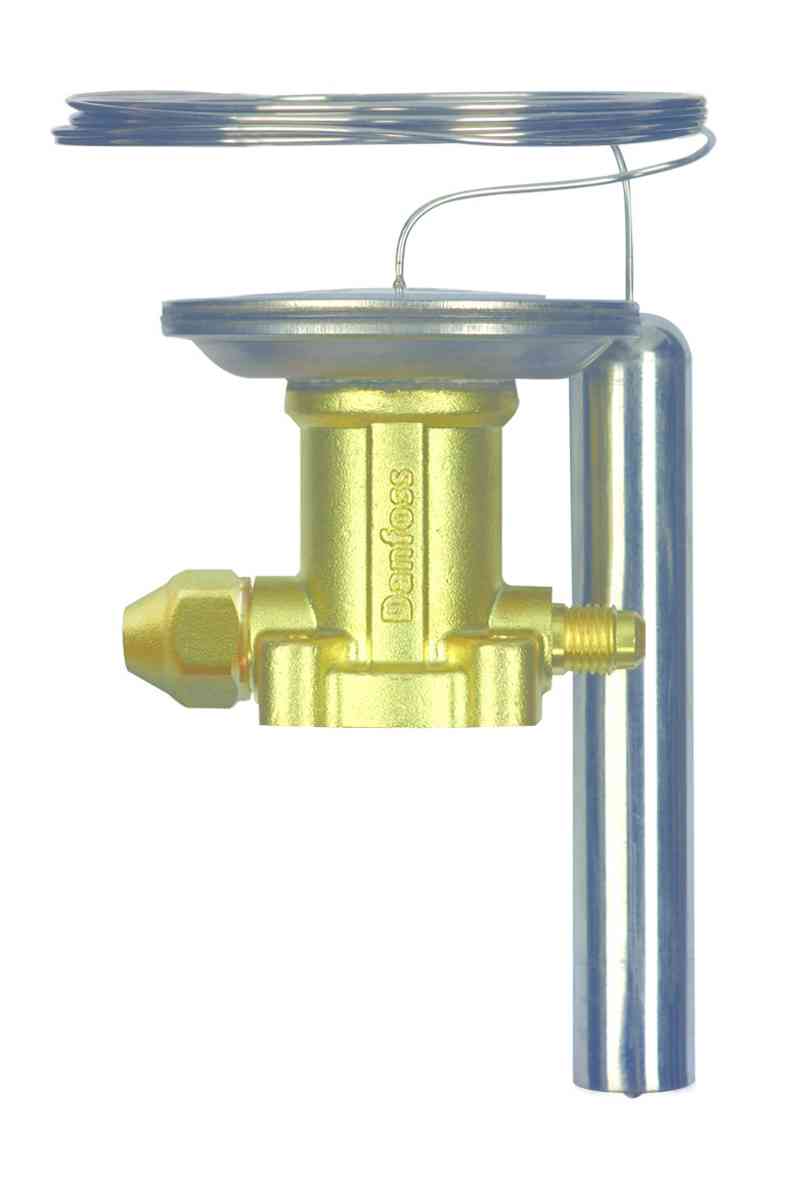

TEX5 Danfoss thermostatic expansion valve

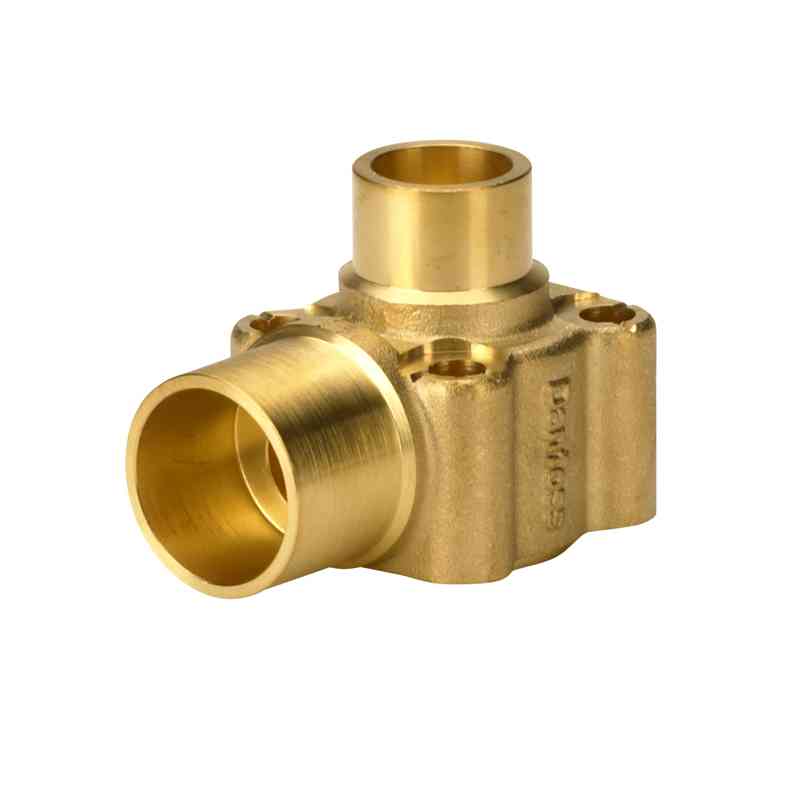

• Complete valve consists of thermal element + orifice + valve housing.
• connection material : brass
• Pressure equalization : external
• with exchangeable orifice (thermal elements)
• without passage
• Range "N" -40 to +10°C - without MOP
• Danfoss no.: 067B3250
• refrigerant : R22 - 1/4" flare
• capillary : 3 meters
• Temperature range min. -40 max. 10 °C
• Temperature range min. -40 max. 50°F
• Flow direction indicator : Embossed 1-way arrow
