Danfoss Expansion Valve Tx2 R22

  1. Home
  2. Refrigeration Unit
  3. Refrigeration Unit Accessories
  4. Danfoss Expansion Valve Tx2 R22
Category: Refrigeration Unit
Danfoss Expansion Valve Tx2 R22

Product Details

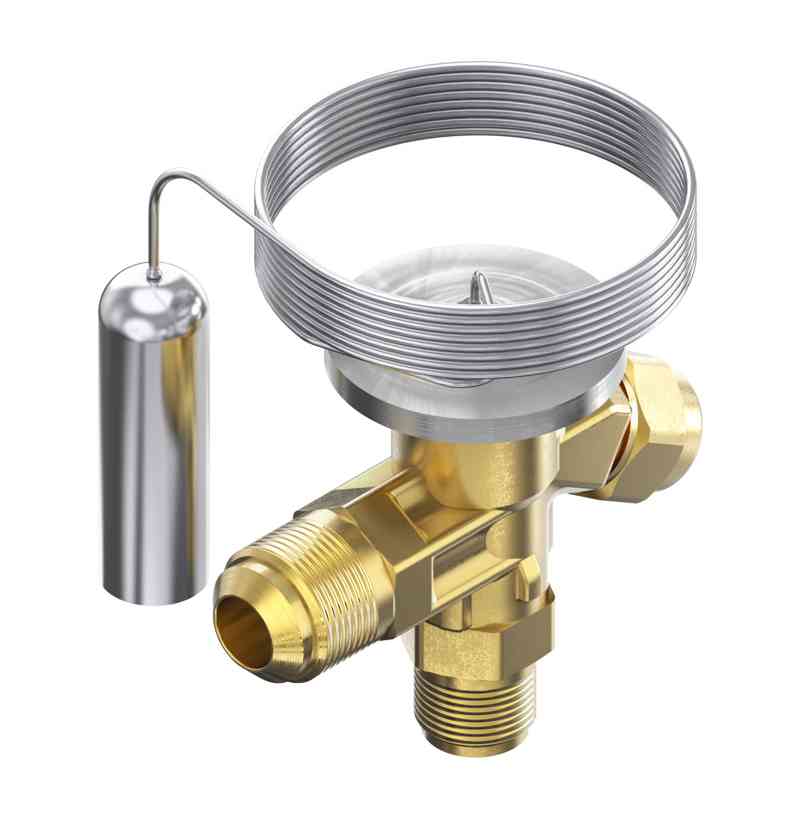

Thermostatic Expansion Valve - T 2, R22/R407C (068Z3206)

Product NameT 2, R22/R407C (068Z3206)
Product AccessoriesTXV Accessories
Product GroupExpansion Valves
Product Name DescriptionThermostatic Expansion Valve
Type                                                      T 2



BRANDS : DANFOSS





Key Specifications:

ParameterValue
Part Number068Z3206
Inlet Connection Type                                                              Flare
Inlet Size [in]3/8 in
Outlet Connection TypeFlare
Outlet Size [in]1/2 in
Temperature Range [°C]-40 to 10 °C
Temperature Range [°F]-40 to 50 °F
Pressure EqualizationInternally Equalized
Max. Working Pressure [bar]34 bar
Max. Working Pressure [psig]500 psig
Body MaterialBrass
Capillary Tube Length [in]59 in
Capillary Tube Length [mm]1500 mm
Connection MaterialBrass
DirectionAngleway
Flow DirectionSingle-Flow
Flow Direction IndicatorEmbossed 1-Way Arrow
Fluid Group2
Identical Product068Z3466
Gross Weight0.306 Kg
Net Weight0.284 Kg
Volume0.477 Liter
Packing FormatMulti-Pack
Parts IncludedBulb Strap
Parts Program NameT2/TE2
PED CategoryArt. 4, par. 3
Quantity per Packing Format20 pcs
Rated Cap. Cond. Range N [IMP]OS=10.8 ºF, tcond=100 ºF, tevap=40 ºF, tliq=98 ºF
Rated Cap. Cond. Range N [SI]OS=6K, tcond=38 ºC, tevap=4.4 ºC, tliq=37 ºC
REACH Candidate List SubstancesLead (CAS no. 7439-92-1)
RefrigerantsR22/R407C
ServiceableTXV Spare Parts
Static Superheat (SS) [°C]4 °C
Static Superheat (SS) [°F]7.2 °F
Superheat SettingAdjustable
Temperature Range [°C] [Max]10 °C
Temperature Range [°C] [Min]-40 °C
Temperature Range [°F] [Max]50 °F
Temperature Range [°F] [Min]-40 °F

Explore the T 2 Thermostatic Expansion Valve designed for a temperature range of -40 to 10 °C (-40 to 50 °F) and optimized for R22/R407C refrigerants. Its internally equalized pressure equalization ensures precise control in various cooling applications.

Additional Informations
  • Contact us for more information
    Our sales team will provide you with information and suggestion for selecting the right item.
