Danfoss Filter Drier Flare - Dcl164 1/2"

Product Details

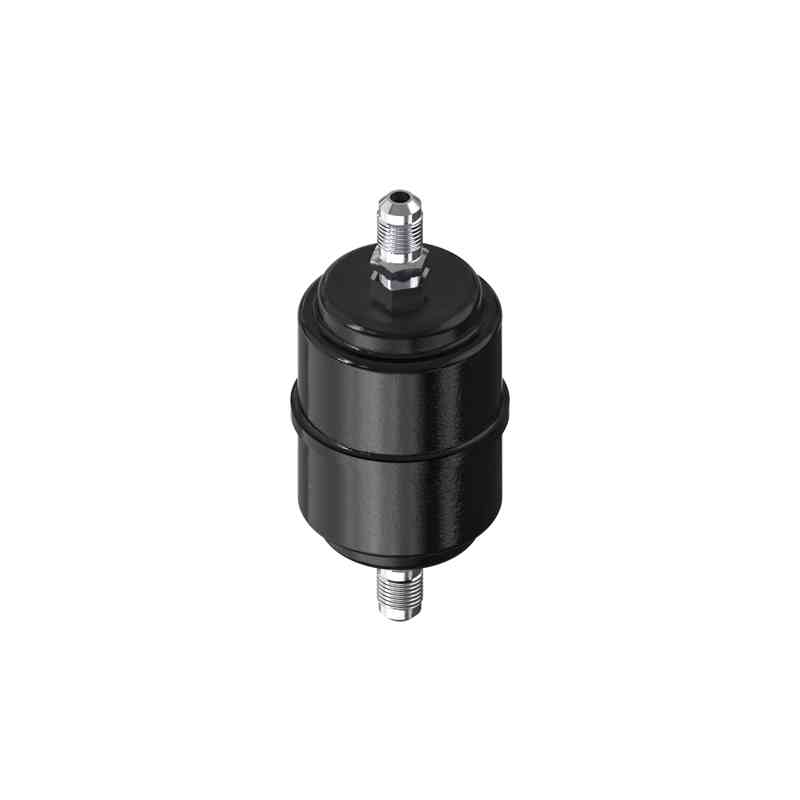

Danfoss Filter Drier Flare - DCL164 1/2"

Hermetic filter drier, DCL, 16 cu.in., Steel

023Z500991

Inlet connection type: Flare, Outlet connection type: Flare, Core Size code: 16 cu.in.

SpecificationDetails
Gross Weight0.819 Kg
Net Weight0.728 Kg
Volume1.311 Liter
Acid Capacity [g]3.11 g
Acid Capacity [oz]0.11 oz

BRANDS : DANFOSS

SpecificationDetails
Activated Alum/Molecular Sieve [%]20% / 80%
ApprovalUL
Body MaterialSteel
BracketNo
BrandELIMINATOR
Connection MaterialSteel
CoreSolid Core
Core Size Code16 cu.in.
Drying Capacity [Drops of Water] at 24°CR134a: 443
Drying Capacity [Drops of Water] at 52°CR134a: 405
Flow Capacity [kW]R134a: 26.6
Flow Capacity [TR]R134a: 7.6
Flow Direction IndicatorLabel printed 1-way arrow
Fluid Group2
In Scope of WEEE and Contain BatteriesNo
Inlet 1 Connection Size [in]1/2 in
Inlet Connection Size [mm]12 mm
Inlet Connection TypeFlare
Liquid Capacity Cond (ARI 710-2009) [SI]Delta p=0.07bar, tliq=30°C, tvap=-15°C
Liquid Capacity Cond (ARI 710-2009) [IMP]Delta p=1psi, tliq=86°F, tvap=5°F
Lubricants CompatibilityOil-free applications
Max. Working Pressure [bar]46 bar
Max. Working Pressure [psig]667 psig
Net Volume [fl. oz US]7.63 Fluid Ounce US
Net Volume [L]0.226 L
Oil-Free RefrigerantsR1234ze(E), R134a, R513A, R515A
Outlet 1 Connection Size [in]1/2 in
Outlet Connection Size [mm]12 mm
Outlet Connection TypeFlare
Packing FormatMulti pack
PED CategoryArt. 4, par. 3
Product AccessoriesGeneric accessories
Product DescriptionLiquid line filter drier
Product GroupFilter driers
Product Name DescriptionHermetic filter drier
Quantity per Packing Format12 pc
RefrigerantsR1234yf, R125, R134a, R22/R407C, R23, R32, R404A, R407A, R407F, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454B, R455A, R507A, R513A, R1234ze(E), R1233zd(E), R407H, R454A, R454C, R463A, R515B, R516A
ServiceableNo
Shell Volume [fl. oz US]11.97 Fluid Ounce US
Shell Volume [L]0.35 L
Solid Core Surface [cm²]183 cm²
Solid Core Surface [in²]28.34 in²
Solid Core Volume [cm³]128 cm³
Solid Core Volume [in³]7.84 in³
Temperature Range [°C] (Max)                                                                                           70 °C
Temperature Range [°C] (Min)-40 °C
Temperature Range [°F] (Max)160 °F
Temperature Range [°F] (Min)-40 °F
TypeDCL
Type DesignationDCL 164
UL Approval File NameSA6398
UL Approved RefrigerantsR125, R134a, R22, R23, R404A, R407A, R407C, R407F, R410A, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R507A, R513A

Additional Informations
  • Contact us for more information.
    Our sales team will provide you with information and suggestions for selecting the right item.
