Danfoss Orifice No: 03

Product Details

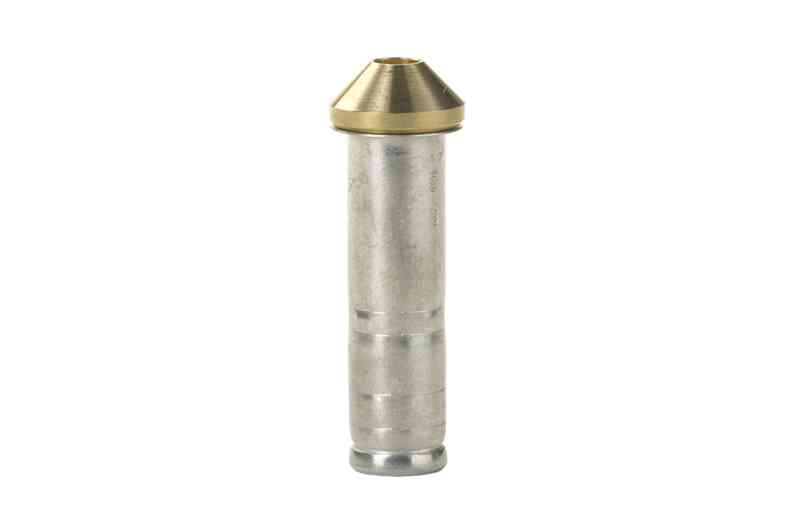

Danfoss Orifice No: 03

Orifice for expansion valve, ORF, R407C; R236fa; R452A; R407A; R134a/R513A; R404A/R507A; R448A; R23; R22/R407C; R449A

068-2006

Temperature range [°C]: -40 - 10

Product Specifications:

SpecificationDetails
Gross weight17.222 Gram
Net weight0.013 Gram
Volume0.018 Liter
Approval                         EAC
LLC CDC TYSK
DesignSAE flare only
Orifice size03



BRANDS : DANFOSS



SpecificationDetails
Fluid Group1
In scope of WEEE and contain batteriesNo
Packing formatMulti pack
Parts Program nameT2/TE2
PED categoryArt. 4, par. 3
Product accessoriesTXV accessories
Product groupExpansion valves
Product Name DescriptionOrifice for expansion valve
Quantity per packing format25 pc
Rated cap. cond. Range N [IMP]tcond=100 ºF
tevap=40 ºF
tliq=98 ºF
Rated cap. cond. Range N [SI]                                                   tcond=38 ºC
tevap=4.4 ºC
tliq=37 ºC
Rated cap. R134a, Range N [kW]4.3 kW
Rated cap. R134a, Range N [TR]1.2 TR
Rated cap. R22, Range B [kW]3.9 kW
Rated cap. R22, Range B [TR]1.1 TR
Rated cap. R22, Range N [kW]8 kW
Rated cap. R22, Range N [TR]2.3 TR
Rated cap. R404A, Range B [kW]3.2 kW
Rated cap. R404A, Range B [TR]0.91 TR
Rated cap. R404A, Range N [kW]6.3 kW
Rated cap. R404A, Range N [TR]1.8 TR
Rated cap. R407C, Range N [kW]8.1 kW
Rated cap. R407C, Range N [TR]2.3 TR
Rated cap. R507, Range B [kW]3.2 kW
Rated cap. R507, Range B [TR]0.91 TR
Rated cap. R507, Range N [kW]6.3 kW
Rated cap. R507, Range N [TR]1.8 TR
Rated cap. R513A, Range N [kW]3.7 kW
Rated cap. R513A, Range N [TR]1 TR
REACH Candidate List substancesLead (CAS no. 7439-92-1)
RefrigerantsR22/R407C, R23, R236fa, R407C, R134a/R513A, R407A, R448A, R449A, R452A, R404A/R507A
SCIP dossier no.6450ee16-252d-49df-8f77-4136a47bb857
SCIP dossier product nameT2/TE2
ServiceableNo
Temperature range [°C] [max]10 °C
Temperature range [°C] [min]-40 °C
Temperature range [°F] [max]50 °F
Temperature range [°F] [min]-40 °F
TypeORF
Used for productT 2
TE 2



Additional Informations
  • Contact us for more information.
    Our sales team will provide you with information and suggestion for selecting the right item.
