Danfoss Orifice No: 04
Product Details

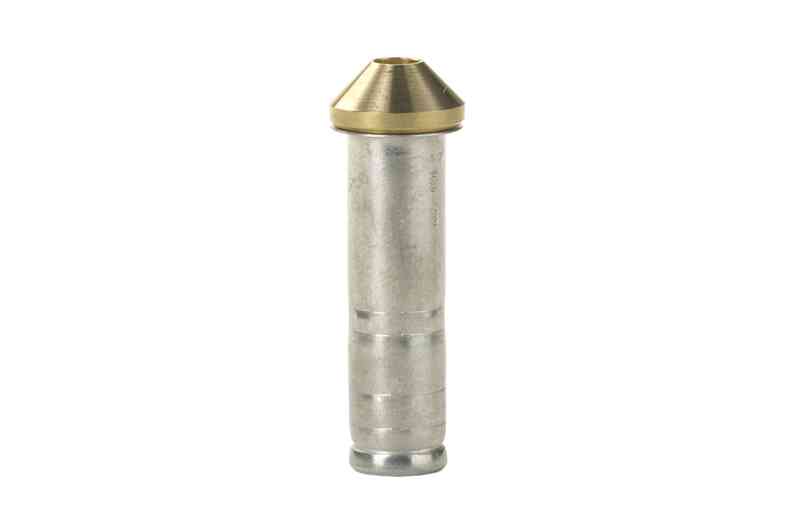

Danfoss-Orifice-No-04
Orifice for expansion valve, ORF, R407C; R236fa; R452A; R407A; R134a/R513A; R404A/R507A; R448A; R23; R22/R407C; R449A
068-2007
Temperature range [°C]: -40 - 10
Product Specifications:
| Specification | Details |
|---|---|
| Gross weight | 17.272 Gram |
| Net weight | 13 Gram |
| Volume | 0.019 Liter |
| Design | SAE flare only |
| Fluid Group | 1 |
| Orifice size | 04 |
BRANDS : DANFOSS
| Specification | Details |
|---|---|
| In scope of WEEE and contain batteries | No |
| Approval | EAC LLC CDC TYSK |
| Packing format | Multi pack |
| Parts Program name | T2/TE2 |
| PED category | Art. 4, par. 3 |
| Product accessories | TXV accessories |
| Product group | Expansion valves |
| Product Name Description | Orifice for expansion valve |
| Quantity per packing format | 25 pc |
| Rated cap. cond. Range N [IMP] | tcond=100 ºF tevap=40 ºF tliq=98 ºF |
| Rated cap. cond. Range N [SI] | tcond=38 ºC tevap=4.4 ºC tliq=37 ºC |
| Rated cap. R134a, Range N [kW] | 6.4 kW |
| Rated cap. R134a, Range N [TR] | 1.8 TR |
| Rated cap. R22, Range B [kW] | 5.6 kW |
| Rated cap. R22, Range B [TR] | 1.6 TR |
| Rated cap. R22, Range N [kW] | 12.1 kW |
| Rated cap. R22, Range N [TR] | 3.4 TR |
| Rated cap. R404A, Range B [kW] | 4.5 kW |
| Rated cap. R404A, Range B [TR] | 1.3 TR |
| Rated cap. R404A, Range N [kW] | 9.9 kW |
| Rated cap. R404A, Range N [TR] | 2.8 TR |
| Rated cap. R407C, Range N [kW] | 12.4 kW |
| Rated cap. R407C, Range N [TR] | 3.5 TR |
| Rated cap. R507, Range B [kW] | 4.5 kW |
| Rated cap. R507, Range B [TR] | 1.3 TR |
| Rated cap. R507, Range N [kW] | 9.9 kW |
| Rated cap. R507, Range N [TR] | 2.8 TR |
| Rated cap. R513A, Range N [kW] | 5.4 kW |
| Rated cap. R513A, Range N [TR] | 1.5 TR |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1 |
| Refrigerants | R22/R407C, R23, R236fa, R407C, R134a/R513A, R407A, R448A, R449A, R452A, R404A/R507A |
| SCIP dossier no. | 6450ee16-252d-49df-8f77-4136a47bb857 |
| SCIP dossier product name | T2/TE2 |
| Serviceable | No |
| Temperature range [°C] [max] | 10 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 50 °F |
| Temperature range [°F] [min] | -40 °F |
| Type | ORF |
| Used for product | T 2 TE 2 |
