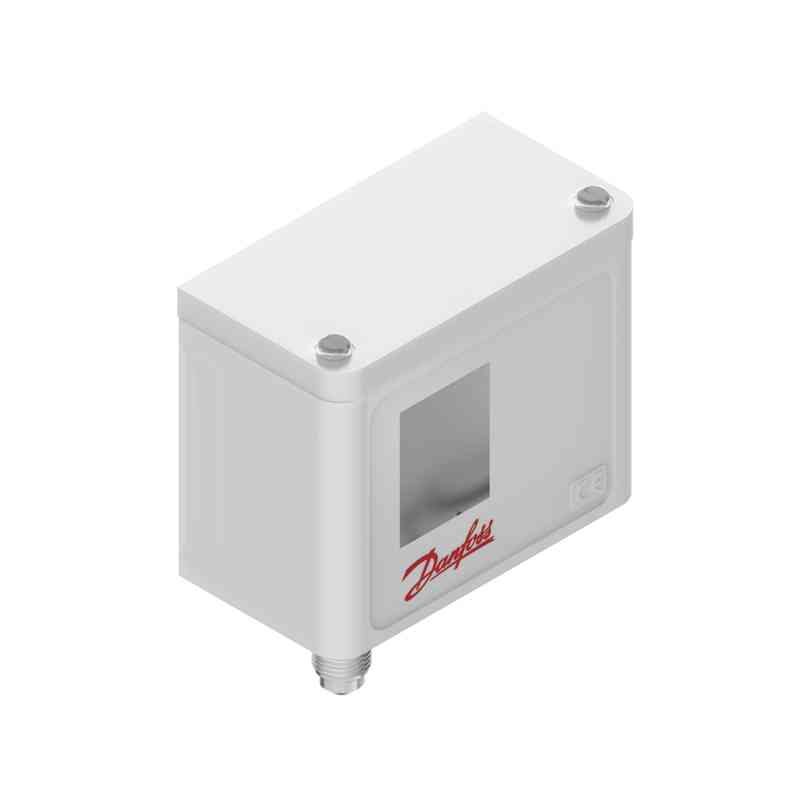

Danfoss Pressure Switch Kp 5 Auto

Product Details

Pressure Switch, KP5 (AUTO)

060-117166

Regulation range [bar] Pe: 8.00 - 32.00, Differential [bar]: 1.80 - 6.00, Contact function: SPDT, Reset function: Auto, Pressure connection type: Flare, Pressure connection size: 1/4, Pressure Male/Female: Male, Enclosure rating IP: IP44, Max. Working Pressure [bar]: 35.0

Key Specifications and Features:

SpecificationValue
Gross Weight0.34 Kg
Net Weight0.308 Kg
Volume0.571 Liter
EAN5702422025931
SpecificationValue
Ambient Temp. Note80 °C/176 °F for max 120 min
Ambient Temperature Range [°C] [max]65 °C
Ambient Temperature Range [°C] [min]-40 °C
Ambient Temperature Range [°F] [max]149 °F
Ambient Temperature Range [°F] [min]-40 °F
Application NoteNot applicable for liquid line
ApprovalBV, CCC, CE, CMIM, DNV, EAC, GL, LLC CDC EURO-TYSK, LR, LVD, PZH, RINA, RMRS, RoHS China, c UL us UL873, CS C22.2, UKCA
Contact FunctionSPDT
Contact Rating

AC15=10 A, 400 V

AC1=16 A, 400 V

AC3=16 A, 400 V

DC13=12 W, 220 V

LR=112 A, 400 V

Differential [bar] [max]6 bar
Differential [bar] [min]1.8 bar
Differential [psi] [max]87 psi
Differential [psi] [min]26 psi
Electrical ConnectionRubber Cable Gland
Electrical Connection Size6-14 mm
EN 60947 Electrical Properties

Pollution Degree: 3

Rated Impulse Voltage: 4 kV

Insulation: 400V

Short Circuit Protection, Fuse: 16A

EN 60947 Wiring Properties

Flex, Ferrules: 0.5-1.5 mm2

Flex, No Ferrules: 0.7-2.5 mm2

Solid/Stranded: 0.75-2.5 mm2

Enclosure Rating IPIP44
Enclosure Rating Nema (~)2
In Scope of WEEE and Contain BatteriesNo
Lubricants CompatibilityOil-Free Applications
Max. Test Pressure [bar] Pe35 bar
Max. Test Pressure [psig]510 psig
Max. Working Pressure [bar]35 bar
Max. Working Pressure [psig]510 psig
Oil-Free Refrigerants

R134a

R513A

R515B

Packing FormatMulti Pack
Pressure Connection Size1/4
Pressure Connection StandardDIN 8906
Pressure Connection TypeFlare
Pressure Male/FemaleMale
Pressure Sensing ElementBellows
Product AccessoriesSwitches Accessories
Product DescriptionPressure Switch
Product GroupSwitches and Thermostats
Product Name DescriptionPressure Switch
Quantity per Packing Format36 pc
REACH Candidate List SubstancesLead (CAS no. 7439-92-1)
RefrigerantsR113, R1234yf, R1234yz, R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R454C, R455A, R507A, R513A, R515B, R1234ze(E)
Regulation Range [bar] Pe [max]32 bar
Regulation Range [bar] Pe [min]8 bar
Regulation Range [psig] Pe [max]464 psig
Regulation Range [psig] Pe [min]116 psig
Reset FunctionAuto
SCIP Dossier No.b1323c86-8856-44cc-b1c6-6849abe37ee4
SCIP Dossier Product NameKP/KPI Pressure Switch
ServiceableNo
TypeKP5
UL Approval File NameE31024
UL Approved RefrigerantsR113, R124 , R134a, R22, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R507A, R513A, R515B






Additional Informations
  • Contact Us for more information.
    Our sales team will provide you with information and suggestion for selecting the right item.
