Danfoss Pressure Switch Kp1 Auto

  1. Home
  2. Refrigeration Unit
  3. Refrigeration Unit Accessories
  4. Danfoss Pressure Switch Kp1 Auto
Category: Refrigeration Unit

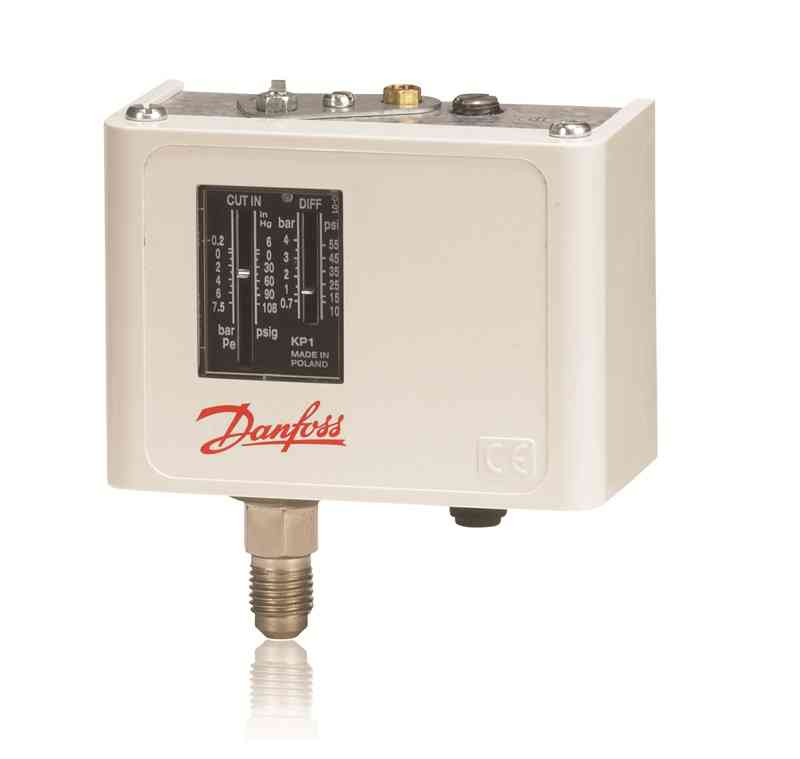

Danfoss Pressure Switch Kp1 Auto

Product Details

Pressure Switch, KP1

060-110166

Regulation range [bar] Pe: -0.20 - 7.50, Differential [bar]: 0.70 - 4.00, Contact function: SPDT, Reset function: Auto, Pressure connection type: Flare, Pressure connection size: 1/4, Pressure Male/Female: Male, Enclosure rating IP: IP44, Max. Working Pressure [bar]: 17.0

SpecificationValue
Gross weight0.344 Kg
Net weight0.3 Kg
Volume0.553 Liter
EAN5702422002185
Amb. Temp. Note80 °C/176 °F for max 120 min



BRANDS : DANFOSS



SpecificationValue
Ambient temperature range [°C] [max]65 °C
Ambient temperature range [°C] [min]-25 °C
Ambient temperature range [°F] [Max]149 °F
Ambient temperature range [°F] [Min]-13 °F
Application noteNot applicable for liquid line
ApprovalBV, CCC, CE, CMIM, DNV, EAC, GL, LLC CDC EURO-TYSK, LR, LVD, PED, PZH, RINA, RMRS, RoHS China, c UL us UL353, CS C22.2, c UL us UL873, CS C22.2, UKCA
CategoryIV
Contact functionSPDT
Contact ratingAC15=10 A, 400 V
AC1=16 A, 400 V
AC3=16 A, 400 V
DC13=12 W, 220 V
LR=112 A, 400 V
Differential [bar] [Max]4 bar
Differential [bar] [Min]0.7 bar
Differential [psi] [Max]58 psi
Differential [psi] [Min]10 psi
Electrical connectionRubber cable gland
Electrical connection size6-14 mm
EN 60947 electrical propertiesPollution degree: 3
Rated impulse voltage: 4 kV
Insulation: 400V
Short circuit prot, fuse: 16A
EN 60947 wiring propertiesFlex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2
Enclosure rating IPIP44
Enclosure rating Nema (~)2
Fluid Group1
Lubricants compatibilityOilfree applications
Max. test pressure [bar] Pe20 bar
Max. test pressure [psig]290 psig
Max. Working Pressure [bar]17 bar
Max. Working Pressure [psig]245 psig
Oil free refrigerantsR134a
R513A
R515B
Packing formatMulti pack
Pressure connection size1/4
Pressure connection standardDIN 8906
Pressure connection typeFlare
Pressure Male/FemaleMale
Pressure sensing elementBellows
Product accessoriesSwitches accessories
Product descriptionPressure Switch
Product GroupSwitches and thermostats
Product Name DescriptionPressure Switch
Quantity per packing format36 pc
REACH Candidate List substances 0.1Lead (CAS no. 7439-92-1)
Refrigerants                                                                      R113, R1234yf, R1234yz, R1234ze, R124, R134a, R22, R404A,R407A, R407C, R407F, R407H, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R454C, R455A, R507A, R513A, R515B
Regulation range6 inHg - 108 psig
Regulation range [bar] Pe [Max]7.5 bar
Regulation range [bar] Pe [Min]-0.2 bar
Reset functionAuto
SCIP dossier no.23785618-b379-4da7-a913-ecd40c8fae6d
SCIP dossier product nameSolenoid coils
ServiceableNo
TypeKP1
UL approval file nameE31024
MH27572
UL approved refrigerantsR113, R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R507A, R513A, R515B



Additional Informations
  • Contact Us for more information.
    Our sales team will provide you with information and suggestion for selecting the right item.
