Danfoss Pressure Switch Kp15 Auto

  1. Home
  2. Refrigeration Unit
  3. Refrigeration Unit Accessories
  4. Danfoss Pressure Switch Kp15 Auto
Category: Refrigeration Unit

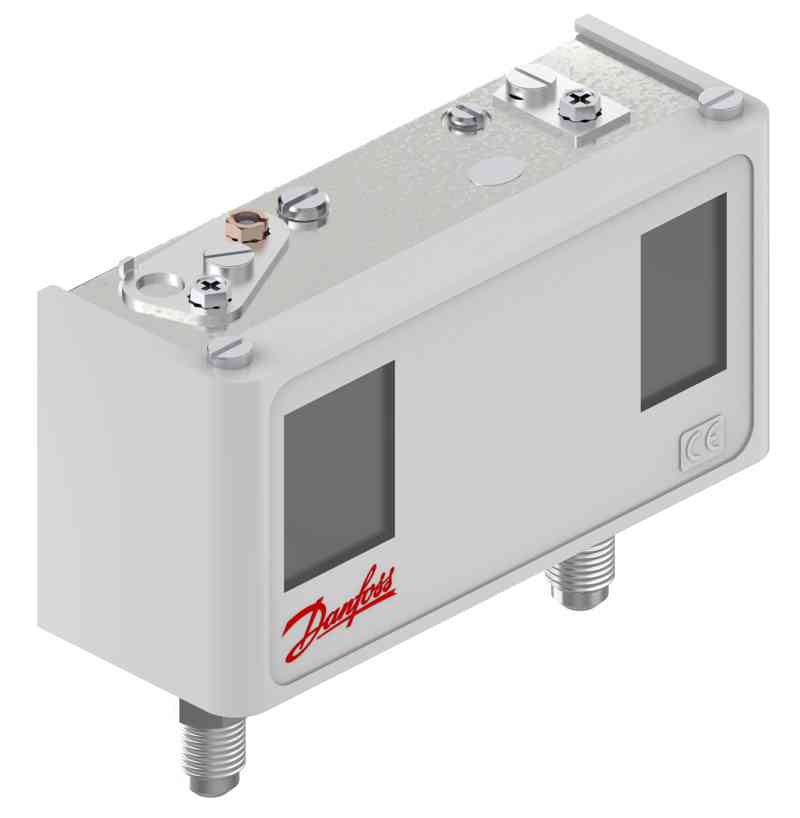

Danfoss Pressure Switch Kp15 Auto

Product Details

Pressure Switch, KP15 (AUTO)

Regulation left side [bar]Pe: -0.20 - 7.50, Regulation right side [bar]Pe: 8.0 - 32.0, Differential left side [bar]: 0.70 - 4.00, Differential right side [bar]: 4.0, Contact function: SPDT, Reset function, left side: Auto.

BRANDS : DANFOSS

Key Specifications:

SpecificationValue
BrandKP15
Regulation Left Side [bar] Pe-0.20 to 7.50
Regulation Right Side [bar] Pe8.0 to 32.0
Differential Left Side [bar]0.70 to 4.00
Differential Right Side [bar]                    4.0
Contact FunctionSPDT
SpecificationValue
Reset Function, Left SideAuto
Reset Function, Right SideAuto
Gross Weight0.51 Kg
Net Weight0.466 Kg
Volume0.83 Liter
Ambient Temperature Note80°C/176°F for max 120 min
Ambient Temperature Range [°C] (Max/Min)65°C / -40°C
Ambient Temperature Range [°F] (Max/Min)149°F / -40°F
Application NoteNot applicable for liquid line
ApprovalBV, CCC, CE, CMIM, DNV, EAC, GL, LLC CDC EURO-TYSK, LR, LVD, PZH, RINA, RMRS, RoHS China, c UL us UL873, CS C22.2, UKCA
Contact RatingAC15=10 A, 400 V; AC1=16 A, 400 V; AC3=16 A, 400 V; DC13=12 W, 220 V; LR=112 A, 400 V
Differential Left Side [bar] (Max/Min)                                                                                                           4 bar / 0.7 bar
Differential Left Side [psi] (Max/Min)58 psi / 10 psi
Differential Right Side [bar]4 bar
Differential Right Side [psi]58 psi
Electrical ConnectionRubber cable gland
Electrical Connection Size6-14 mm
EN 60947 Electrical PropertiesPollution degree: 3; Rated impulse voltage: 4 kV; Insulation: 400V; Short circuit protection, fuse: 16A
EN 60947 Wiring PropertiesFlex, ferrules: 0.5-1.5 mm²; Flex, no ferrules: 0.7-2.5 mm²; Solid/stranded: 0.75-2.5 mm²
Enclosure Rating IPIP44
Enclosure Rating NEMA (~)2
Lubricants CompatibilityOil-free applications
Max. Test Pressure Left Side [bar] Pe20 bar
Max. Test Pressure Right Side [bar] Pe35 bar
MWP Left Side [bar] Pe (psig)17 bar (245 psig)
MWP Right Side [bar] Pe (psig)35 bar (510 psig)
Oil-Free RefrigerantsR134a, R513A, R515B
Packing FormatMulti pack
Pressure Connection Size1/4
Pressure Connection StandardDIN 8906
Pressure Connection TypeFlare
Pressure Male/FemaleMale
Pressure Sensing ElementBellows
Product AccessoriesSwitches accessories
Product DescriptionDual Pressure Control
Product GroupSwitches and thermostats
Product Name DescriptionPressure Switch
Quantity per Packing Format24 pc
REACH Candidate List SubstancesLead (CAS no. 7439-92-1)
RefrigerantsR113, R1234yf, R1234yz, R1234ze, R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R454C, R455A, R507A, R513A, R515B
Regulation Left Side [bar] Pe (Max/Min)7.5 bar / -0.2 bar
Regulation Left Side Range Pe6 inHg - 108 psig
Regulation Right Side [bar] Pe (Max/Min)32 bar / 8 bar
Regulation Right Side [psig] Pe (Max/Min)464 psig / 116 psig

Additional Informations
  • Contact us for more information.
    Our sales team will provide you with information and suggestions for selecting the right item.
