Danfoss Pressure Switch Kp15 Manual

Product Details

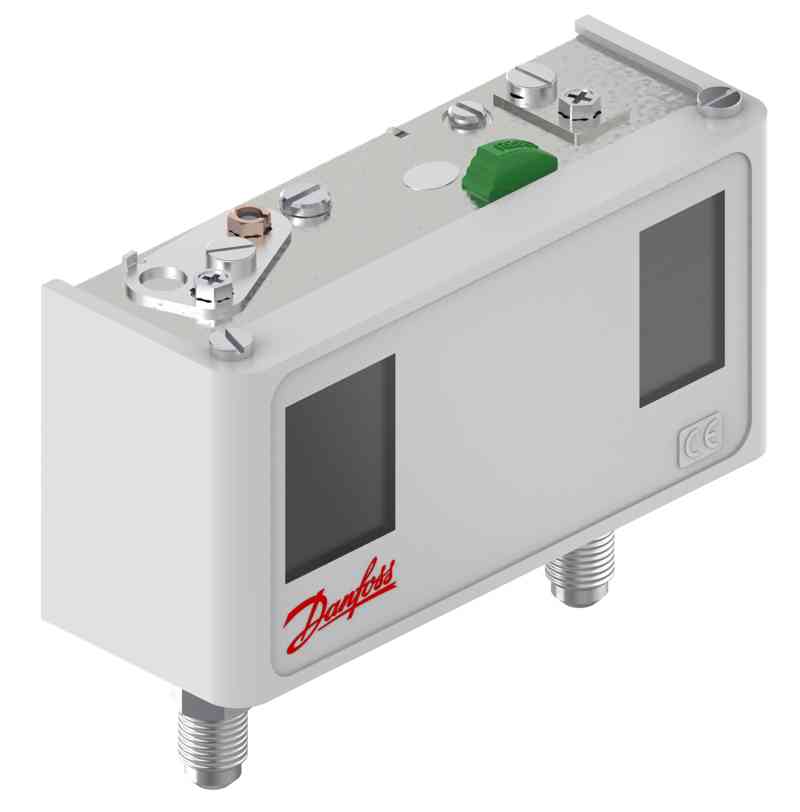

Pressure switch, KP15(MANUAL)

Regulation left side [bar]Pe: -0.20 - 7.50, Regulation right side [bar]Pe: 8.0 - 32.0, Differential left side [bar]: 0.70 - 4.00, Differential right side [bar]: 4.0, Contact function: SPDT+SPST(NO), Reset function, left side: Auto

BRANDS : DANFOSS

Key Specifications:

SpecificationValue
BrandKP15
Regulation Left Side [bar] Pe               -0.20 to 7.50
Regulation Right Side [bar] Pe           8.0 to 32.0
Differential Left Side [bar]0.70 to 4.00
Differential Right Side [bar]4.0
Contact FunctionSPDT+SPST(NO)
SpecificationValue
Reset Function, Left SideAuto
Gross Weight0.498 Kg
Net Weight0.436 Kg
Volume0.867 Liter
Ambient Temperature Note80°C/176°F for max 120 min
Ambient Temperature Range [°C] (Max/Min)                      65°C / -40°C
Ambient Temperature Range [°F] (Max/Min)                                                           149°F / -40°F
Application NoteNot applicable for liquid line
ApprovalBV, CCC, CE, DNV, GL, LR, LVD, PZH, RINA, RMRS, RoHS China, c UL us UL873, CS C22.2, UKCA
Contact RatingAC15=10 A, 400 V; AC1=16 A, 400 V; AC3=16 A, 400 V; DC13=12 W, 220 V; LR=112 A, 400 V; Terminal D: 50 VA, 400 V
Differential Left Side [bar] (Max/Min)                                   4 bar / 0.7 bar
Differential Left Side [psi] (Max/Min)58 psi / 10 psi
Differential Right Side [bar]4 bar
Differential Right Side [psi]58 psi
Electrical Connection                                                             Rubber cable gland
Electrical Connection Size6-14 mm
EN 60947 Electrical PropertiesPollution degree: 3; Rated impulse voltage: 4 kV; Insulation: 400V; Short circuit protection, fuse: 16A
EN 60947 Wiring Properties                                                                                                                             Flex, ferrules: 0.5-1.5 mm²; Flex, no ferrules: 0.7-2.5 mm²; Solid/stranded: 0.75-2.5 mm²
Enclosure Rating IP                                                                 IP30
Enclosure Rating NEMA (~)1
Lubricants CompatibilityOil-free applications
Max. Test Pressure Left Side [bar] Pe20 bar
Max. Test Pressure Right Side [bar] Pe35 bar
MWP Left Side [bar] Pe (psig)17 bar (245 psig)
MWP Right Side [bar] Pe (psig)35 bar (510 psig)
Oil-Free RefrigerantsR134a, R513A, R515B
Packing FormatMulti pack
Pressure Connection Size1/4
Pressure Connection StandardDIN 8906
Pressure Connection TypeFlare
Pressure Male/FemaleMale
Pressure Sensing ElementBellows
Product AccessoriesSwitches accessories
Product DescriptionDual Pressure Control
Product GroupSwitches and thermostats
Product Name DescriptionPressure switch
Quantity per Packing Format24 pc
REACH Candidate List SubstancesLead (CAS no. 7439-92-1)
RefrigerantsR113, R1234yf, R1234yz, R1234ze, R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R454C, R455A, R507A, R513A, R515B
Regulation Left Side [bar] Pe (Max/Min)7.5 bar / -0.2 bar
Regulation Left Side Range Pe6 inHg - 108 psig
Regulation Right Side [bar] Pe (Max/Min)32 bar / 8 bar
Regulation Right Side [psig] Pe (Max/Min)464 psig / 116 psig
Reset Function, Right SideManual Max
SCIP Dossier No.b1323c86-8856-44cc-b1c6-6849abe37ee4
ServiceableNo
TypeKP15
UL Approval File NameE31024
UL Approved RefrigerantsR113, R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R507A, R513A, R515B



Additional Informations
  • Contact us for more information.
    Our sales team will provide you with information and suggestions for selecting the right item.
