Danfoss Pressure Switch Kp5 Manual

  1. Home
  2. Refrigeration Unit
  3. Refrigeration Unit Accessories
  4. Danfoss Pressure Switch Kp5 Manual
Category: Refrigeration Unit

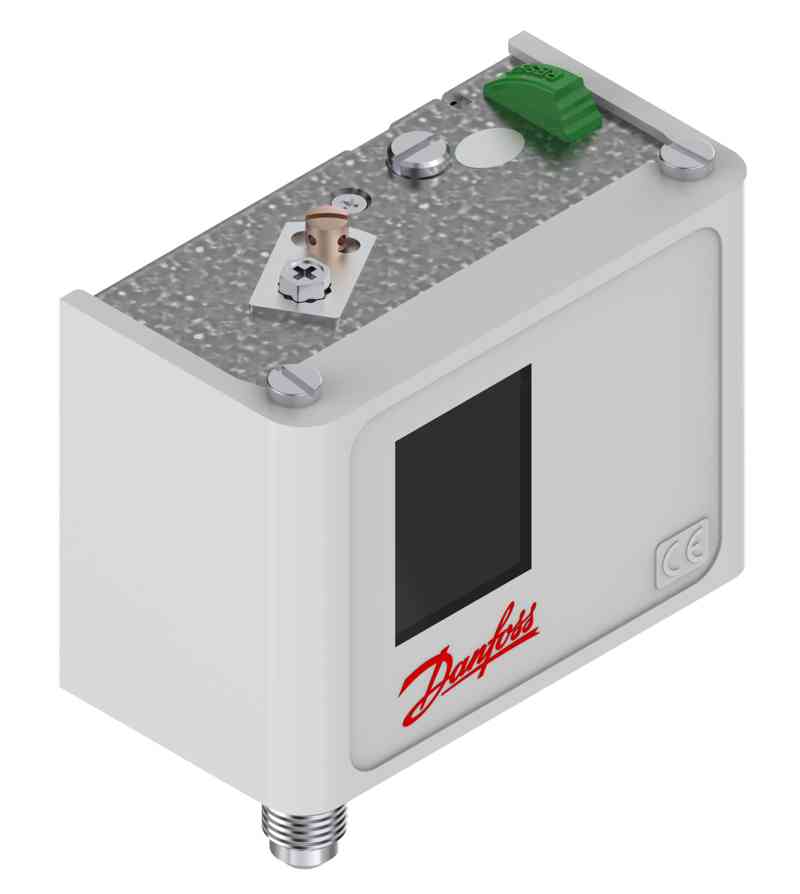

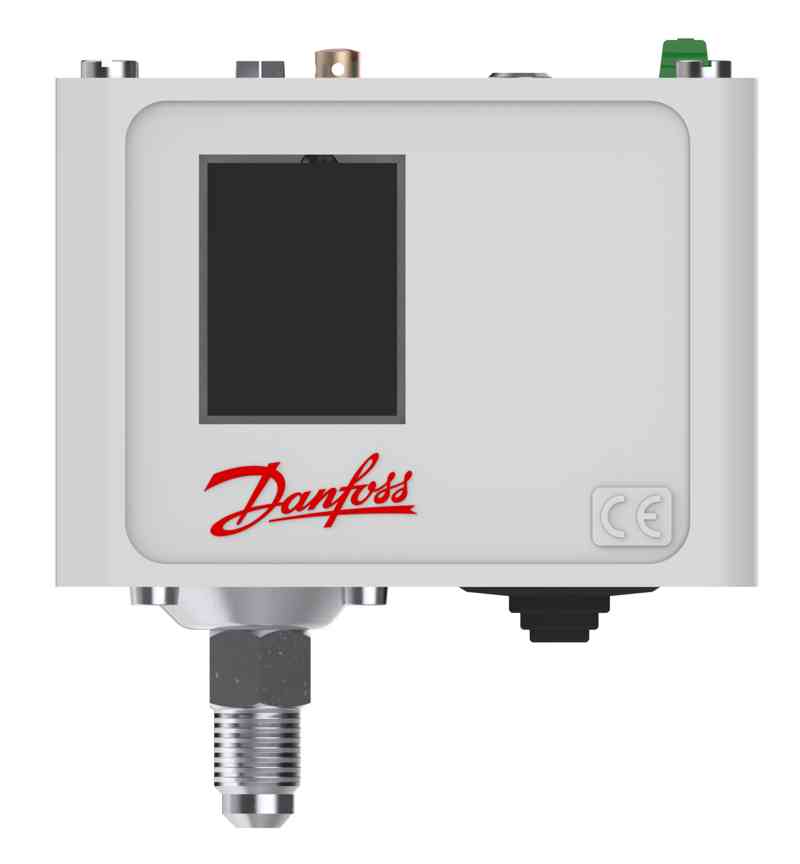

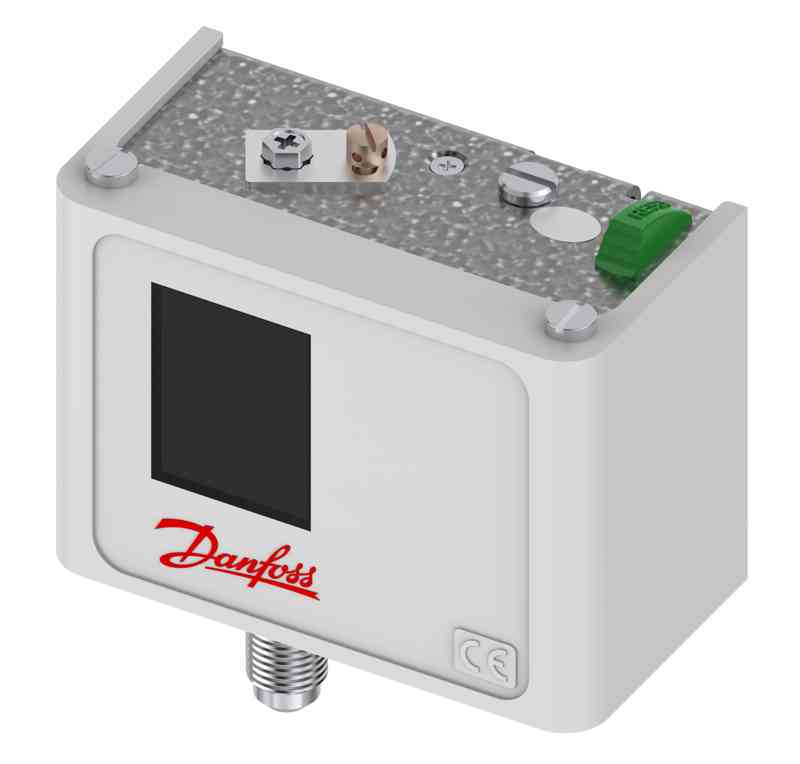

Danfoss Pressure Switch Kp5 Manual

Product Details

Pressure Switch, KP5 (MANUAL)

Regulation range [bar] Pe: 8.00 - 32.00, Differential [bar]: 3.00, Contact function: SPDT, Reset function: Manual Max, Pressure connection type: Flare, Pressure connection size: 1/4, Pressure Male/Female: Male, Enclosure rating IP: IP30, Max. Working Pressure [bar]: 35.0

BRANDS : DANFOSS

Key Specifications:

SpecificationValue
Gross Weight                                                             0.326 Kg
Net Weight0.294 Kg
Volume0.553 Liter
Ambient Temperature Note80°C/176°F for max 120 min
Ambient Temperature Range [°C] (Max/Min)65°C / -40°C
Ambient Temperature Range [°F] (Max/Min)149°F / -40°F
SpecificationValue
Application NoteNot applicable for liquid line
ApprovalBV, CCC, CE, CMIM, DNV, EAC, GL, LLC CDC EURO-TYSK, LR, LVD, PZH, RINA, RMRS, RoHS China, c UL us UL873, CS C22.2, UKCA
Contact FunctionSPDT
Contact RatingAC15=10 A, 400 V; AC1=16 A, 400 V; AC3=16 A, 400 V; DC13=12 W, 220 V; LR=112 A, 400 V
Differential [bar]3 bar
Differential [psi]43 psi
Electrical ConnectionRubber cable gland
Electrical Connection Size6-14 mm
EN 60947 Electrical PropertiesPollution degree: 3; Rated impulse voltage: 4 kV; Insulation: 400V; Short circuit protection, fuse: 16A
EN 60947 Wiring PropertiesFlex, ferrules: 0.5-1.5 mm²; Flex, no ferrules: 0.7-2.5 mm²; Solid/stranded: 0.75-2.5 mm²
Enclosure Rating IPIP30
Enclosure Rating NEMA (~)1
Fluid Group1
Lubricants CompatibilityOil-free applications
Max. Test Pressure [bar] Pe35 bar
Max. Test Pressure [psig]510 psig
Max. Working Pressure [bar]35 bar
Max. Working Pressure [psig]510 psig
Oil-Free RefrigerantsR134a, R513A, R515B
Packing FormatMulti pack
Pressure Connection Size1/4
Pressure Connection StandardDIN 8906
Pressure Connection TypeFlare
Pressure Male/FemaleMale
Pressure Sensing ElementBellows
Product AccessoriesSwitches accessories
Product DescriptionPressure Switch
Product GroupSwitches and thermostats
Product Name DescriptionPressure Switch
Quantity per Packing Format36 pc
REACH Candidate List SubstancesLead (CAS no. 7439-92-1)
Refrigerants                                                                                                         R113, R1234yf, R1234yz, R1234ze, R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R454C, R455A, R507A, R513A, R515B
Regulation Range [bar] Pe (Max/Min)32 bar / 8 bar
Regulation Range [psig] Pe (Max/Min)464 psig / 116 psig
Reset FunctionManual Max
SCIP Dossier No.b1323c86-8856-44cc-b1c6-6849abe37ee4
SCIP Dossier Product NameKP/KPI pressure switch
ServiceableNo
TypeKP5
UL Approval File NameE31024
UL Approved RefrigerantsR113, R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R507A, R513A, R515B



Additional Informations
  • Contact us for more information.
    Our sales team will provide you with information and suggestions for selecting the right item.
