Danfoss Sight Glass Flare - Sgi 15 5/8"

Product Details

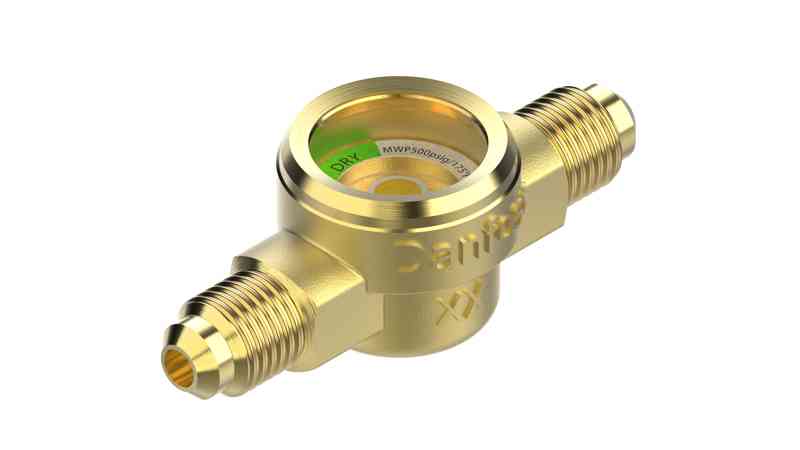

Danfoss Sight Glass Flare - SGI 15 5/8"

SGP 16 N, Sight glass, Flare, 16.00 mm, Flare, 16.00 mm

014L0165

Inlet connection type: Flare, Inlet size [mm]: 16.00, Outlet connection type: Flare, Outlet size [mm]: 16.00

SpecificationDetails
Gross weight0.332 Kg
Net weight                                           0.31 Kg
Volume0.278 Liter
Product Name DescriptionSight glass



 BRANDS : DANFOSS



SpecificationDetails
ApprovalC UL US LISTED
EAC
Approval file nameREF. LIQUID INDICATOR 76H4
Body materialBrass
Connection materialBrass
Green: max moist con@25 °C                                                                            R134a: 30 ppm, R22: 30 ppm, R404A: 20 ppm, R407A: 29 ppm, R407C: 30 ppm, R407F: 30 ppm, R410A: 66 ppm, R448A: 28 ppm, R449A: 29 ppm, R450A: 23 ppm, R452A: 20 ppm, R513A: 22 ppm, R507A: 15 ppm.
Green: max moist con@43 °CR134a: 45 ppm, R22: 50 ppm, R404A: 25 ppm, R407A: 48 ppm, R407C: 60 ppm, R407F: 60 ppm, R410A: 135 ppm, R448A: 70 ppm, R449A: 53 ppm, R450A: 46 ppm, R452A: 30 ppm, R513A: 22 ppm, R507A: 30 ppm.
In scope of WEEE and contain batteriesNo
Inlet connection typeFlare
Inlet Internal/ExternalExternal
Inlet size [in]5/8 in
Inlet size [mm]16 mm
Lubricants compatibilityOilfree applications
Max. Working Pressure [bar]52 bar
Max. Working Pressure [psig]754 psig
Moisture indicatorN indicator
Oil free refrigerantsR1234ze(E), R134a, R513A, R515B
Outlet connection typeFlare
Outlet Internal/ExternalExternal
Outlet size [in]5/8 in
Outlet size [mm]16 mm
Packing formatMulti pack
Product accessoriesGeneric accessories
Product groupSight glasses
Quantity per packing format36 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Cobalt dichloride (CAS no. 7646-79-9)
RefrigerantsR134a, R22, R404A, R407A, R407C, R407F, R410A, R448A, R449A, R450A, R452A, R513A, R1233zd(E), R407H, R515B, R744, R463A, R1234yf, R1234ze(E), R32, R452B, R454B, R454C, R455A, R507A.
SCIP dossier no.323c7b85-ff73-43cd-8fce-a44eabbf5297
ServiceableNo
Temperature range [°C] [max]80 °C
Temperature range [°C] [min]-50 °C
Temperature range [°F] [max]175 °F
Temperature range [°F] [min]-58 °F
TypeSGP 16 N
UL approval file nameREF. LIQUID INDICATOR 76H4
UL approved refrigerantsR1233zd(E), R134a, R22, R404A, R407A, R407C, R407F, R407H, R410A, R448A, R449A, R450A, R452A, R463A, R507A, R513A, R515B, R744.
Yellow: min moist con@25 °CR134a: 100 ppm, R22: 120 ppm, R404A: 70 ppm, R407A: 115 ppm, R407C: 140 ppm, R410A: 266 ppm, R448A: 110 ppm, R449A: 105 ppm, R450A: 148 ppm, R452A: 79 ppm, R513A: 75 ppm, R407F: 168 ppm, R507A: 60 ppm.
Yellow: min moist con@43 °CR134a: 170 ppm, R404A: 100 ppm, R407C: 225 ppm, R507A: 110 ppm, R22: 200 ppm, R407A: 192 ppm, R407F: 240 ppm, R410A: 540 ppm, R448A: 227 ppm, R449A: 200 ppm, R450A: 245 ppm, R452A: 143 ppm, R513A: 123 ppm.



Additional Informations
  • Contact us for more information.
    Our sales team will provide you with information and suggestions for selecting the right item.
