Danfoss Solenoid Valve Flare 1/2" Evr-6

Category: Refrigeration Unit
Danfoss Solenoid Valve Flare 1/2" Evr-6


Product Details

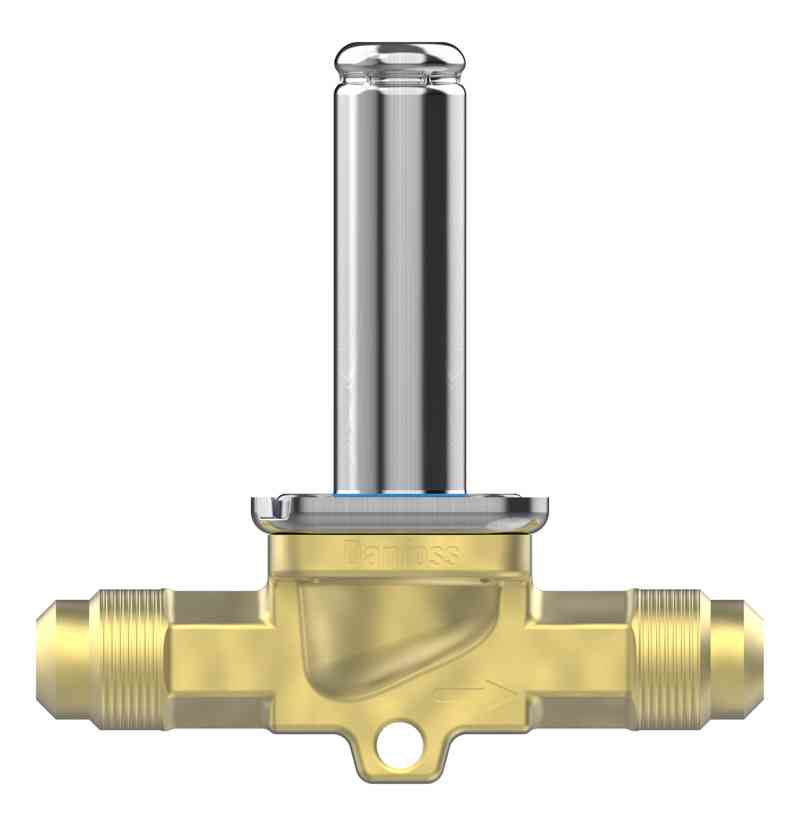

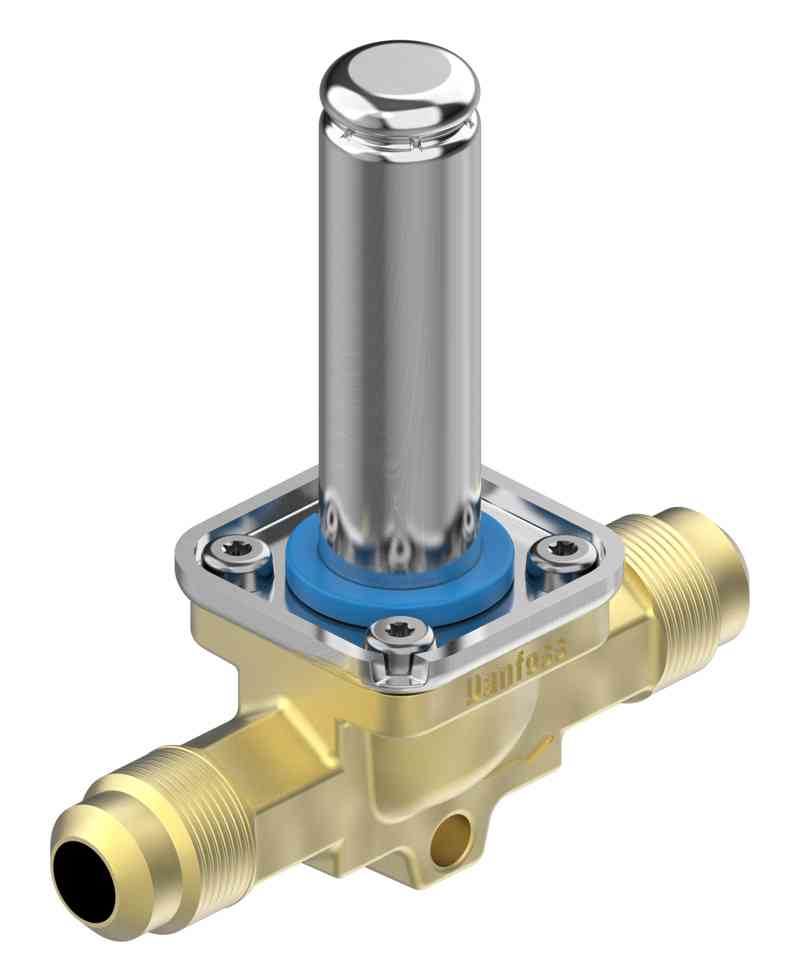

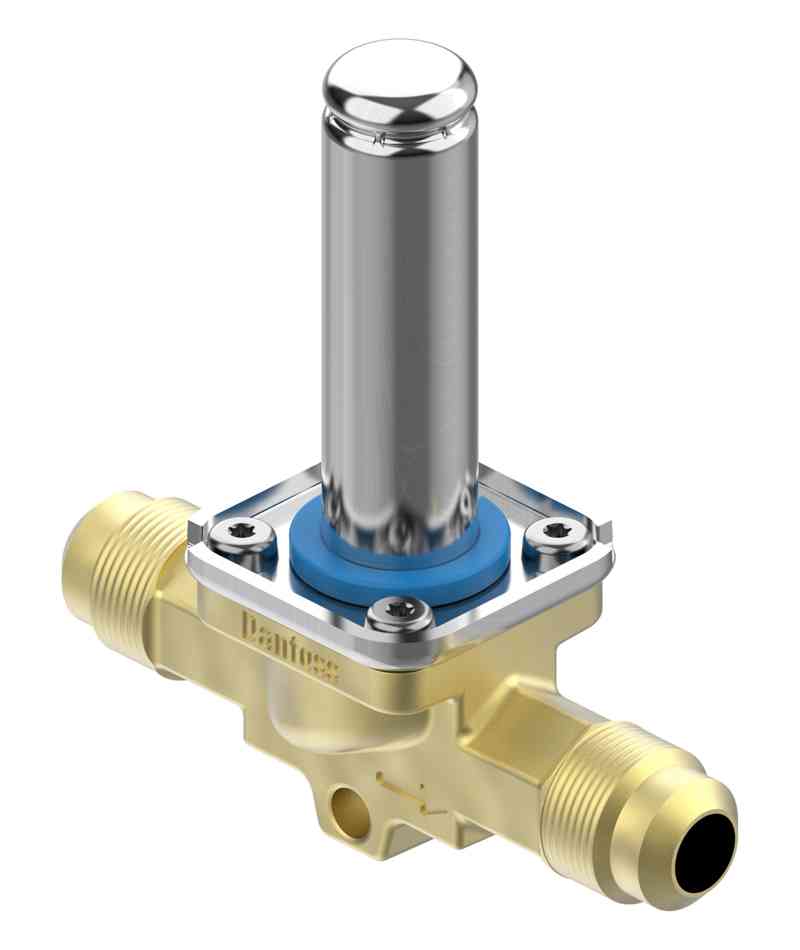

EVR 6 Solenoid Valve Flare 1/2"

Product NameSolenoid Valve, EVR 6
Part Number032L8079
Inlet Connection TypeFlare
Inlet Size [in]1/2 in
FunctionNormally Closed (NC)





BRANDS : DANFOSS



Key Specifications:

ParameterValue
Gross Weight0.275 Kg
Net Weight0.223 Kg
Volume0.878 Liter
Actuator System [mm]13.5 mm
Ambient Temperature Range [°C]-40 - 80 °C
Ambient Temperature Range [°F] [Max]175 °F
Ambient Temperature Range [°F] [Min]-40 °F
CategoryArt. 4, par. 3
CoilNo
Cv Value [gal/min]1.15 gal/min
DirectionStraightway
Fluid Group1, 2
FunctionNormally Closed (NC)
Identical Product032L8084
Inlet Size [mm]12 mm
Kv Value [m³/h]1 m³/h
Lubricants CompatibilityAB, PAG, PAO, POE, PVE
Manual Operation OptionNo
Max. Working Pressure [bar]45.2 bar
Max. Working Pressure [psig]655 psig
MaxOPD [bar] 10W AC38 bar
MaxOPD [bar] 20W DC28 bar
MaxOPD [bar] Coil BJ/BX38 bar
MaxOPD [psi] 10W AC550 psi
MaxOPD [psi] 20W DC406 psi
MaxOPD [psi] Coil BJ/BX550 psi
Medium Temperature Range [°C] [Max]105 °C
Medium Temperature Range [°C] [Min]-40 °C
Medium Temperature Range [°F] [Max]221 °F
Medium Temperature Range [°F] [Min]-40 °F
MinODP [bar]0.03 bar
MinODP [psi]0.44 psi
MOPD [bar/psi]Coil Dependent
Orifice Size [mm]6 mm
Outlet Connection TypeFlare
Outlet Size [in]1/2 in
Outlet Size [mm]12 mm
Packing FormatMulti-pack
Parts Program NameEVR
Product AccessoriesSolenoid valve accessories
Product GroupSolenoid valves
Product Name DescriptionSolenoid Valve
Quantity per Packing Format12 pcs
REACH Candidate List Substances 0.1Lead (CAS no. 7439-92-1)
ServiceableSolenoid valve spare parts
TypeEVR 6
Type DesignationSolenoid Valve
Valve OperationServo-Diaphragm

This table includes the specified specifications and features for the Solenoid Valve, EVR 6.

Refrigerants :

  • R125, R134a, R404A, R407A, R407F, R410A, R417A, R448A, R449A, R450A, R452A, R513A, R407H, R413A, R422A, R422B, R422D, R438A, R447A, R449B, R463A, R513B, R515A, R515B, R442A, R447B, R512A, R22, R407C, R455A, R1234yf, R1234ze(E), R152a, R32, R444B, R452B, R454A, R454B, R454C, R507A, R516A

UL Approved Refrigerants :

  • R125, R134a, R22, R404A, R407A, R407C, R407F, R407H, R410A, R413A, R417A, R422A, R422B, R422D, R438A, R442A, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R463A, R507A, R512A, R513A, R513B, R515A, R515B
