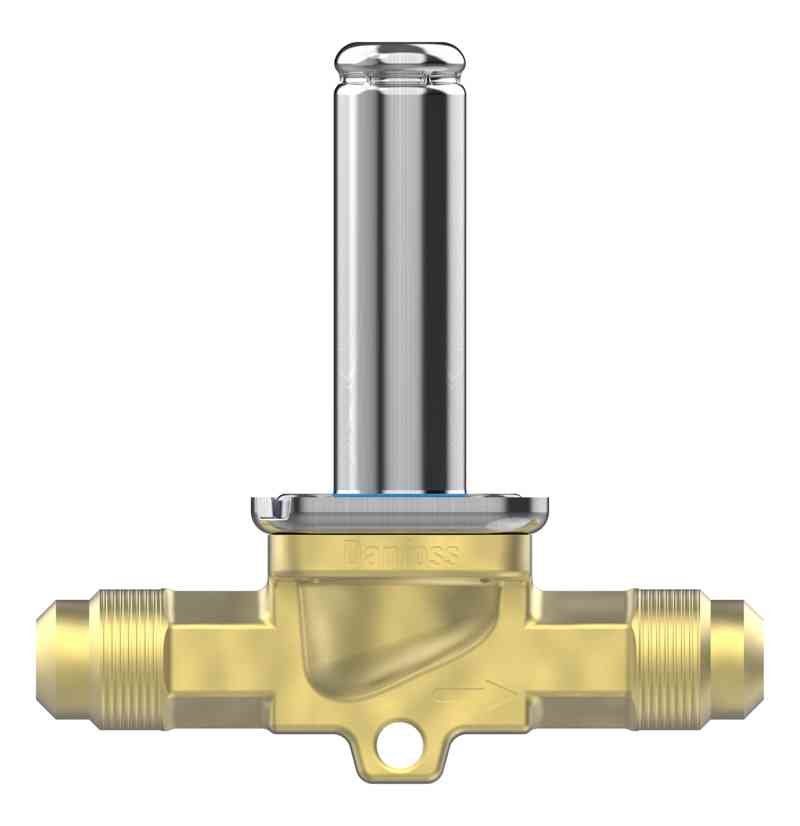

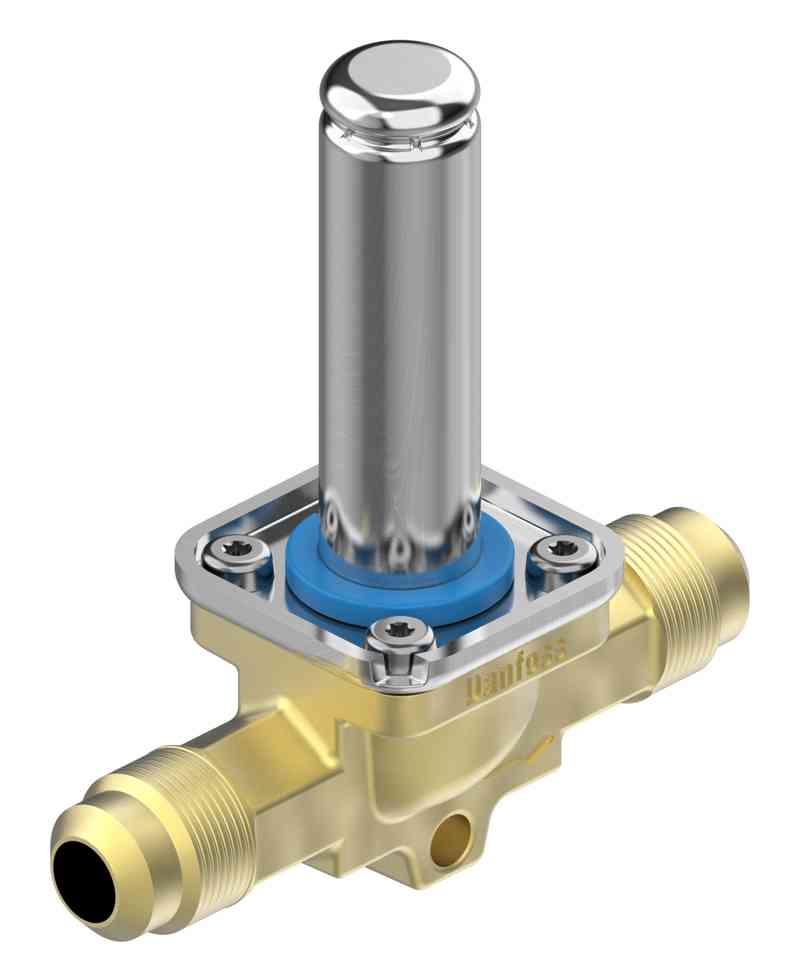

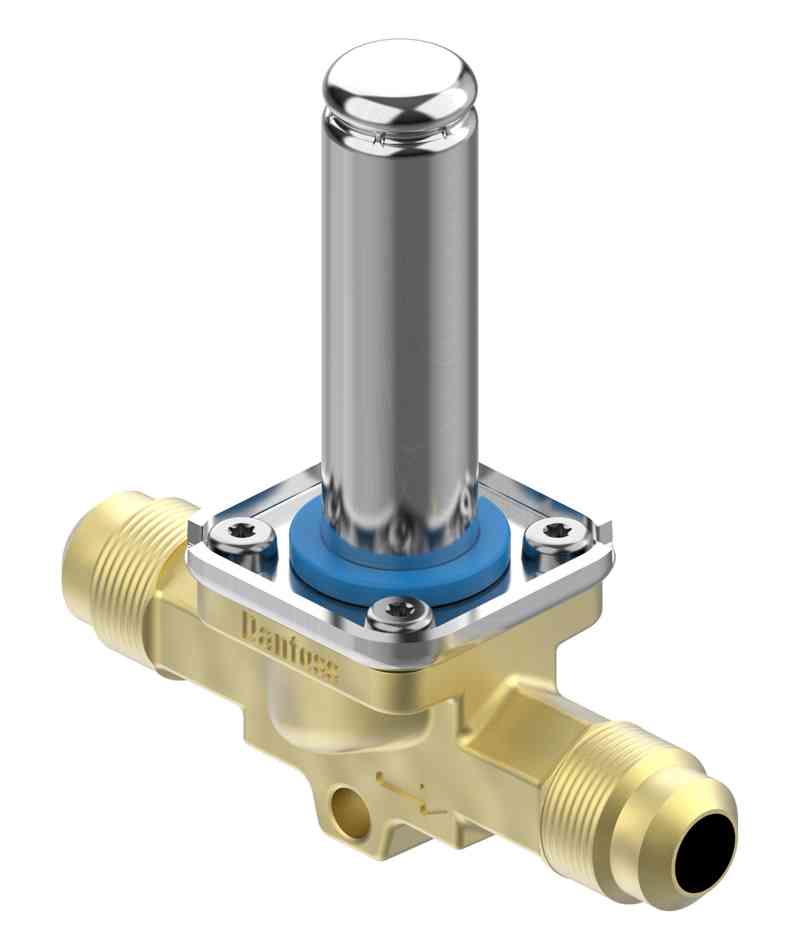

Danfoss Solenoid Valve Flare 3/8" Evr-3

Product Details

EVR 3 Solenoid Valve Flare 3/8

Product NameSolenoid Valve, EVR 3
Part Number032F8116
Inlet Connection TypeFlare
Inlet Size [in]3/8 in
FunctionNormally Closed (NC)





BRANDS : DANFOSS



Key Specifications:

ParameterValue
Gross Weight0.24 Kg
Net Weight0.19 Kg
Volume0.866 Liter
Actuator System [mm]13.5 mm
Ambient Temperature Range [°C]-40 - 80 °C
Ambient Temperature Range [°F] [Max]175 °F
Ambient Temperature Range [°F] [Min]-40 °F
CategoryArt. 4, par. 3
CoilNo
Cv Value [gal/min]0.31 gal/min
DirectionStraightway
Fluid Group1, 2
FunctionNormally Closed (NC)
Identical Product032F8117
Inlet Size [mm]10 mm
Kv Value [m³/h]0.27 m³/h
Lubricants CompatibilityAB, PAG, PAO, POE, PVE
Manual Operation OptionNo
Max. Working Pressure [bar]45.2 bar
Max. Working Pressure [psig]655 psig
MaxOPD [bar] 10W AC38 bar
MaxOPD [psi] 10W AC550 psi
Medium Temperature Range [°C] [Max]105 °C
Medium Temperature Range [°C] [Min]-40 °C
Medium Temperature Range [°F] [Max]221 °F
Medium Temperature Range [°F] [Min]-40 °F
MinODP [bar]0 bar
MOPD [bar/psi]Coil Dependent
Orifice Size [mm]3.3 mm
Outlet Connection TypeFlare
Outlet Size [in]3/8 in
Outlet Size [mm]10 mm
Packing FormatMulti-pack
Parts Program NameEVR
Product AccessoriesSolenoid valve accessories
Product GroupSolenoid valves
Product Name DescriptionSolenoid Valve
Quantity per Packing Format24 pcs
REACH Candidate List Substances 0.1                                                          Lead (CAS no. 7439-92-1)
ServiceableSolenoid valve spare parts
TypeEVR 3
Type DesignationSolenoid Valve
Valve OperationDirect

Please note that the above table includes the specified specifications and features for the Solenoid Valve, EVR 3.

Refrigerants :

  • R125, R134a, R404A, R407A, R407F, R410A, R417A, R448A, R449A, R450A, R452A, R513A, R407H, R413A, R422A, R422B, R422D, R438A, R447A, R449B, R463A, R513B, R515A, R515B, R442A, R447B, R512A, R22, R407C, R455A, R1234yf, R1234ze(E), R152a, R32, R444B, R452B, R454A, R454B, R454C, R507A, R516A

Additional Informations
  • Contact us for more information
    Our sales team will provide you with information and suggestion for selecting the right item.
