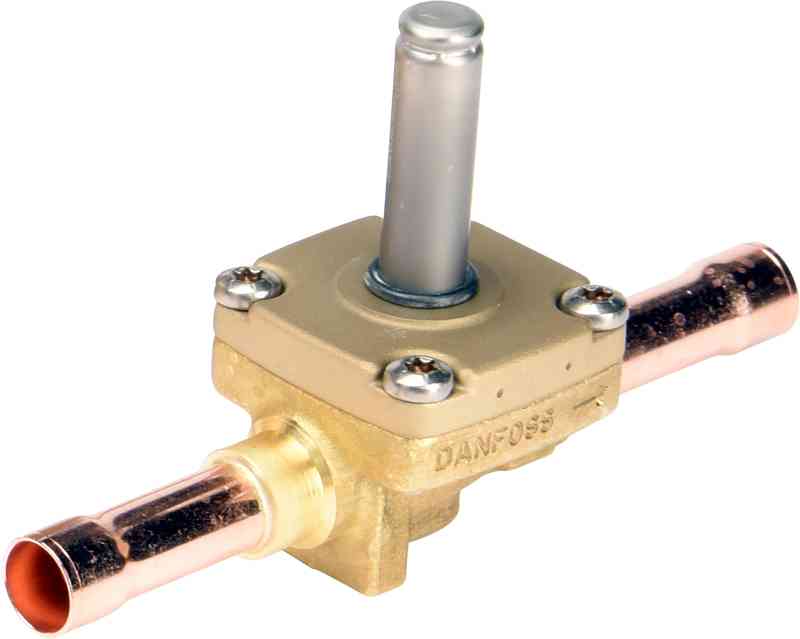

Danfoss Solenoid Valve Flare 5/8" Evr-15

Product Details

EVR 15 Solenoid Valve Flare 5/8"

Part Number:032L1228
Inlet Connection Type:Solder, ODF
Inlet Size [mm]: 16 mm
Outlet Connection Type:Solder, ODF
Outlet Size [mm]:16 mm
Function:Normally Closed (NC)
Max. Working Pressure:                  45.2 bar (655 psig)
Max. Working Pressure:                                  14 mm





BRANDS : DANFOSS



Key Specifications:

ParameterValue
Gross Weight                                                                                                0.854 Kg
Net Weight0.734 Kg
Volume3.087 Liter
EAN5702428952835
Actuator System [mm]13.5 mm
Ambient Temperature Range [°C]-40 - 80 °C
Ambient Temperature Range [°F] [Max]175 °F
Ambient Temperature Range [°F] [Min]-40 °F
CategoryArt. 4, par. 3
CoilNo
Cv Value [gal/min]3.8 gal/min
DirectionStraightway
Fluid Group1, 2
FunctionNormally Closed (NC)
Identical Product032L5089
Kv Value [m³/h]3.3 m³/h
Lubricants CompatibilityAB, PAG, PAO, POE, PVE
Manual Operation OptionNo
Max. Working Pressure [bar]45.2 bar
Max. Working Pressure [psig]655 psig
MaxOPD [bar] 10W AC38 bar
MaxOPD [bar] 20W DC20 bar
MaxOPD [bar] Coil BJ/BX38 bar
MaxOPD [psi] 10W AC550 psi
MaxOPD [psi] 20W DC290 psi
MaxOPD [psi] Coil BJ/BX550 psi
Medium Temp. Range NoteDEFROST MAX 130 °C
Medium Temperature Range [°C] [Max]105 °C
Medium Temperature Range [°C] [Min]-40 °C
Medium Temperature Range [°F] [Max]221 °F
Medium Temperature Range [°F] [Min]-40 °F
MinODP [bar]0.03 bar
MinODP [psi]0.44 psi
MOPD [bar/psi]COIL DEPENDENT
MWP [bar] PED Compliant49 bar
Orifice Size [mm]14 mm
Packing FormatMulti-pack
Parts Program NameEVR
Product AccessoriesSolenoid valve accessories
Product GroupSolenoid valves
Product Name DescriptionSolenoid Valve
Quantity per Packing Format6 pcs
REACH Candidate List Substances 0.1Lead (CAS no. 7439-92-1)
ServiceableSolenoid valve spare parts
TypeEVR 15
Type DesignationSolenoid Valve, Solder
Valve OperationServo-Diaphragm

Refrigerants :

  • R1234yf, R125, R134a, R152a, R22, R290, R32, R404A, R407A, R407C, R407F, R410A, R417A, R448A, R449A, R450A, R452A, R600, R600a, R513A, R452B, R454B, R1234ze(E), R407H, R413A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R449B, R454C, R455A, R463A, R512A, R513B, R515A, R515B, R516A, R454A, R507A

UL Approved Refrigerants :

  • R125, R134a, R152a, R22, R404A, R407A, R407C, R407F, R407H, R410A, R413A, R417A, R422A, R422B, R422D, R438A, R442A, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R455A, R463A, R507A, R512A, R513A, R513B, R515A, R515B, R516A

Elevate your fluid control system with the EVR 15 Solenoid Valve, providing precision and reliability for a variety of applications. Ideal for refrigerant systems, it delivers exceptional performance even in challenging conditions.

Additional Informations
  • Contact us for more information
    Our sales team will provide you with information and suggestion for selecting the right item.
