Danfoss Solenoid Valve Solder 1/2" Evr -10s

  1. Home
  2. Refrigeration Unit
  3. Refrigeration Unit Accessories
  4. Danfoss Solenoid Valve Solder 1/2" Evr -10s
Category: Refrigeration Unit

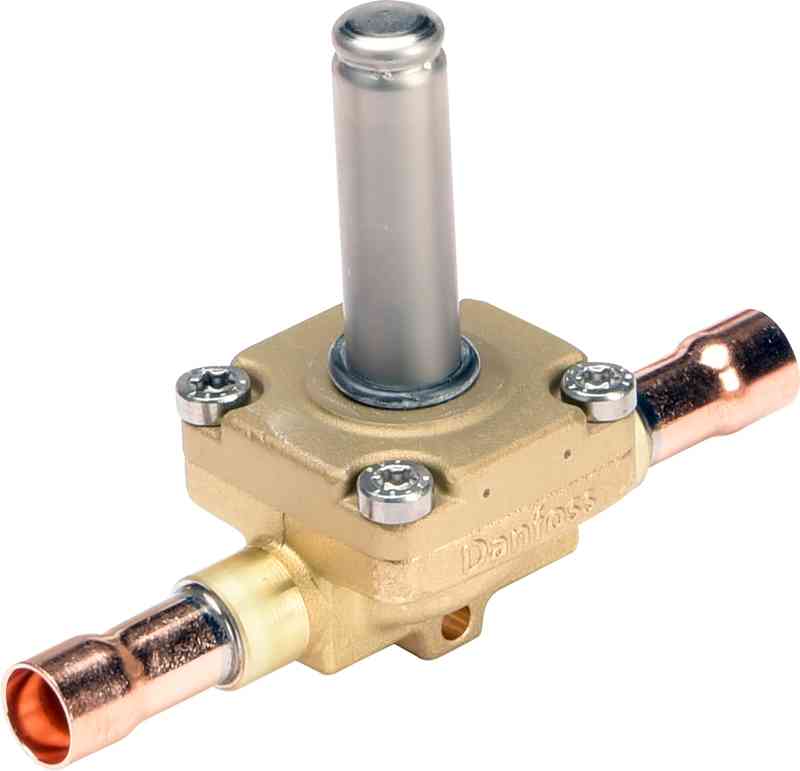

Danfoss Solenoid Valve Solder 1/2" Evr -10s

Product Details



Product Name                                          Solenoid Valve, EVR 10
TypeEVR 10
Type DesignationSolenoid valve, Solder
FunctionNormally Closed (NC)
Inlet Connection TypeSolder, ODF
Inlet Size [in]1/2 in
Outlet Connection TypeSolder, ODF

BRANDS : DANFOSS



Key Specifications:

ParameterValue
Outlet Size [in]1/2 in
Ambient Temperature Range [°C] Max                                -40 °C
Ambient Temperature Range [°C] Min80 °C
Ambient Temperature Range [°F] Max175 °F
Ambient Temperature Range [°F] Min-40 °F
Medium Temperature Range [°C] Max105 °C
Medium Temperature Range [°C] Min-40 °C
Medium Temperature Range [°F] Max221 °F
Medium Temperature Range [°F] Min-40 °F
Max. Working Pressure [bar]45.2 bar
Max. Working Pressure [psig]655 psig
MaxOPD [bar] 10W AC38 bar
MaxOPD [bar] 20W DC20 bar
MaxOPD [bar] Coil BJ/BX38 bar
MaxOPD [psi] 10W AC550 psi
MaxOPD [psi] 20W DC290 psi
MaxOPD [psi] Coil BJ/BX550 psi
MinODP [bar]0.03 bar
MinODP [psi]0.44 psi
MOPD [bar/psi]Coil Dependent
MWP [bar] PED Compliant49 bar
Kv Value [m³/h]2.200 m³/h
Cv Value [gal/min]2.6 gal/min
Orifice Size [mm]10 mm
Volume2.198 Liter
Gross Weight0.514 Kg
Net Weight0.392 Kg
Actuator System [mm]13.5 mm
Lubricants CompatibilityAB, PAG, PAO, POE, PVE
Manual Operation OptionNo
CategoryArt. 4, par. 3
Identical Product032L2298
Packing FormatMulti pack
Parts Program NameEVR
Quantity per Packing Format9 pc
EAN5702428952873
Identical Product032L2298
ServiceableSolenoid valve spare parts
Valve OperationSERVO-DIAPHRAGM

Refrigerants :

  • R1234yf, R125, R134a, R152a, R22, R290, R32, R404A, R407A, R407C, R407F, R410A, R417A, R448A, R449A, R450A, R452A, R600, R600a, R513A, R452B, R454B, R1234ze(E), R407H, R413A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R449B, R454C, R455A, R463A, R512A, R513B, R515A, R515B, R516A, R454A, R507A

UL Approved Refrigerants :

  • R125, R134a, R152a, R22, R404A, R407A, R407C, R407F, R407H, R410A, R413A, R417A, R422A, R422B, R422D, R438A, R442A, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R455A, R463A, R507A, R512A, R513A, R513B, R515A, R515B, R516A

Additional Informations
  • Contact us for more information
    Our sales team will provide you with information and suggestion for selecting the right item.
