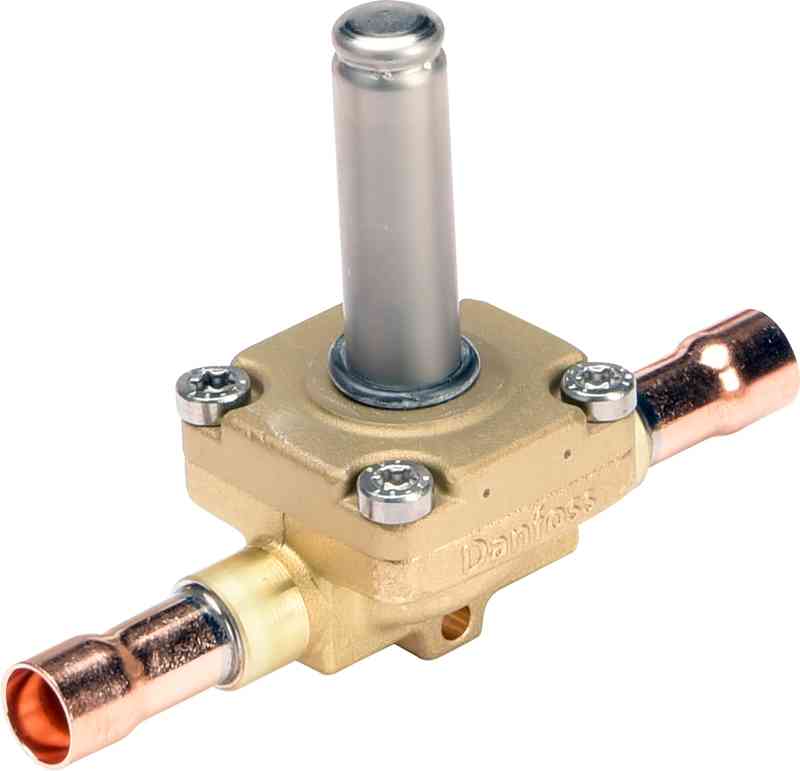

Danfoss Solenoid Valve Solder 5/8" Evr-10

Product Details

Solenoid valve, EVR 10, Solder, ODF, 5/8 in, Function: NC

032L1214

Kv value [m³/h]: 2.200, Packing format: Multi pack

Product NameSolenoid Valve, EVR 10S
Product Name                               EVR 10
Inlet Connection TypeSolder, ODF
Inlet Size [in]5/8 in
Outlet Connection TypeSolder, ODF
Outlet Size [in]5/8 in
FunctionNormally Closed (NC)

BRANDS : DANFOSS





Key Specifications:

ParameterValue
Kv Value [m³/h]2.2 m³/h
Cv Value [gal/min]2.6 gal/min
Orifice Size [mm]10 mm
Max. Working Pressure [bar] 45.2 bar
Max. Working Pressure [psig]655 psig
MaxOPD [bar] 10W AC38 bar
MaxOPD [bar] 20W DC20 bar
MaxOPD [bar] Coil BJ/BX38 bar
MaxOPD [psi] 10W AC550 psi
MaxOPD [psi] 20W DC290 psi
MaxOPD [psi] Coil BJ/BX550 psi
Medium Temperature Range [°C]-40 °C to 105 °C
Medium Temperature Range [°F]-40 °F to 221 °F
Ambient Temperature Range [°C]-40 °C to 80 °C
Ambient Temperature Range [°F]-40 °F to 175 °F
Lubricants CompatibilityAB, PAG, PAO, POE, PVE
CoilNo
Manual Operation OptionNo
Packing FormatMulti-pack
Identical Product032L5098
ApprovalUL, EAC, LLC CDC EURO-TYSK
PED CategoryArt. 4, par. 3
REACH Candidate List SubstancesLead (CAS no. 7439-92-1)
Refrigerants                                                                                                                     R1234yf, R125, R134a, R152a, R22, R290, R32, R404A, R407A, R407C, R407F, R410A, R417A, R448A, R449A, R450A, R452A, R600, R600a, R513A, R452B, R454B, R1234ze(E), R407H, R413A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R449B, R454C, R455A, R463A, R512A, R513A, R513B, R515A, R515B, R516A, R454A, R507A
SCIP Dossier No.f5d8f281-1004-4fb6-9f5a-6febaff329a2
SCIP Dossier Product NameElectric control valve coil(8)
ServiceableSolenoid Valve Spare Parts
TypeEVR 10
Type DesignationSolenoid Valve, Solder
UL Approved RefrigerantsR125, R134a, R152a, R22, R404A, R407A, R407C, R407F, R407H, R410A, R413A, R417A, R422A, R422B, R422D, R438A, R442A, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R455A, R463A, R507A, R512A, R513A, R513B, R515A, R515B, R516A, R290, R600, R600a
Valve OperationServo-diaphragm



Additional Informations
  • Contact us for more information
    Our sales team will provide you with information and suggestion for selecting the right item.
